Product Description:

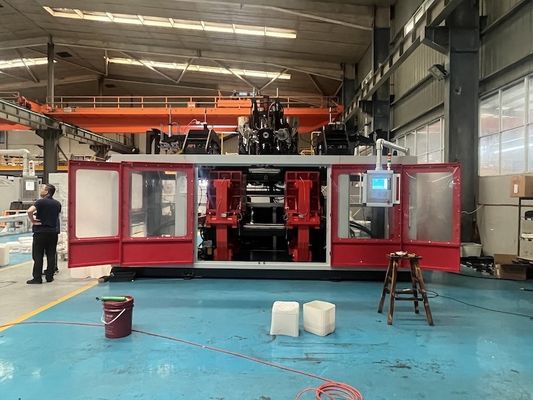

MP plastic blow molding machine is designed for processing a wide range of plastic hollow items with high molecular weight. This specialized machine is capable of manufacturing hollow products ranging from 5 milliliters to 100 liters. The items that can be produced include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
The MP plastic blow molding machine not only accommodates various materials like PE, PP, PVC, PA, PC, PS, and EVA, but also ensures a flawless manufacturing process. This versatile machine caters to the production of different types of hollow plastic products, meeting a variety of industry needs and requirements.
Features:
a) The extruding device utilizes a variable frequency motor to meet the rotational requirements of the screw during the blowing process. With a high slenderness ratio, the screw can process a variety of materials efficiently, boasting strong plasticizing capability, high production output, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.
b) The combined extrusion system between two extrusion machines allows for the installation of different heads to produce products with a clear strip line or double layers.
c) The mould clamping device employs a toggle type and linear guider. It is designed as a double station, enabling faster and more stable movement of the mould platen.
d) The hydraulic oil loop design has been improved for power saving, providing rapid and stable operation.
e) The installation and maintenance of hydraulic elements are made convenient, with a removable and mobilizable oil tank included.
f) The entire machine is computer-controlled, featuring a hydraulic system with double proportional control. It offers fault automatic alarm, reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.
g) Three operation modes - "Manual," "Semi Auto," and "Full Auto" - are available for selection.
h) The safety door is equipped with both electric and mechanical safety devices to prevent mould closing when the door is open, ensuring safe and reliable operation.
i) This machine supports two blowing functions: straight cutting and oblique cutting.
j) Oblique blowing function
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion molding machines play a crucial role in manufacturing by producing continuous profiles with consistent cross-sections. They find widespread use in various industries for different applications:
Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
Pharmaceutical Industry
- Drug Delivery Systems – Extruded tablets and biodegradable implants.
- Medical Tubing – Catheters and IV tubes.
Construction & Building Materials
- Decking & Fencing – Composite wood-plastic profiles.
- Insulation Materials – Foam boards and weather stripping.
- Aluminum Extrusions – Structural frames, railings, and heat sinks.
Automotive & Aerospace
- Lightweight Components – Plastic and composite trim parts.
- Rubber & Plastic Seals – Door seals, gaskets, and vibration dampers.
- Fuel Lines & Ducts – High-temperature-resistant tubing.
Recycling & Sustainability
- Recycled Plastic Products – Turning post-consumer plastics into new profiles.
- Biodegradable Materials – Extruding PLA (polylactic acid) for eco-friendly packaging.
Advantages of Extrusion Molding
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name of the Extrusion Molding Machine is MEPER.
Q: Where is the Extrusion Molding Machine manufactured?
A: The Extrusion Molding Machine is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: The Extrusion Molding Machine is CE/ISO9001:2008 certified.
Q: What is the minimum order quantity for the Extrusion Molding Machine?
A: The minimum order quantity for the Extrusion Molding Machine is 1 set.
Q: What are the accepted payment terms for purchasing the Extrusion Molding Machine?
A: The accepted payment terms for purchasing the Extrusion Molding Machine are L/C and T/T.
