| Container Capacity: | 10ML-4L | Applicable Material: | HDPE LDPE PP PETG PVC PC PA EVOH EPET |
|---|---|---|---|
| Station: | Single Station Or Double Station Optional | Dry Cycle: | 7 Sec. |
| Product: | Baby Toy Ball Or Ocean Ball | Speed: | High |
| High Light: | automatic blow moulding machine,plastic blow moulding machine |
||

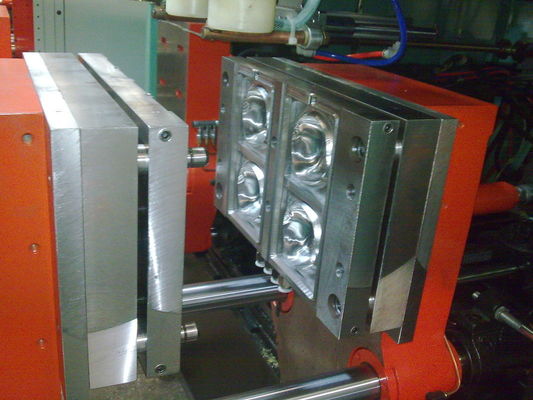

Baby toy ball or ocean ball LDPE or HDPE Blow Molding Machine high speed
| MP70D Double station blow molder with horizontal linear mould shuttle | ||||
| Length: | 3600mm |
|
||
| Width: | 2200mm | |||
| Height | 2360mm | |||
| Key Data | MP70D | |||
| mm | ||||
| Linear mould stroke | A | 450 | ||
| Mould Width | B | 430 | ||
| Mould Length | C | 350 | ||
| Mould Thickness | D | 190 | ||
| Opening Stroke | E | 290 | ||
| Platen daylight | D+E | 480 | ||
| Clamping Force | 75kN | |||
| Dry Cycle | 7 sec. | |||
| Centre Distance | 2x2 fold | 160 | ||
| 2x3 fold | 120 | |||
| 2x4 fold | 100 | |||
| 2x6 fold | 60 | |||
| Extruder | φ70 | φ75 | φ80 | |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| Energy Requirements | ||||
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling Requirements | ||||
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
| OPTIONAL FUNCTION |
| COLD CUTTER |
| DEFLESHING SYSTEM(MACHINE SYSTEM+STEEL BACK PLATEN AND PNEUATIC CYLINDER) |
| HYDRAULIC DEFLESHING SYSTEM |
| BOTTLE ROTATION TOP CUT OFFLINE |
| BLADE NECK ROTATION CUTTING ONLINE INSTALLED/OFF LINE SEPARATE |
| HYDRAULIC FILTER |
| MECHANICAL FILTER |
| LEAK TEST MC ON/OFF LINE |
| ROBOT TAKE OUT |
| IML(IN MOULD LABELING SYSTEM) |
| 2 YEAR SPARE PARTS WARRANTY |
| SCRAP MATERIAL CONVENYOR |
| BOTTLE CONVENYOR AROUND THE MACHINE OR CUSTOM DESIGN |
| POST COOLING SYSTEM |
| SIDE WATER REGUAR 12IN-12OUT WITH FLOW CONTROL |
| PARISON CONTROL SYSTEM MOOG 100PTS |
| SPECIAL SCREW AND BARREL FOR SPECIAL MATERIAL |
| SPECIAL PROGRA FOR SPECIAL PRODUCTS AND MOULD DESIGN |
|
LOADING DEVICE,MASTER BATH MIXING DEVICE |
