Product Description:

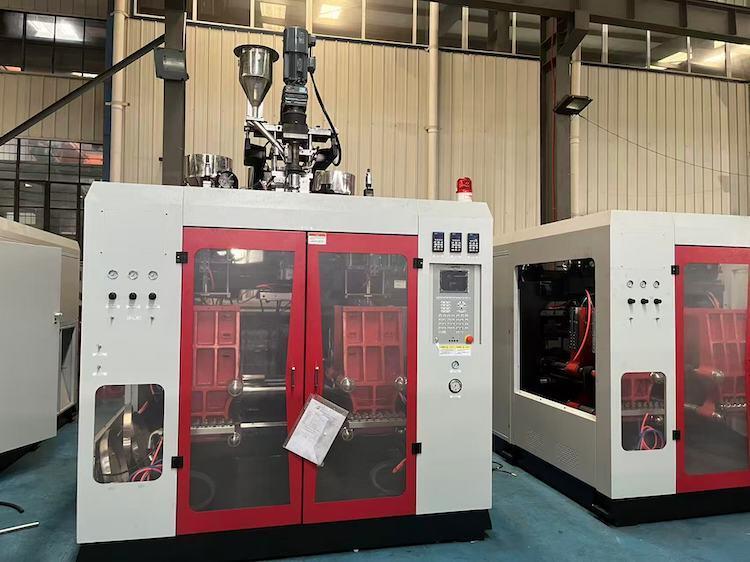

The MP70FS Heavy-Duty Tool Box Blow Molding Machine is engineered to be a robust and dependable solution for the ongoing production of durable, double-walled industrial carry cases, toys, and protective covers. Its design ensures consistent performance even under demanding manufacturing conditions.
This machine is equipped with a high clamping rigidity mechanism, which enhances the stability and precision of the molding process. Additionally, it includes automated pinch-off trimming blades, simplifying the handling of recycled engineering polymer blends and improving overall efficiency.
With the MP70FS, manufacturers can expect outstanding parting-line weld strength, ensuring that the finished products maintain their structural integrity. Moreover, the molded items exhibit superior impact resistance, passing rigorous drop-test standards with ease, making this machine ideal for producing tough and reliable industrial components.
Features:
1.1.2 Features
The extruding device is equipped with a variable frequency motor, which meets the requirements for screw rotation changes during the blowing process. It utilizes a screw with a large slenderness ratio, capable of processing a wide range of materials. This design offers strong plasticizing ability, high productivity, and low energy consumption. Additionally, the barrel employs a resistance heater controlled by a computer, ensuring rapid, stable, and uniform heating.
By installing different heads within the combined extrusion system situated between two extrusion machines, it is possible to produce products featuring visible strip lines or double layers. This flexibility allows for diverse product fabrication based on specific needs.
The mould clamping device incorporates a toggle type mechanism along with a linear guider. Featuring a double station design, the mould platen moves faster and more steadily, enhancing the efficiency and stability of the moulding process.
The hydraulic oil loop has been improved to deliver power saving, rapid response, and stability. Furthermore, installation and maintenance of hydraulic components are made convenient by equipping the machine with a removable and mobile oil tank.
The entire machine is controlled via a computer system. The hydraulic system uses double proportional control, ensuring reliable operation. This advanced system includes automatic fault alarms, high levels of automation, and memory storage for up to 40 sets of mould data.
Operators can choose from three modes of operation: “Manual," “Semi-Auto," and “Full Auto," providing flexibility to suit different production requirements and user preferences.
For safety, the machine features a safety door equipped with both electrical and mechanical safety devices. This prevents the mould from closing when the safety door is open, making operations safer and more reliable.
Additionally, the machine includes an oblique blowing function, expanding its versatility in the blowing process.
Technical Parameters:
Major Technical Parameters
Basic Specifications
System Overview | Item | Unit | Basic Parameter |
| Applicable Materials | | PE, PP, PVC, PA, etc. |
| Maximum Product Volume | L | 10 |
| Number of Heads | Set | 1, 2, 3, 4 |
| Machine Dimensions (L x W x H) | m | 3.7 * 3 * 2.5 |
| Machine Weight | Ton | 8 |
Mould Clamping System
| Mould Clamping Force | kN | 150 |
| Platen Opening Stroke | mm | 240 - 600 |
| Plate Stroke | mm | 360 |
| Maximum Mould Size (W x H) | mm | 500 * 360 |
Extrusion System
| Screw Diameter | mm | 70 |
| Screw Slenderness Ratio (L/D) | | 24 |
| Plasticizing Capacity (HDPE) | kg/h | 90 |
| Number of Screw Heating Zones | Zone | 3 |
| Screw Heating Power | kW | 12 |
| Screw Fan Power | kW | 0.28 |
| Extrusion Motor Power | kW | 18.5 |
| Head Heating Zones | Zone | 10 |
| Head Heating Power | kW | 16.5 |
| Maximum Extrusion Gate Mould Diameter | mm | 3 |
Energy Consumption
| Total Machine Power | kW | 70 |
| Oil Motor Power | kW | 15 |
| Air Pressure | MPa | 0.6 - 0.8 |
| Average Energy Consumption | kW | 1.5 |
| Compressed Air Volume | m³/h | 50 |
| Cooling Water Volume | m³/h | 55.5 |
Applications:
Preventive plant maintenance plays a crucial role in ensuring the smooth operation of plastic molding factories. Implementing essential routine servicing checklists helps to identify potential issues early, reducing downtime and maintaining consistent production quality.
On-site engineering standard operating procedures (SOPs) serve as official training manuals for technical adjusters and line operators. These guides provide detailed instructions to ensure that all personnel perform their tasks consistently and efficiently, enhancing overall operational safety and productivity.
Effective equipment lifecycle management is vital for maximizing the longevity of heavy-duty machinery such as extrusion screws and hydraulic pump systems. By applying proper maintenance strategies and monitoring system performance, factories can extend the operational life of their critical equipment and optimize return on investment.
FAQ:
Q1: What is the brand and model number of the Plastic Bottle Blow Molding Machine?
A1: The machine is branded MEPER and the model number is MP70FS.
Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?
A2: It is manufactured in China.
Q3: What certifications does the MP70FS machine have?
A3: The machine is certified with CE and ISO9001:2008.
Q4: What is the minimum order quantity and pricing for the MP70FS?
A4: The minimum order quantity is 1 set and the price is negotiable.
Q5: What are the payment terms and delivery time for the Plastic Bottle Blow Molding Machine?
A5: Payment terms include L/C and T/T. The delivery time is typically 25-35 work days.
Q6: How is the product packaged for shipment?
A6: The machine is packed in a standard export package, with an optional wooden pellet or wooden case for additional protection.
Q7: What is the supply capacity of MEPER for the MP70FS model?
A7: MEPER can supply up to 100 sets per month.
