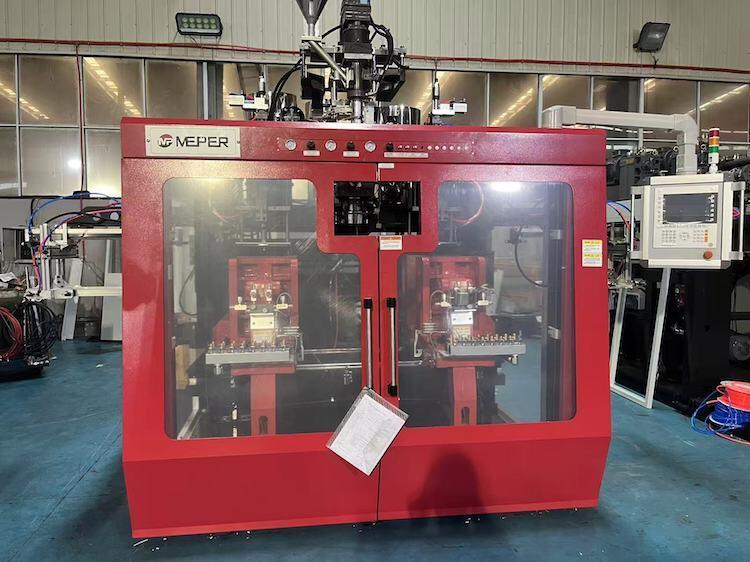

MP70FS Automatic EBM Machine With Interlocked Mechanical Safety Door

Product Description:

The MP70FS Heavy-Duty Tool Box Blow Molding Machine is engineered as a robust and dependable solution designed for nonstop production. It specializes in the creation of durable, double-walled industrial carry cases, toys, and protective enclosures, ensuring high-quality output in demanding manufacturing environments.

Equipped with superior clamping rigidity, the machine guarantees stable and precise molding operations. Additionally, it features automated pinch-off trimming blades, which streamline the finishing process, enhancing efficiency and reducing manual labor requirements.

This blow molding system is also optimized to handle recycled engineering polymer blends with ease. By doing so, it delivers products with exceptional parting-line weld strength and outstanding impact resistance during drop tests, making it ideal for producing reliable and long-lasting components.

Features:

The extruding device is equipped with a variable frequency motor, enabling it to accommodate the rotational speed changes of the screw during the blowing process. A screw with a high slenderness ratio is utilized, which allows processing of various materials efficiently. This design provides strong plasticizing capability, high production output, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring rapid, stable, and uniform heating.

By installing different heads within the combined extrusion system situated between two extrusion machines, it becomes possible to produce blown products with visible strip lines or in double layers. This flexibility enhances the range of possible product designs.

The mould clamping mechanism uses a toggle type system combined with a linear guide. Featuring a double station setup, the mould platen moves at increased speed with improved stability, contributing to efficient and reliable operation.

The hydraulic oil circuit has been improved to enhance power saving, speed, and stability. Additionally, the installation and maintenance of hydraulic components are made more convenient due to the inclusion of a removable and mobile oil tank.

The entire machine is computer-controlled, with the hydraulic system implementing double proportional control. This ensures reliable operation with automatic fault alarms. The system supports high automation levels and can store data for up to 40 sets of moulds.

Operators can choose among three different modes of operation: "Manual," "Semi Auto," and "Full Auto," providing flexibility to match various production needs.

Safety is prioritized through an electric and mechanical safety door device. This mechanism prevents the mould from closing when the safety door is open, ensuring safe and dependable operation.

Additionally, the machine is equipped with an oblique blowing function, further enhancing its versatility.

Technical Parameters:

The system is applicable for materials such as PE, PP, PVC, PA, and others. It supports a maximum product volume of 10 liters. The machine can be equipped with 1, 2, 3, or 4 heads depending on the requirements.

The overall dimensions of the machine are 3.7 meters in length, 3 meters in width, and 2.5 meters in height. The total weight of the machine is approximately 8 tons.

The mould clamping force is rated at 150 KN, providing strong and reliable clamping during the production process. The platen opening stroke ranges from 240 mm to 600 mm, while the plate stroke is 360 mm. Additionally, the maximum mould size supported is 500 mm in width by 360 mm in height.

The extrusion system features a screw with a diameter of 70 mm and a slenderness ratio (L/D) of 24. It has a plasticizing capacity of 90 kg/h when processing HDPE. The screw contains three heating zones, consuming 12 kW of power, and is cooled by a fan rated at 0.28 kW.

The motor driving the extrusion screw operates at 18.5 kW. The extrusion head comprises 10 heating zones with a total power consumption of 16.5 kW. The maximum diameter for the extrusion gate mould is 3 mm.

The entire machine operates with a total power of 70 kW. The oil motor uses 15 kW, while the average energy consumption is approximately 1.5 kW. The required air pressure ranges between 0.6 and 0.8 MPa. Compressed air consumption is 50 cubic meters per hour, and cooling water usage is 55.5 cubic meters per hour.

Applications:

Implementing routine servicing checklists is crucial for plastic molding factories. Regular preventive maintenance ensures that machinery operates smoothly and reduces the risk of unexpected breakdowns, thereby enhancing overall productivity.

Comprehensive training guides are provided for technical adjusters and line operators to follow official on-site engineering procedures. These SOPs help maintain consistency in operations and improve the quality of workmanship across the production line.

Proper management techniques are essential to extend the operational lifespan of critical components such as heavy-duty extrusion screws and hydraulic pump systems. By adopting effective lifecycle strategies, factories can optimize performance and reduce maintenance costs.

FAQ:

Q1: What is the brand and model number of this Plastic Bottle Blow Molding Machine?

A1: The machine is branded MEPER and the model number is MP70FS.

Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?

A2: This machine is made in China.

Q3: What certifications does the MP70FS machine have?

A3: The machine is certified with CE and ISO9001:2008 standards.

Q4: What is the minimum order quantity and price for the MP70FS?

A4: The minimum order quantity is 1 set, and the price is negotiable.

Q5: What are the packaging and delivery details for the machine?

A5: The machine is packed in a standard export package with an optional wooden pellet or wooden case. Delivery time ranges from 25 to 35 work days.

Q6: What payment terms does MEPER accept for the MP70FS machine?

A6: Payment can be made via L/C (Letter of Credit) or T/T (Telegraphic Transfer).

Q7: What is the supply capacity of the Plastic Bottle Blow Molding Machine MP70FS?

A7: MEPER can supply up to 100 sets per month.
