Product Description:

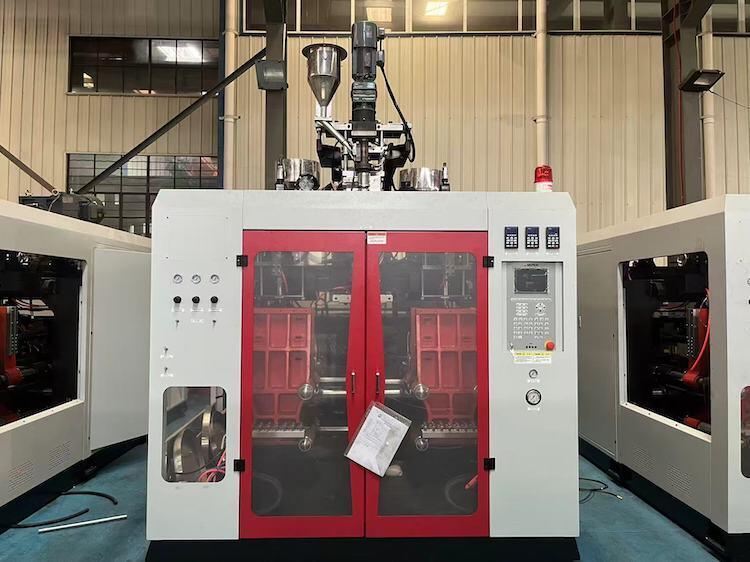

The MP70FS Heavy-Duty Tool Box Blow Molding Machine is designed as a robust and dependable system, ideal for the ongoing production of durable, double-walled industrial carry cases, toys, and protective enclosures. Its construction emphasizes strength and reliability to meet the demands of heavy-duty manufacturing environments.
This machine is equipped with high clamping rigidity, ensuring stable and precise molding operations. Additionally, it includes automated pinch-off trimming blades, which streamline the production process by efficiently removing excess material. These features contribute to enhanced productivity and product quality.
Moreover, the MP70FS is capable of processing recycled engineering polymer blends with ease. This capability not only supports sustainable manufacturing practices but also results in products with excellent parting-line weld strength. The finished items demonstrate superior durability, performing well in high drop-test impact scenarios.
Features:
1.1.2 Features
The extruding device is equipped with a variable frequency motor, which effectively meets the requirements for changing the screw's rotation speed during the blowing process. It utilizes a screw with a high slenderness ratio, allowing it to handle a wide range of materials. This design offers strong plasticizing capability, high production efficiency, and low energy consumption. Additionally, the barrel features a resistance heater controlled by a computer, enabling rapid, stable, and uniform heating.
By installing different heads within a combined extrusion system situated between two extrusion machines, it becomes possible to produce blown products featuring visible strip lines or double-layer structures. This flexibility enhances the range of product designs achievable with the equipment.
The mould clamping device uses a toggle mechanism along with a linear guide. Featuring a double station design, the mould platen can move more quickly and with greater stability, improving the overall efficiency and precision of mould operations.
An improved hydraulic oil circuit design contributes to power savings, rapid response, and stable performance. The installation and maintenance of hydraulic components are made convenient, as the machine is equipped with a removable and mobile oil tank.
The entire machine is computer-controlled, and the hydraulic system incorporates double proportional control technology. This setup ensures reliable operation, includes an automatic fault alarm system, supports high automation levels, and can store data for up to 40 different moulds.
Operators can choose from three operation modes: “Manual," “Semi Auto," and “Full Auto," providing flexibility to adapt to different production needs and preferences.
For safety, the door is equipped with both electric and mechanical safety devices, preventing mould closure when the safety door is open. This feature ensures that the operation remains safe and reliable at all times.
Additionally, the machine offers an oblique blowing function, further enhancing its versatility in blowing applications.
Technical Parameters:
Major Technical Parameters
Basic Specifications
System Overview | Item | Unit | Basic Parameter |
| Applicable Materials | | PE, PP, PVC, PA, and others |
| Maximum Product Volume | L | 10 |
| Number of Heads | Set | 1, 2, 3, 4 |
| Machine Dimension (L*W*H) | m | 3.7 * 3 * 2.5 |
| Machine Weight | tons | 8 |
Mould Clamping System
Clamping Specifications | Item | Unit | Parameter |
| Mould Clamping Force | kN | 150 |
| Platen Opening Stroke | mm | 240 - 600 |
| Plate Stroke | mm | 360 |
| Maximum Mould Size (W*H) | mm | 500 * 360 |
Extrusion System
Extrusion Specifications | Item | Unit | Parameter |
| Screw Diameter | mm | 70 |
| Screw Slenderness Ratio (L/D) | | 24 |
| Plasticizing Capacity (HDPE) | kg/h | 90 |
| Screw Heating Zones | zones | 3 |
| Screw Heating Power | kW | 12 |
| Screw Fan Power | kW | 0.28 |
| Extrusion Motor Power | kW | 18.5 |
| Head Heating Zones | zones | 10 |
| Head Heating Power | kW | 16.5 |
| Maximum Extrusion Gate Mould Diameter | mm | 3 |
Energy Consumption
Power and Resource Usage | Item | Unit | Value |
| Total Machine Power | kW | 70 |
| Oil Motor Power | kW | 15 |
| Air Pressure | MPa | 0.6 - 0.8 |
| Average Energy Consumption | kW | 1.5 |
| Compressed Air Volume | m³/h | 50 |
| Cooling Water Volume | m³/h | 55.5 |
Applications:
Preventive Plant Maintenance
Performing regular preventive maintenance is crucial for plastic molding factories to ensure smooth operations. Comprehensive servicing checklists help in identifying potential issues before they escalate, thereby minimizing downtime and enhancing productivity.
On-Site Engineering Standard Operating Procedures (SOP)
Detailed SOPs serve as official training manuals for technical adjusters and line operators. These guides provide step-by-step instructions to maintain consistency, safety, and efficiency in day-to-day engineering tasks on the factory floor.
Equipment Lifecycle Management
Proper management of equipment lifecycles plays a vital role in extending the operational lifespan of critical components such as heavy-duty extrusion screws and hydraulic pump systems. Implementing effective maintenance strategies ensures reliability and reduces the need for frequent replacements.
FAQ:
Q1: What is the brand and model number of the Plastic Bottle Blow Molding Machine?
A1: The machine is branded MEPER, and the model number is MP70FS.
Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?
A2: It is manufactured in China.
Q3: What certifications does the MEPER MP70FS machine have?
A3: The machine is certified with CE and ISO9001:2008.
Q4: What is the minimum order quantity and price for the machine?
A4: The minimum order quantity is 1 set, and the price is negotiable.
Q5: What are the packaging and delivery details for this machine?
A5: The machine comes in a standard export package, with an optional wooden pellet wooden case. Delivery time is typically 25-35 work days.
Q6: What payment terms does MEPER accept for the Plastic Bottle Blow Molding Machine?
A6: Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
Q7: What is the supply capacity of the MEPER MP70FS blow molding machine?
A7: MEPER can supply up to 100 sets per month.
