Product Description:

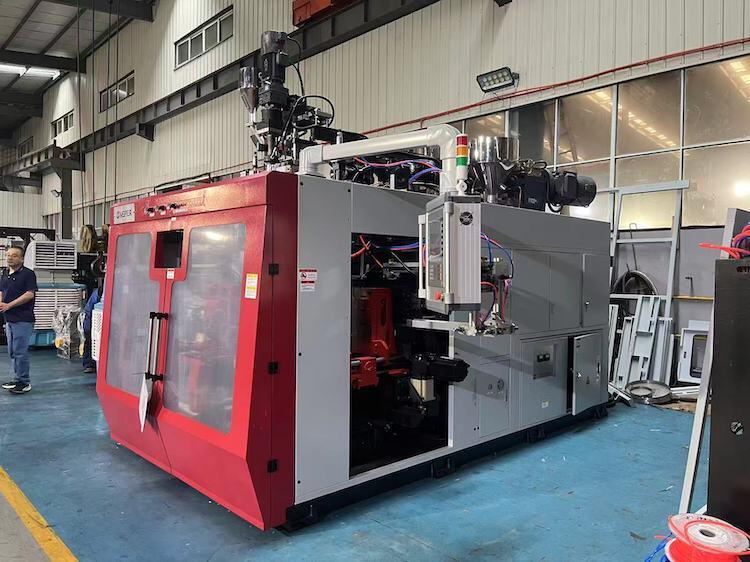

The MP70FS Heavy-Duty Tool Box Blow Molding Machine is engineered to be a durable and dependable solution designed specifically for the ongoing production of robust double-walled industrial carrying cases, toys, and protective housings. Its construction emphasizes strength and longevity, ensuring consistent performance in demanding manufacturing environments.
This machine boasts high clamping rigidity, which contributes to the precision and stability of the molding process. Additionally, it is equipped with automated pinch-off trimming blades that streamline the finishing steps, improving efficiency and reducing manual labor.
One of the key advantages of the MP70FS is its capability to handle recycled engineering polymer blends effectively. This feature not only supports sustainable manufacturing practices but also results in parts with excellent parting-line weld strength. Furthermore, the finished products exhibit superior impact resistance as demonstrated by high drop-test durability, making this machine an ideal choice for producing tough, long-lasting components.
Features:
1.1.2 Features
The extruding device is equipped with a variable frequency motor that meets the rotational speed requirements of the screw during the blowing process. The screw, featuring a high slenderness ratio, is capable of processing a wide range of materials. It boasts strong plasticizing capabilities, high productivity, and low energy consumption. Additionally, the barrel utilizes a resistance heater controlled by a computer, ensuring rapid, stable, and uniform heating.
By installing different heads in the combined extrusion system between two extrusion machines, the equipment can produce blown products with visible strip lines or double layers, enhancing product versatility.
The mould clamping device employs a toggle type mechanism along with a linear guide. Featuring a double station design, the mould platen moves at higher speeds with enhanced stability, increasing overall efficiency.
The hydraulic oil circuit has been improved for power saving, rapid response, and stability. Furthermore, the installation and maintenance of hydraulic components are made convenient by including a removable and mobilizable oil tank.
The entire machine is controlled by a computer system, with the hydraulic system adopting dual proportional control. The machine includes an automatic fault alarm, reliable operation, high automation levels, and can store data for up to 40 mould sets.
Operators can choose from three different modes of operation: "Manual," "Semi-Auto," and "Full Auto," allowing flexibility depending on production needs.
For safety, the machine integrates both electrical and mechanical safety devices on the safety door to prevent the mould from closing when the door is open, thereby ensuring safe and reliable operations.
Additionally, the machine includes an oblique blowing function to further expand its range of applications.
Technical Parameters:
Major Technical Parameters
Basic Specifications
The system is suitable for processing various materials including PE, PP, PVC, PA, and others. It can handle a maximum product volume of up to 10 liters. The machine is equipped with 1 to 4 heads, allowing for flexibility in production. Its overall dimensions measure 3.7 meters in length, 3 meters in width, and 2.5 meters in height. The total machine weight is approximately 8 tons.
Mould Clamping System
The mould clamping system features a clamping force of 150 kiloNewtons, ensuring secure and stable molding operations. It has platen opening strokes adjustable between 240 to 600 millimeters, with a plate stroke of 360 millimeters. The maximum mould dimensions it can accommodate are 500 millimeters in width by 360 millimeters in height.
Extrusion System
The extrusion system is equipped with a screw diameter of 70 millimeters and a slenderness ratio (L/D) of 24. It provides a plasticizing capacity of 90 kilograms per hour for HDPE material. The screw heating consists of 3 zones, powered by a 12 kW heater, while the screw fan is powered at 0.28 kW. The extrusion motor delivers 18.5 kW of power.
The extrusion head includes 10 heating zones with a total heating power of 16.5 kW. The maximum diameter for the extrusion gate mould is 3 millimeters, facilitating precise shaping of the extruded products.
Energy Consumption
This machine consumes a total power of 70 kW during operation. The oil motor power amounts to 15 kW. It requires an air pressure ranging between 0.6 to 0.8 MPa for optimal performance. The average energy consumption is about 1.5 kW.
Additionally, the system uses compressed air at a volume of 50 cubic meters per hour and cooling water at 55.5 cubic meters per hour to maintain efficient working conditions.
Applications:
Preventive Plant Maintenance
Conducting regular and thorough maintenance is crucial for the smooth operation of plastic molding factories. Implementing detailed servicing checklists helps ensure that all machinery and equipment are routinely inspected and maintained to prevent unexpected breakdowns and improve overall productivity.
On-Site Engineering Standard Operating Procedures (SOP)
Well-structured SOPs serve as official training manuals designed specifically for technical adjusters and line operators. These guides provide step-by-step instructions to standardize tasks, improve safety, and enhance the efficiency of on-site engineering operations.
Equipment Lifecycle Management
Effective lifecycle management strategies are essential to maximize the usability and performance of critical components such as heavy-duty extrusion screws and hydraulic pump systems. By extending the operational life of these key pieces of equipment, factories can reduce downtime and optimize maintenance costs.
FAQ:
Q1: What is the brand and model number of this Plastic Bottle Blow Molding Machine?
A1: The machine is branded MEPER and the model number is MP70FS.
Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?
A2: This machine is manufactured in China.
Q3: What certifications does the MP70FS Plastic Bottle Blow Molding Machine have?
A3: The machine is certified with CE and ISO9001:2008 standards.
Q4: What is the minimum order quantity and pricing for this machine?
A4: The minimum order quantity is 1 set, and the price is negotiable.
Q5: What are the packaging and delivery details for this product?
A5: The machine is packed in a standard export package with an optional wooden pellet or wooden case, and the delivery time is 25-35 work days.
Q6: What are the payment terms and supply capacity for the MP70FS?
A6: Payment can be made via L/C or T/T, and the supply ability is 100 sets per month.
