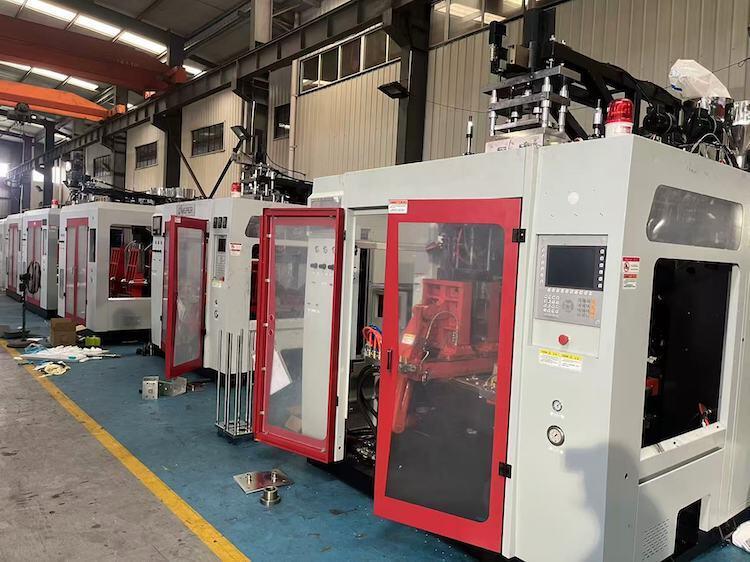

10L Industrial Plastic Barrel Blow Molding Machine

10L Industrial Plastic Barrel Blow Molding Machine
10L Industrial Plastic Barrel Blow Molding Machine

Large Image :  10L Industrial Plastic Barrel Blow Molding Machine

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP70FS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Voltage: 380V ± 10% (50Hz) Max Oil Pressure: 14 MPa (140 Kgf/cm²)
Control System: Centralized Microcomputer Extrusion Motor: Variable Frequency Motor
Molding Method: Blow Molding Hydraulic Control: Double Proportional Valve (PQ)

MP70FS Bottle Blowing Machinery
Product Overview
The MP70FS represents a top-tier industrial-grade extrusion blow molding machine, equipped with dual stations to optimize productivity. It is specifically designed for the efficient and continuous production of hollow plastic products, making it a reliable choice for demanding manufacturing environments.
Powered by an energy-efficient hydraulic system and controlled through an advanced dynamic microcomputer, the MP70FS ensures outstanding cycle speeds and consistently uniform parison wall thickness. These features contribute to high-quality output and process stability throughout production runs.
In addition to performance, operator safety is a key focus of the MP70FS's design, offering exceptional protection measures. This machine stands as the ultimate solution for smart factories aiming to enhance throughput while minimizing operational costs and energy consumption.
Key Features
  • High-Speed Double Station Shuttle Clamping: Robust toggle-clamping framework with high-quality linear guides ensures remarkable stability and speed, significantly reducing dry cycle times.
  • Intelligent Fluid Loop for Power Saving: V4 dual pump with electro-hydraulic proportional overflow speed regulating valve reduces electrical consumption and thermal stress.
  • Precise Flashing Control: Specialized liquid control one-way valve eliminates part flashes and enhances parting line quality.
  • Smart Anti-Cold-Start Screw Safeguard: Electronic interlock prevents screw rotation until all heating zones achieve set temperatures.
  • Multi-Die Head Versatility: Supports triple-head and multi-cavity co-extrusion crossheads with streamlined melt path design.
  • Clean Parison Hot Knife Shearing: Pneumatic hot cutter blade slices through polymer parisons quickly and cleanly.
  • Automated Calibration: Advanced down-blowing process guarantees perfectly flat and burr-free sealing surfaces.
  • Category-4 Safety Door Interlocking: Dual limit sensors and mechanical stroke switches provide reliable fail-safe protection.
Technical Specifications
Parameter Category Specifications
Applicable Materials PE, PP, PVC, PA, and others
Maximum Product Volume 10 liters
Number of Heads Available in 1, 2, 3, or 4 sets
Machine Dimensions (L*W*H) 3.7 * 3 * 2.5 meters
Machine Weight 8 tons
Mould Clamping Force 150 KN
Platen Opening Stroke 240 to 600 mm
Screw Diameter 70 mm
Screw Slenderness Ratio (L/D) 24
Plasticizing Ability (HDPE) 90 kg/h
Total Machine Power 70 KW
Average Energy Consumption 1.5 KW
Cooling Water Volume 55.5 cubic meters per hour
Applications
The MP70FS machine provides exceptional versatility in processing various polyolefin resins, including PE, PP, PVC, PA, PC, PS, and EVA. It is capable of manufacturing structural and high-strength components tailored to diverse industry requirements.
FMCG & Cosmetic Packaging: High-speed multi-cavity molding for personal care containers such as bottles, jars, and pots.
Industrial Oils & Chemicals: Precise molding of robust items like lubricant jugs, agrochemical pots, and stackable chemical barrels.
Commercial Hardware & Cases: Manufacturing high-impact, double-walled blow-molded power tool cases and rigid enclosures.
Automotive Sub-Systems: Production of impermeable polyamide (PA) components such as air ducts, vehicle expansion tanks, and structural panels.
