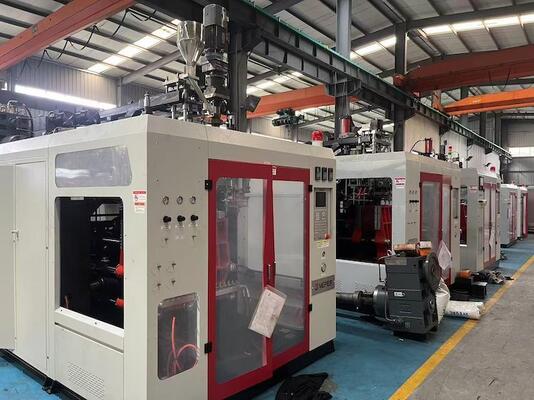

HDPE Industrial Bottle Extrusion Blow Molding Machine with Double Station Toggle Clamping and Centralized Microcomputer Control

HDPE Industrial Bottle Extrusion Blow Molding Machine with Double Station Toggle Clamping and Centralized Microcomputer Control
HDPE Industrial Bottle Extrusion Blow Molding Machine with Double Station Toggle Clamping and Centralized Microcomputer Control HDPE Industrial Bottle Extrusion Blow Molding Machine with Double Station Toggle Clamping and Centralized Microcomputer Control

Large Image :  HDPE Industrial Bottle Extrusion Blow Molding Machine with Double Station Toggle Clamping and Centralized Microcomputer Control

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP70FS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Detailed Product Description
Voltage: 380V ± 10% (50Hz) Control System: Centralized Microcomputer
Blowing Function: Straight & Oblique Cutting Hydraulic Control: Double Proportional Valve (PQ)
Clamping Type: Double Station Toggle Max Oil Pressure: 14 MPa (140 Kgf/cm²)

HDPE Industrial Bottle Extrusion Blow Molding Machine
Product Overview

The MP70FS represents the pinnacle of industrial-grade blow molding technology as a flagship double station extrusion machine. Designed specifically for the efficient production of hollow plastic products, it excels in delivering consistent, high-quality output suitable for demanding manufacturing environments.

Powered by an energy-efficient hydraulic system, the MP70FS optimizes power consumption without compromising performance. Its operations are precisely controlled through an advanced dynamic microcomputer, ensuring seamless process management and enhanced product uniformity, particularly in maintaining consistent parison wall thickness.

Safety is a top priority with the MP70FS, featuring robust protective measures that ensure exceptional operator protection. This machine stands out as the ideal solution for smart factories aiming to increase production throughput while simultaneously minimizing overall operational expenses.

Core Features & Advantages
  • High-Speed Double Station Shuttle Clamping
    Constructed with a robust toggle-clamping framework and top-quality linear guides, the mold platens move with remarkable stability and speed. This dual-station setup effectively reduces dry cycle times, enabling automatic take-out lines to reach unparalleled daily production rates.
  • Intelligent Fluid Loop for Power Saving
    The hydraulic system integrates a V4 dual pump alongside an electro-hydraulic proportional overflow speed regulating valve (PQ Valve). For high-speed operations, both pumps work together to provide necessary flow. During low-speed, high-pressure locking phases, the large pump unloads, significantly reducing electricity consumption and minimizing thermal stress on the fluid.
  • Precise Flashing Control (Zero-Drift Clamping)
    To prevent mold deformation under high-pressure inflation, a specialized liquid control one-way valve (V12) is installed within the clamping cylinders. This feature hydraulically locks the circuit immediately after closing, eliminating part flashing and greatly enhancing the appearance of parting lines.
  • Smart Anti-Cold-Start Screw Safeguard
    The frequency-converter extrusion drive is electronically interlocked with multi-zone barrel heaters. The screw remains stationary until all heating zones fully reach their designated processing temperatures, thereby safeguarding the screw assembly from damage caused by unmelted plastic blockages.
  • Multi-Die Head Versatility with No Dead Angles
    This system supports customized triple-head and multi-cavity co-extrusion crossheads. Its internal melt path incorporates a streamlined diffluence shuttle that eliminates polymer stagnation points (dead angles), preventing defects such as dark spots or longitudinal stripes on the parison.
  • Clean Parison Hot Knife Shearing
    Equipped with a pneumatic hot cutter blade, heated by low-voltage, high-strength current supplied via an isolated transformer, it cleanly and instantly slices through resilient polymer parisons. This mechanism prevents tube collapse and avoids layer smearing during cutting.
  • Automated Calibration with Smooth Neck Finish
    Employing an advanced down-blowing technique, the blow pin tip and mold neck ring automatically trim and calibrate the container neck throughout the inflation cycle. This process ensures a perfectly flat, burr-free sealing surface that is ready for subsequent filling on the production line.
  • Category-4 Safety Door Interlocking Network
    Operator safety is guaranteed through dual limit sensors and mechanical stroke switch loops integrated within the safety guards. Opening the door instantly triggers an automatic fault alarm and interrupts the output circuit to the clamping rams, offering reliable fail-safe protection.
Technical Specifications
Basic System Parameters
Key Parameters of the SystemSpecifications
Applicable MaterialsPE, PP, PVC, PA, and others
Maximum Product Volume10 Liters
Number of Heads1, 2, 3, or 4
Machine Dimensions (L × W × H)3.7 × 3 × 2.5 meters
Machine Weight8 Tons
Mould Clamping System
Specifications Related to Mould ClampingValues
Mould Clamping Force150 kN
Platen Opening Stroke240 - 600 mm
Plate Stroke360 mm
Maximum Mould Size (W × H)500 × 360 mm
Extrusion System
Extruder and Head DetailsSpecifications
Screw Diameter70 mm
Screw Slenderness Ratio (L/D)24
Plasticizing Ability (HDPE)90 kg/h
Screw Heating Stages / Zones3 Zones
Screw Heating Power12 kW
Screw Fan Power0.28 kW
Extrusion Motor Power18.5 kW
Head Heating Stages / Zones10 Zones
Head Heating Power16.5 kW
Maximum Extrusion Gate Mould Diameter3 mm
Energy Consumption
Power and Resource UsageSpecifications
Total Machine Power70 kW
Oil Motor Power15 kW
Air Pressure0.6 - 0.8 MPa
Average Energy Consumption1.5 kW
Compressed Air Volume50 m³/h
Cooling Water Volume55.5 m³/h
Applications

The MP70FS machine delivers unparalleled flexibility in processing a wide range of polyolefin materials. It is capable of handling various resins such as PE, PP, PVC, PA, PC, PS, and EVA. This versatility enables the production of structural and high-strength components suitable for numerous applications.

  • FMCG & Cosmetic Packaging: High-speed multi-cavity molding for personal care items including bottles, jars, and pots
  • Industrial Oils & Chemicals: Precision molding for durable products including lubricant jugs, agrochemical pots, and stackable chemical barrels
  • Commercial Hardware: Production of high-impact, double-walled blow-molded cases for power tools and rigid consumer product enclosures
  • Automotive Components: Manufacturing of impermeable polyamide (PA) components such as air ducts, vehicle expansion tanks, and structural panels
