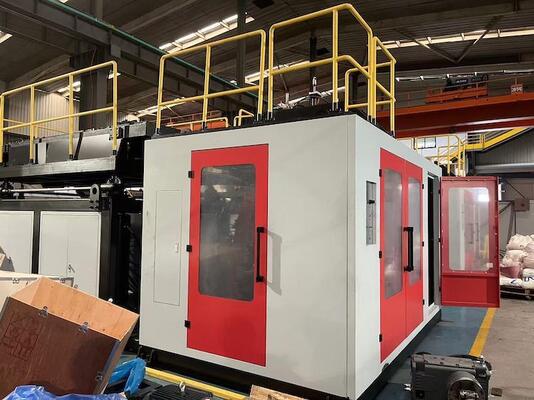

Automated Extrusion Blow Molding Machine with Double Station Toggle, 70 kW Total Power, and 40 Sets Of Moulds

The MP70FS stands as a premier industrial-grade extrusion blow molding machine, designed with dual stations to optimize high-efficiency production of plastic hollow products. Its advanced engineering ensures continuous operation, meeting the rigorous demands of modern manufacturing environments.

Powered by an energy-efficient hydraulic system and precisely controlled through a dynamic microcomputer, the MP70FS achieves impressive cycle speeds while maintaining consistent parison wall thickness. This combination results in superior product quality and reliability throughout the production process.

Safety is a paramount feature of the MP70FS, offering outstanding protection for operators during use. As the ultimate manufacturing solution, it perfectly aligns with the goals of smart factories aiming to maximize throughput and minimize overall operational expenses.

• High-Speed Double Station Shuttle Clamping: Engineered with a robust toggle-clamping framework and high-quality linear guides, ensuring remarkable stability and speed. The innovative double-station shuttle design significantly reduces dry cycle times, enabling unparalleled daily production capacity.
• Intelligent Fluid Loop for Power Saving: Hydraulic system integrates V4 dual pump with electro-hydraulic proportional overflow speed regulating valve. During rapid movements, both pumps deliver optimal flow, while during low-speed locking, the large pump disengages to reduce electricity consumption and thermal stress.
• Precise Flashing Control (Zero-Drift Clamping): Specialized liquid control one-way valve embedded within clamping cylinders hydraulically locks the circuit after mold closure, effectively eliminating part flashes and enhancing parting line aesthetics.
• Smart Anti-Cold-Start Screw Safeguard: Extrusion drive with frequency changer is electronically interlocked with barrel heating zones. Screw rotation is prohibited until all heating zones reach designated processing temperature, protecting against damage from unmelted plastic.
• Multi-Die Head Versatility with No Dead Angles: Supports custom triple-head and multi-cavity co-extrusion crossheads. Streamlined diffluence shuttle eliminates polymer dead spots, preventing dark marks or longitudinal stripes on parison surface.
• Clean Parison Hot Knife Shearing: Equipped with pneumatic hot knife blade heated by low-voltage, high-strength current from isolated transformer. Provides clean, instant slicing through tough polymer parisons, preventing tube collapse and layer smearing.
• Automated Calibration with Smooth Neck Finish: Utilizes advanced down-blowing technique where blow pin tip and mold neck ring automatically trim and calibrate container neck during inflation cycle. Results in perfectly flat, burr-free sealing surfaces ready for post-line filling.
• Category-4 Safety Door Interlocking Network: Dual limit sensors and mechanical stroke switch loops integrated within safety guards. When door opens, automatic fault alarm activates and clamping ram output circuit immediately interrupts for fail-safe operator protection.

• Versatile Material Processing: Efficiently handles PE, PP, PVC, PA, PC, PS, and EVA materials for production of structural and high-strength components.
• FMCG & Cosmetic Packaging: Excels in high-speed multi-cavity molding for personal care items like bottles, jars, and pots with precision and consistency.
• Industrial Oils & Chemicals: Provides accurate molding solutions for robust lubricant containers, agrochemical pots, and stackable chemical barrels.
• Commercial Hardware & Cases: Produces high-impact, double-walled blow-molded power tool cases and sturdy enclosures for consumer products.
• Automotive Components: Creates impermeable polyamide (PA) components including air ducts, vehicle expansion tanks, and structural panels meeting rigorous automotive standards.
