Product Description:

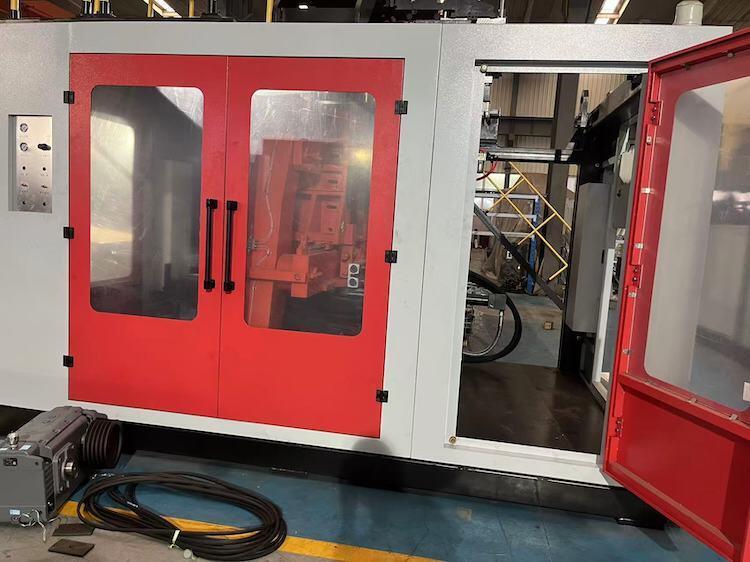

The MP70FS stands as a flagship model in the realm of industrial-grade extrusion blow molding machines. Designed with dual stations, it is specifically engineered to enable the high-efficiency production of hollow plastic products through a continuous manufacturing process.
Powered by an energy-efficient hydraulic system and controlled by an advanced dynamic microcomputer, the MP70FS ensures consistent and superior performance. This combination allows for faster cycle times, uniform distribution of parison wall thickness, and enhances overall operator safety during operation.
As a leading solution tailored for smart factories, the MP70FS serves as the ultimate manufacturing platform. It is ideal for businesses aiming to maximize production throughput while simultaneously minimizing total operational expenses.
Features:
Core Product Advantages & Features
1. High-Speed Double Station Shuttle Clamping
Featuring a durable toggle-clamping structure paired with high-quality linear guides, the mold platens move with outstanding stability and speed. This innovative double-station design significantly reduces dry cycle times, enabling automatic take-out systems to reach unparalleled daily production rates.
2. Intelligent Fluid Loop for Power Saving
The hydraulic system integrates a V4 dual pump alongside an electro-hydraulic proportional overflow valve (PQ Valve) to regulate speed. During fast movements, both pumps work together to provide high flow, while in low-speed, high-pressure locking phases, the larger pump unloads. This strategy effectively decreases electricity usage and reduces thermal stress on the fluid.
3. Precise Flashing Control (Zero-Drift Clamping)
To prevent mold deformation under high-pressure inflation, a specialized one-way liquid control valve (V12) is incorporated within the clamping cylinders. This valve hydraulically locks the circuit after closing, eliminating part flashes and greatly enhancing the appearance of the parting line.
4. Smart Anti-Cold-Start Screw Safeguard
The extrusion drive, controlled by a frequency changer, is electronically linked with multiple barrel heating zones. The screw rotation is inhibited until all heating areas reach the necessary processing temperatures, providing complete protection against damage caused by unmelted plastic blockages.
5. Multi-Die Head Versatility with No Dead Angles
The system supports customized triple-head as well as multi-cavity co-extrusion crossheads. Its internal melt passage includes a streamlined diffluence shuttle that eliminates polymer stagnation or "dead angles," preventing defects such as dark spots or longitudinal streaks on the parison.
6. Clean Parison Hot Knife Shearing
Equipped with a pneumatic hot knife blade heated by a low-voltage, high-strength current supplied from an isolated transformer, this feature allows for precise and instantaneous cutting of robust polymer parisons, avoiding tube collapse or layer smearing.
7. Automated Calibration with Smooth Neck Finish
Utilizing an advanced downward-blowing technique, the blow pin tip and mold neck ring automatically trim and calibrate the container neck during inflation. This process ensures consistently flat, burr-free sealing surfaces ideal for subsequent filling operations.
8. Category-4 Safety Door Interlocking Network
Operator safety is assured through dual limit sensors combined with mechanical stroke switch loops on safety guards. Opening the door immediately triggers a fault alarm and cuts power to the clamping rams, providing reliable fail-safe protection.
Technical Parameters:
System Basic Parameters
Basic Specifications
Material and Size Details
|
Applicable Materials
|
PE, PP, PVC, PA, and others
|
|
Maximum Product Volume
|
10 L
|
|
Number of Heads
|
1, 2, 3, or 4
|
|
Machine Dimensions (L * W * H)
|
3.7 m * 3 m * 2.5 m
|
|
Machine Weight
|
8 Tons
|
Mould Clamping System
Clamping Specifications
|
Mould Clamping Force
|
150 kN
|
|
Platen Opening Stroke
|
240 - 600 mm
|
|
Plate Stroke
|
360 mm
|
|
Maximum Mould Size (W * H)
|
500 mm * 360 mm
|
Extrusion System
Extruder Details
|
Screw Diameter
|
70 mm
|
|
Screw Slenderness Ratio (L/D)
|
24
|
|
Plasticizing Capacity (HDPE)
|
90 kg/h
|
|
Number of Heating Zones on Screw
|
3
|
|
Screw Heating Power
|
12 kW
|
|
Screw Fan Power
|
0.28 kW
|
|
Extrusion Motor Power
|
18.5 kW
|
Head System Parameters
|
Number of Heating Zones on Head
|
10
|
|
Head Heating Power
|
16.5 kW
|
|
Maximum Extrusion Gate Mould Diameter
|
3 mm
|
Energy Consumption
Power and Efficiency
|
Total Machine Power
|
70 kW
|
|
Oil Motor Power
|
15 kW
|
|
Air Pressure
|
0.6 - 0.8 MPa
|
|
Average Energy Consumption
|
1.5 kW
|
|
Compressed Air Volume
|
50 m³/h
|
|
Cooling Water Volume
|
55.5 m³/h
|
Applications:
The MP70FS machine delivers exceptional versatility in processing a wide range of polyolefin resins. It is capable of handling materials such as PE, PP, PVC, PA, PC, PS, and EVA, enabling the production of structural and high-strength components across various industries.
In the Fast-Moving Consumer Goods (FMCG) and rigid cosmetic packaging sector, the MP70FS excels with high-speed multi-cavity molding. This capability is ideal for manufacturing personal care containers such as bottles, jars, and pots with precision and efficiency.
When it comes to industrial oils and chemicals, the MP70FS ensures precision molding of robust products like lubricant jugs, agrochemical pots, and stacking chemical barrels. These items require durability and consistent quality, which the machine reliably provides.
For commercial hardware and cases, the MP70FS produces high-impact, double-walled blow-molded power tool cases, as well as rigid enclosures for consumer products. This contributes to enhanced protection and product longevity.
In the automotive sector, the machine manufactures impermeable polyamide (PA) components such as air ducts, vehicle expansion tanks, and structural panels. These parts demand strength and resistance, qualities that the MP70FS effectively delivers.
