EVA Compatible Plastic Bottle Blow Molding Machine with Multi-Head System High-Efficiency Hydraulic Control and Intelligent PLC

EVA Compatible Plastic Bottle Blow Molding Machine with Multi-Head System High-Efficiency Hydraulic Control and Intelligent PLC
EVA Compatible Plastic Bottle Blow Molding Machine with Multi-Head System High-Efficiency Hydraulic Control and Intelligent PLC

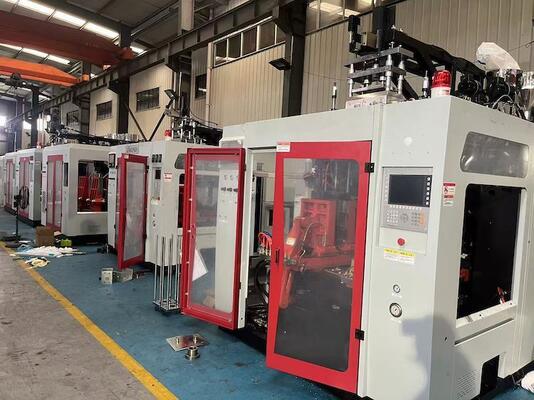

Large Image :  EVA Compatible Plastic Bottle Blow Molding Machine with Multi-Head System High-Efficiency Hydraulic Control and Intelligent PLC

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Head: Yes Materialcompatibility: PE, PP, PVC, PA, PC, PS, EVA
Machine Weight: 15 Tons Feature: Faster Output
Product Volume Range: 5ml – 100L Type: Toggle Type With IML
Machine Size: 3.5 × 5.6 × 2.65 M Application: Bottle

EVA Compatible Plastic Bottle Blow Molding Machine Supporting Plastic Sport Bottle and Bottle Production with Automation
Product Overview

The MP100FD extrusion blow molding machine is specifically engineered to produce plastic hollow products ranging from 5ml to 10 liters in volume. This versatile equipment caters to a wide variety of materials including PE, PP, PVC, PA, PC, PS, and EVA.

Featuring a high-efficiency design, the machine is equipped with a multi-head system that enhances productivity by allowing multiple molds to operate simultaneously. Its energy-saving hydraulic control system ensures optimal power consumption while maintaining reliable performance.

The extrusion process is stable and consistent, guaranteeing high-quality output. Additionally, the machine is integrated with an intelligent PLC control system, which simplifies operation and enables precise adjustments for different production requirements.

Key Features
  • High Efficiency Extrusion System: Variable frequency screw motor ensures stable control over extrusion speed with robust plasticizing capability and rapid, uniform heating
  • Double-Station Clamping Structure: Toggle-type mold clamping mechanism with linear guide structure for smooth operation and faster mold movements
  • Multi-Layer & Multi-Head Production: Supports single-layer and double-layer product fabrication with multiple die head configurations
  • Intelligent PLC Control System: Supports fully automatic, semi-automatic, and manual operation modes with fault alarm system and memory storage
  • Energy Saving Hydraulic Design: Optimized hydraulic oil circuit with double proportional hydraulic control reduces energy consumption
  • Advanced Safety Protection: Electric and mechanical safety door protections with emergency stop system and automatic operation interlock
Technical Specifications
Parameter Specification
Product Volume Range 5ml - 100 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Die Heads 3 sets
Machine Dimensions (L*W*H) 3.5m * 5.6m * 2.65m
Total Weight 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm
Plate Stroke 750 mm
Max Mold Size 700 * 420 mm
Screw Diameters 100 mm, 75 mm, 25 mm
HDPE Output Capacity 218 kg/hour
Total Power Consumption 210 KW
Hydraulic Motor Power 31 KW
Air Pressure Requirement 0.6 - 1 MPa
Cooling Water Consumption 1000 liters/minute
Applications
  • Packaging Industry: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, food containers
  • Industrial Applications: Tool boxes, plastic barrels, storage tanks, automotive air ducts, industrial hollow parts
  • Household Products: Chairs, toys, plastic jars, home storage products
Frequently Asked Questions
What is the brand and model number of this Plastic Bottle Blow Molding Machine?
The machine is branded MEPER and the model number is 100FD.
Where is this Plastic Bottle Blow Molding Machine manufactured?
This machine is made in China.
What certifications does the MEPER 100FD Plastic Bottle Blow Molding Machine have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and pricing for this machine?
The minimum order quantity is 1 set and the price is negotiable.
How are the machines packaged and what is the delivery time?
The machines are packed in a standard export package, with an optional wooden pellet or wooden case. The delivery time is typically 25-35 work days.
What are the payment terms and supply capacity for this product?
Payment can be made via L/C or T/T. The supply ability is 100 sets per month.
