MP80FD High Efficiency Extrusion Blow Molding Machine with Intelligent PLC Control for Multi-Layer Production

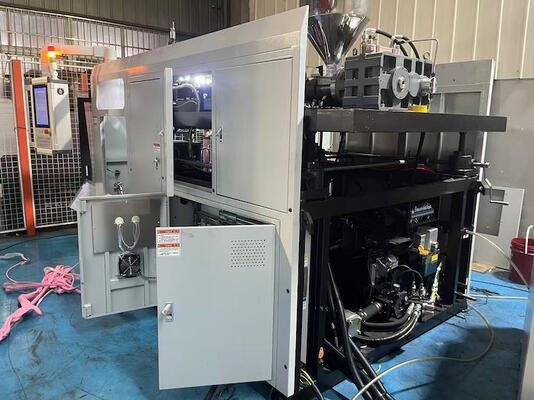

Large Image : MP80FD High Efficiency Extrusion Blow Molding Machine with Intelligent PLC Control for Multi-Layer Production

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	100FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Product:	Plastic Sport Bottle	Moog System:	Yes
Application:	Bottle	Machine Size:	3.5 × 5.6 × 2.65 M
Feature:	Faster Output	Head:	Yes
Materialcompatibility:	PE, PP, PVC, PA, PC, PS, EVA	Machine Weight:	15 Tons

Toggle Type With IML Bottle Blowing Machinery

Product Overview

The MP100FD extrusion blow molding machine is specifically designed to produce plastic hollow products ranging from 5ml to 10L in volume. This versatile equipment is ideal for manufacturing containers and bottles of various sizes.

It is compatible with a wide range of materials including PE, PP, PVC, PA, PC, PS, and EVA, making it suitable for diverse applications across different industries. The machine ensures high-quality output regardless of the chosen material.

Featuring a high-efficiency automatic blow molding system, the MP100FD incorporates a multi-head setup to enhance productivity. Its energy-saving hydraulic control system contributes to reduced power consumption, while stable extrusion guarantees consistent product quality.

Moreover, the machine operates with an intelligent PLC control system, allowing for streamlined operation and precise process management. This combination of advanced features makes the MP100FD a reliable and efficient solution for extrusion blow molding needs.

Key Features

High Efficiency Extrusion System: Variable frequency screw motor ensures stable control over extrusion speed with strong plasticizing capability through high L/D ratio screw design.
Double-Station Clamping Structure: Toggle-type mold clamping system with linear guide design guarantees smooth, stable operation and faster mold movement.
Multi-Layer & Multi-Head Production: Supports production of both single-layer and double-layer products with multiple die head configurations for specialized designs.
Intelligent PLC Control System: Offers flexible operation modes including fully automatic, semi-automatic, and manual settings with fault alarm system.
Energy Saving Hydraulic Design: Optimized oil circuit and double proportional hydraulic control reduce energy consumption while enhancing stability.
Advanced Safety Protection: Includes electric and mechanical safety door protections, emergency stop system, and automatic operation interlock.

Technical Specifications

Item	Specification
Model	MP100FD
Product Volume Range	5ml – 100L
Applicable Materials	PE, PP, PVC, PA, PC, PS, EVA
Number of Die Heads	3 Sets
Machine Size	3.5 * 5.6 * 2.65 m
Machine Weight	15 Tons
Clamping Force	200 KN
Mold Opening Stroke	240 – 640 mm
Plate Stroke	750 mm
Max Mold Size	700 * 420 mm
Screw Diameter	100 / 75 / 75 / 25 / 25 mm
Screw L/D Ratio	26 / 24 / 24 / 22 / 22
HDPE Output Capacity	218 kg/h
Extrusion Motor Power	55 / 22 / 22 / 1.5 / 1.5 KW
Total Machine Power	210 KW
Hydraulic Motor Power	31 KW
Air Pressure	0.6 – 1 MPa
Cooling Water Consumption	1000 L/min

Applications

The MP100FD extrusion blow molding machine is extensively utilized across various industries due to its versatility and reliability:

Packaging Products: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, and food containers
Industrial Components: Tool boxes, plastic barrels, storage tanks, automotive air ducts, and industrial hollow parts
Household Goods: Chairs, toys, plastic jars, and various home storage products

Frequently Asked Questions

Q1: What is the brand and model number of this Plastic Bottle Blow Molding Machine?

A1: The machine is branded as MEPER and the model number is 100FD.

Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?

A2: This machine is manufactured in China.

Q3: What certifications does the MEPER 100FD Plastic Bottle Blow Molding Machine have?

A3: The machine is certified with CE and ISO9001:2008 standards.

Q4: What is the minimum order quantity and how is the price determined?

A4: The minimum order quantity is 1 set, and the price is negotiable.

Q5: What are the packaging details and delivery time for this machine?

A5: The machine comes with a standard export package, with an optional wooden pellet or wooden case. Delivery time is typically 25-35 work days.

Q6: What payment terms are accepted for purchasing the MEPER 100FD?

A6: Payments can be made via L/C (Letter of Credit) or T/T (Telegraphic Transfer).

Q7: What is the supply capacity of the MEPER 100FD Plastic Bottle Blow Molding Machine?

A7: The supply ability is 100 sets per month.
