Moog System Plastic Bottle Blow Molding Machine

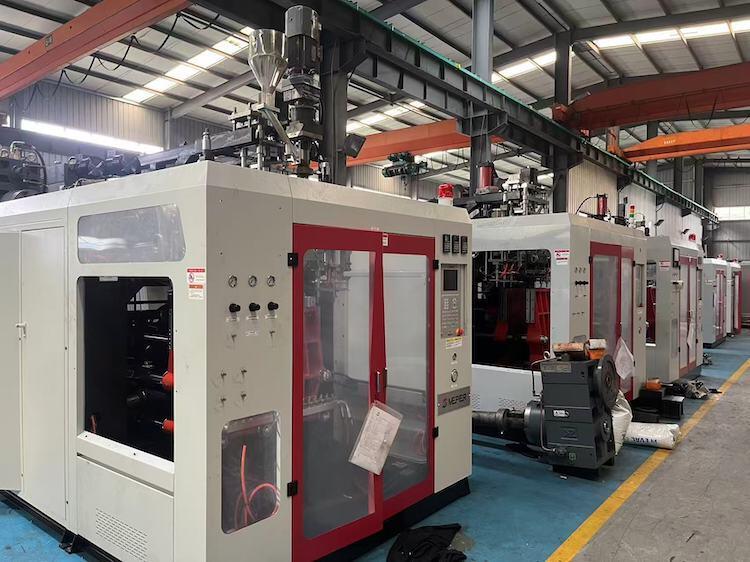

Large Image : Moog System Plastic Bottle Blow Molding Machine

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	100FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Number Of Die Heads:	3 Sets	Feature:	Faster Output
Materialcompatibility:	PE, PP, PVC, PA, PC, PS, EVA	View Stripe Line:	YES
Product Volume Range:	5ml – 100L	Moog System:	Yes
System:	Parison Control System MOOG	Type:	Toggle Type With IML

Moog System Plastic Bottle Blow Molding Machine

Product Overview

The MP100FD extrusion blow molding machine is specifically engineered to produce plastic hollow products ranging in size from 5ml to 10 liters. Its versatile design allows it to handle a variety of materials including PE, PP, PVC, PA, PC, PS, and EVA.

This high-efficiency blow molding machine features a multi-head system that enhances productivity by enabling multiple products to be molded simultaneously. Additionally, it incorporates energy-saving hydraulic control technology, ensuring reduced power consumption during operation.

With stable extrusion performance and intelligent PLC control, the MP100FD offers reliable and precise manufacturing capabilities. The combination of advanced automation and user-friendly interface makes it an ideal choice for efficient and consistent plastic product production.

Key Features

High Efficiency Extrusion System: Variable frequency screw motor with stable extrusion control, high L/D ratio screw design for efficient material melting, and computer-controlled heating for uniform temperature distribution
Double-Station Clamping Structure: Toggle-type mold clamping mechanism with reliable high-pressure clamping force, linear guide structure for smooth operation, and faster mold movement for increased production efficiency
Multi-Layer & Multi-Head Production: Supports single-layer and double-layer products, various die head configurations, and capability to produce items with viewing strips
Intelligent PLC Control System: Full automatic, semi-automatic, and manual operation modes, fault alarm system, memory for up to 40 mold parameters, and precise control over temperature, pressure, speed, and timing
Energy Saving Hydraulic Design: Enhanced oil circuit and double proportional hydraulic control for reduced energy consumption and improved stability
Advanced Safety Protection: Comprehensive electric and mechanical safety door protections, emergency stop system, and automatic operation interlock system

Technical Specifications

Parameter	Specification
Product Volume Range	5ml - 100 liters
Compatible Materials	PE, PP, PVC, PA, PC, PS, EVA
Die Heads	3 sets
Machine Dimensions (WLH)	3.5 * 5.6 * 2.65 meters
Machine Weight	Approximately 15 tons
Clamping Force	200 KN
Mold Opening Stroke	240-640 mm (adjustable)
Plate Stroke	750 mm
Maximum Mold Size	700 * 420 mm
Screw Specifications	100mm (L/D 26), 75mm2 (L/D 242), 25mm2 (L/D 222)
HDPE Output Capacity	218 kg/hour
Total Power Consumption	210 KW
Hydraulic Motor Power	31 KW
Air Pressure Requirement	0.6 - 1 MPa
Cooling Water Consumption	1000 liters/minute

Applications

Packaging Sector: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, and food containers

Industrial Applications: Tool boxes, plastic barrels, storage tanks, automotive air ducts, and industrial hollow parts

Household Products: Chairs, toys, plastic jars, and various home storage products

Frequently Asked Questions

Q1: What is the brand and model of this Plastic Bottle Blow Molding Machine?

A1: The machine is branded MEPER and the model number is 100FD.

Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?

A2: It is made in China.

Q3: What certifications does the MEPER 100FD machine have?

A3: The machine holds CE and ISO9001:2008 certifications.

Q4: What is the minimum order quantity and pricing for this machine?

A4: The minimum order quantity is 1 set, and the price is negotiable.

Q5: What are the delivery time and payment terms for the Plastic Bottle Blow Molding Machine?

A5: Delivery time is typically 25-35 work days. Payment terms accepted are L/C and T/T.

Q6: How is the machine packaged for shipping?

A6: The machine is packaged in a standard export package with an optional wooden pellet or wooden case.

Q7: What is the monthly supply capacity for the MEPER 100FD machine?

A7: The supply ability is 100 sets per month.
