Parison Control System MOOG Plastic Bottle Blow Molding Machine Equipped

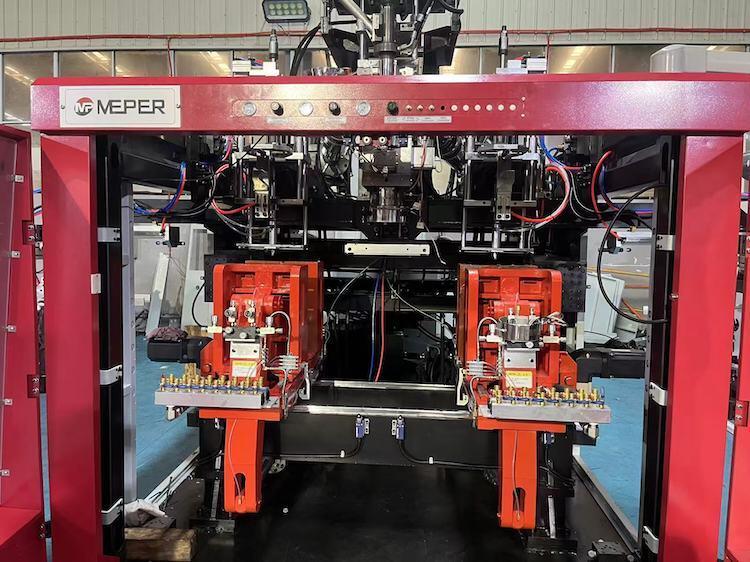

Large Image : Parison Control System MOOG Plastic Bottle Blow Molding Machine Equipped

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	100FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

View Stripe Line:	YES	Machine Weight:	15 Tons
Materialcompatibility:	PE, PP, PVC, PA, PC, PS, EVA	Feature:	Faster Output
Product:	Plastic Sport Bottle	Moog System:	Yes
System:	Parison Control System MOOG	Head:	Yes

Parison Control System MOOG Plastic Bottle Blow Molding Machine Equipped with Head Product Volume Range 5ml-100L

Product Overview

The MP100FD extrusion blow molding machine is specifically engineered to produce plastic hollow products ranging from 5ml to 10 liters in volume. This versatile machine supports a wide variety of materials, including PE, PP, PVC, PA, PC, PS, and EVA, making it suitable for diverse manufacturing needs.

Featuring a high-efficiency design, the MP100FD incorporates a multi-head system that allows for increased productivity and flexibility in production. Its energy-saving hydraulic control system ensures optimized power consumption without compromising performance.

The machine guarantees stable extrusion throughout the molding process, contributing to consistent product quality. The intelligent PLC control system further enhances operational efficiency by providing precise and user-friendly management of the entire blow molding procedure.

Key Features

High Efficiency Extrusion System: Variable frequency screw motor with stable extrusion speed control, robust plasticizing capability with high L/D ratio screw design, and computer-controlled heating system
Double-Station Clamping Structure: Toggle-type mold clamping system with linear guide framework for smooth operations and faster mold movements
Multi-Layer & Multi-Head Production: Supports single-layer and double-layer products with multiple die head configurations and viewing strip capability
Intelligent PLC Control System: Full automatic, semi-automatic, and manual operational modes with fault alarm system and memory storage for 40 mold parameter sets
Energy Saving Hydraulic Design: Advanced oil circuit with double proportional hydraulic control for reduced energy consumption
Advanced Safety Protection: Electric and mechanical safety door protections, emergency stop system, and automatic operation interlock

Technical Specifications

Model	MP100FD
Product Volume Range	5ml – 100L
Applicable Materials	PE, PP, PVC, PA, PC, PS, EVA
Number of Die Heads	3 Sets
Machine Size	3.5 * 5.6 * 2.65 m
Machine Weight	15 Tons
Clamping Force	200 KN
Mold Opening Stroke	240 – 640 mm
Plate Stroke	750 mm
Max Mold Size	700 * 420 mm
Screw Diameter	100 / 75 / 75 / 25 / 25 mm
Screw L/D Ratio	26 / 24 / 24 / 22 / 22
HDPE Output Capacity	218 kg/h
Extrusion Motor Power	55 / 22 / 22 / 1.5 / 1.5 KW
Total Machine Power	210 KW
Hydraulic Motor Power	31 KW
Air Pressure	0.6 – 1 MPa
Cooling Water Consumption	1000 L/min

Applications

Packaging Industry: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, and food containers
Industrial Products: Tool boxes, plastic barrels, storage tanks, automotive air ducts, and industrial hollow parts
Household Products: Chairs, toys, plastic jars, and home storage products

Frequently Asked Questions

What is the brand and model number of the Plastic Bottle Blow Molding Machine?

The machine is branded MEPER and the model number is 100FD.

Where is the Plastic Bottle Blow Molding Machine manufactured?

It is manufactured in China.

What certifications does this blow molding machine have?

The machine is certified with CE and ISO9001:2008.

What is the minimum order quantity and how is the pricing structured?

The minimum order quantity is 1 set, and the price is negotiable.

What are the packaging and delivery details for the machine?

The machine is packaged in a standard export package, with an optional wooden pellet or wooden case. Delivery time is typically 25-35 work days.

What are the payment terms and supply capacity for this product?

Payment terms accepted are L/C and T/T. The supply ability is 100 sets per month.
