5ml to 100L Automatic Bottle Blowing Machine - 15 Tons Weight

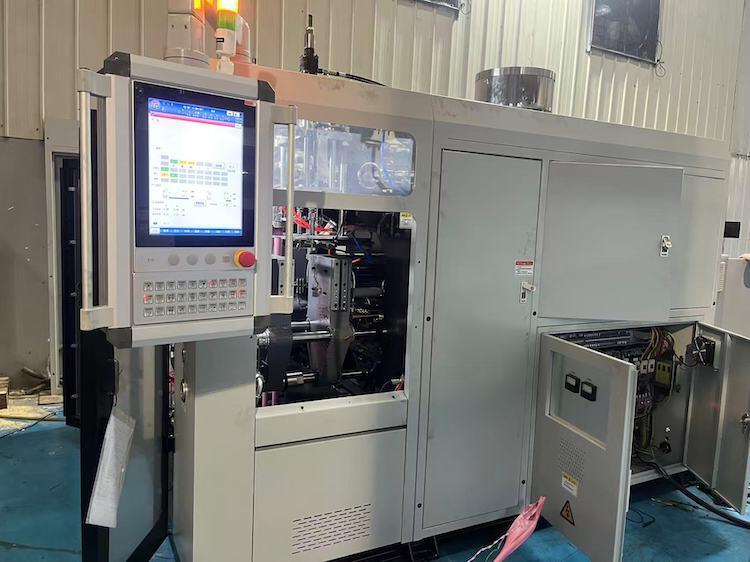

Large Image : 5ml to 100L Automatic Bottle Blowing Machine - 15 Tons Weight

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	100FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Product Volume Range:	5ml – 100L	Type:	Toggle Type With IML
Materialcompatibility:	PE, PP, PVC, PA, PC, PS, EVA	Machine Size:	3.5 × 5.6 × 2.65 M
Head:	Yes	View Stripe Line:	YES
Product:	Plastic Sport Bottle	System:	Parison Control System MOOG

5ml to 100L Automatic Bottle Blowing Machine - 15 Tons Weight

Product Overview

The MP100FD extrusion blow molding machine is specially designed to manufacture plastic hollow products ranging from 5ml to 10 liters in volume. This versatile machine accommodates a wide variety of materials including PE, PP, PVC, PA, PC, PS, and EVA.

Featuring a high-efficiency automatic blow molding system, the MP100FD ensures superior productivity with its multi-head configuration. Its energy-saving hydraulic control system contributes to reduced operational costs while maintaining excellent performance.

The machine offers stable extrusion processes combined with intelligent PLC operation, providing users with precise control and enhanced reliability throughout the production cycle.

Key Features

High Efficiency Extrusion System: Variable frequency screw motor with advanced screw design and high L/D ratio for strong plasticizing capabilities
Double-Station Clamping Structure: Toggle-type mold clamping mechanism with linear guide structure for smooth, stable operation
Multi-Layer & Multi-Head Production: Supports single-layer and double-layer products with multiple die head configurations
Intelligent PLC Control System: Fully automatic, semi-automatic, and manual operation modes with fault alarm system
Energy-Saving Hydraulic Design: Optimized oil circuit with double proportional hydraulic control technology
Advanced Safety Protection: Electric and mechanical safety door protections with emergency stop system

Technical Specifications

The MP100FD model is designed for handling product volumes from 5 milliliters up to 100 liters, making it suitable for various industrial applications requiring different container sizes and production scales.

Specification	Details
Model	MP100FD
Product Volume Range	5ml – 100L
Applicable Materials	PE, PP, PVC, PA, PC, PS, EVA
Number of Die Heads	3 Sets
Machine Size	3.5 * 5.6 * 2.65 m
Machine Weight	15 Tons
Clamping Force	200 KN
Mold Opening Stroke	240 – 640 mm
Plate Stroke	750 mm
Max Mold Size	700 * 420 mm
Screw Diameter	100 / 75 / 75 / 25 / 25 mm
Screw L/D Ratio	26 / 24 / 24 / 22 / 22
HDPE Output Capacity	218 kg/h
Extrusion Motor Power	55 / 22 / 22 / 1.5 / 1.5 KW
Total Machine Power	210 KW
Hydraulic Motor Power	31 KW
Air Pressure	0.6 – 1 MPa
Cooling Water Consumption	1000 L/min

Applications

The MP100FD extrusion blow molding machine is extensively utilized across various industries to manufacture a wide range of products:

Packaging: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, and food containers
Industrial: Tool boxes, plastic barrels, storage tanks, automotive air ducts, and industrial hollow parts
Household Goods: Chairs, toys, plastic jars, and various home storage products

Frequently Asked Questions

Q1: What is the brand and model number of the Plastic Bottle Blow Molding Machine?

A1: The machine is branded MEPER and the model number is 100FD.

Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?

A2: The machine is manufactured in China.

Q3: What certifications does this blow molding machine have?

A3: The machine is certified with CE and ISO9001:2008 standards.

Q4: What is the minimum order quantity and price for the MEPER 100FD machine?

A4: The minimum order quantity is 1 set, and the price is negotiable.

Q5: What are the packaging and delivery details for this blow molding machine?

A5: The machine is packed in a standard export package, with an optional wooden pellet wooden case. Delivery time is 25-35 work days.

Q6: What are the accepted payment terms and supply capacity for the MEPER 100FD?

A6: Payment terms include L/C and T/T, and the supply ability is 100 sets per month.
