High Efficiency Faster Output Plastic Bottle Blow Molding Machine

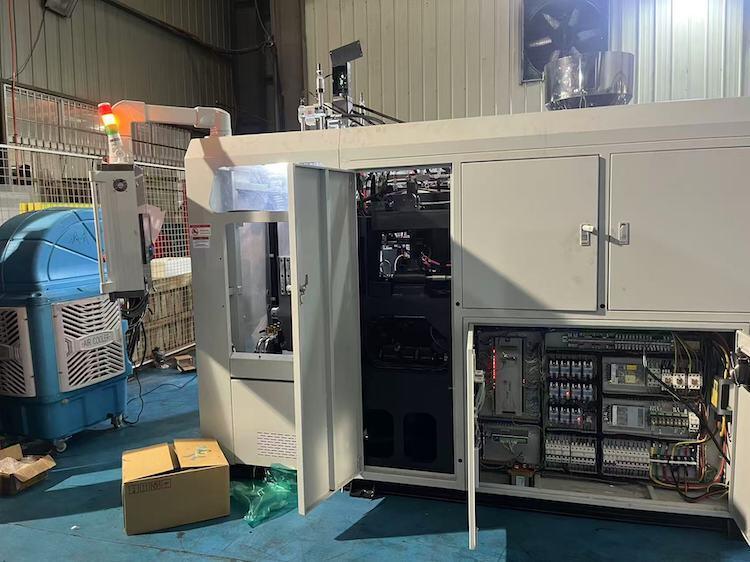

Large Image : High Efficiency Faster Output Plastic Bottle Blow Molding Machine

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	100FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Product Volume Range:	5ml – 100L	Materialcompatibility:	PE, PP, PVC, PA, PC, PS, EVA
Number Of Die Heads:	3 Sets	Head:	Yes
View Stripe Line:	YES	Product:	Plastic Sport Bottle
Machine Weight:	15 Tons	System:	Parison Control System MOOG

Faster Output Plastic Bottle Blow Molding Machine Including Parison Control System MOOG and Head Yes Designed for Operation

Product Overview

The MP100FD extrusion blow molding machine is specifically engineered to produce plastic hollow products ranging in size from 5 milliliters to 10 liters. It offers great versatility and precision for manufacturing containers of various volumes.

This machine is compatible with a wide variety of materials including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polyamide (PA), polycarbonate (PC), polystyrene (PS), and ethylene-vinyl acetate (EVA). This adaptability makes it suitable for numerous industrial applications.

Featuring a high-efficiency automatic blow molding system equipped with multiple heads, the MP100FD ensures stable and consistent extrusion. Its energy-efficient hydraulic control mechanism helps reduce operational costs while maintaining optimal performance.

Moreover, the machine is operated via an intelligent PLC control system, providing ease of use and improving overall productivity by automating complex processes.

Key Features

High Efficiency Extrusion System: Variable frequency screw motor ensures stable extrusion speed control with strong plasticizing capability and fast, uniform heating through computer-controlled system
Double-Station Clamping Structure: Toggle-type mold clamping with linear guide mechanism for smooth operation and reliable high-pressure clamping force
Multi-Layer & Multi-Head Production: Supports single-layer and double-layer products with multiple die head configurations for complex items including viewing strips
Intelligent PLC Control System: Full automatic, semi-automatic, and manual operating modes with fault alarm system and storage for up to 40 different molds
Energy Saving Hydraulic Design: Optimized hydraulic oil circuit with double proportional hydraulic control reduces energy consumption
Advanced Safety Protection: Electric and mechanical safety door protections, emergency stop system, and automatic operation interlock

Technical Specifications

Model	MP100FD
Product Volume Range	5 ml - 10 L
Compatible Materials	PE, PP, PVC, PA, PC, PS, EVA
Die Heads	3 sets
*Dimensions (WLH)*	3.5 * 5.6 * 2.65 m
Weight	15 tons
Clamping Force	200 kN
Mold Opening Stroke	240-640 mm
Plate Stroke	750 mm
Maximum Mold Size	700 * 420 mm
Screw Diameters	100, 75, 75, 25, 25 mm
Screw L/D Ratios	26, 24, 24, 22, 22
HDPE Output Capacity	218 kg/h
Extrusion Motor Power	55, 22, 22, 1.5, 1.5 kW
Total Machine Power	210 kW
Hydraulic Motor Power	31 kW
Air Pressure Range	0.6-1 MPa
Cooling Water Consumption	1000 L/min

Applications

Packaging: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, food containers
Industrial: Tool boxes, plastic barrels, storage tanks, automotive air ducts, industrial hollow parts
Household Products: Chairs, toys, plastic jars, home storage products

Frequently Asked Questions

What is the brand and model number of the Plastic Bottle Blow Molding Machine?

The machine is branded MEPER and the model number is 100FD.

Where is the Plastic Bottle Blow Molding Machine manufactured?

It is manufactured in China.

What certifications does this blow molding machine have?

The machine is certified with CE and ISO9001:2008.

What are the payment terms and minimum order quantity for this machine?

The minimum order quantity is 1 set. Payment terms accepted are L/C and T/T.

How long does it take to deliver the Plastic Bottle Blow Molding Machine after placing an order?

The delivery time is typically 25-35 work days.
