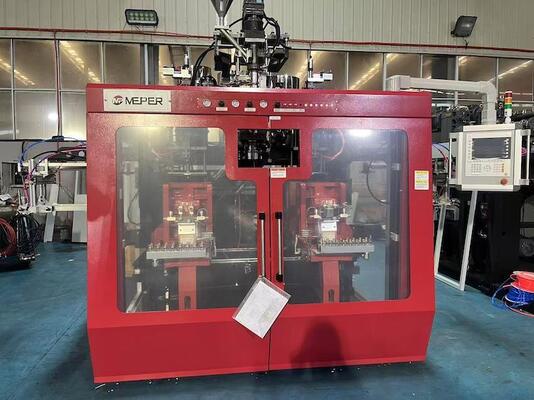

MOOG Parison Control System Plastic Container Blowing Machine with 5ml to 100L Volume Range and Multi-Head Production

MOOG Parison Control System Plastic Container Blowing Machine with 5ml to 100L Volume Range and Multi-Head Production
MOOG Parison Control System Plastic Container Blowing Machine with 5ml to 100L Volume Range and Multi-Head Production

Large Image :  MOOG Parison Control System Plastic Container Blowing Machine with 5ml to 100L Volume Range and Multi-Head Production

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Materialcompatibility: PE, PP, PVC, PA, PC, PS, EVA View Stripe Line: YES
Moog System: Yes Product Volume Range: 5ml – 100L
System: Parison Control System MOOG Application: Bottle
Feature: Faster Output Machine Size: 3.5 × 5.6 × 2.65 M

MP100FD Extrusion Blow Molding Machine
Product Overview

The MP100FD extrusion blow molding machine is engineered to produce plastic hollow products ranging from 5ml to 10 liters in volume. This versatile equipment is suitable for processing a variety of materials including PE, PP, PVC, PA, PC, PS, and EVA.

Designed with efficiency in mind, the machine features a multi-head system that enhances productivity by allowing multiple products to be manufactured simultaneously. Its energy-saving hydraulic control system ensures reduced power consumption while maintaining precise operations.

Additionally, the MP100FD offers stable extrusion performance, guaranteeing consistent product quality. The intelligent PLC control system simplifies operation, providing users with a reliable and user-friendly interface for seamless production management.

Key Features
  • High Efficiency Extrusion System: Equipped with variable frequency screw motor for stable extrusion speed control, high L/D ratio screw design for strong plasticizing capability, and advanced computer-controlled heating for uniform temperature distribution.
  • Double-Station Clamping Structure: Toggle-type mold clamping system with linear guide structure for smooth operation, faster mold movement, and reliable high-pressure clamping force.
  • Multi-Layer & Multi-Head Production: Supports single-layer and double-layer products with multiple die head configurations, including capability for integrated viewing strips.
  • Intelligent PLC Control System: Flexible operation modes (automatic, semi-automatic, manual), fault alarm system, memory for 40 mold parameter sets, and precise control over temperature, pressure, speed, and timing.
  • Energy Saving Hydraulic Design: Optimized hydraulic oil circuit with double proportional hydraulic control for reduced energy consumption and improved stability.
  • Advanced Safety Protection: Electric and mechanical safety door protections, emergency stop system, and automatic operation interlock for secure working environment.
Technical Specifications
Specification Details
Model MP100FD
Product Volume Range 5ml – 100L
Applicable Materials PE, PP, PVC, PA, PC, PS, EVA
Number of Die Heads 3 Sets
Machine Size 3.5 * 5.6 * 2.65 m
Machine Weight 15 Tons
Clamping Force 200 KN
Mold Opening Stroke 240 – 640 mm
Plate Stroke 750 mm
Max Mold Size 700 * 420 mm
Screw Diameter 100 / 75 / 75 / 25 / 25 mm
Screw L/D Ratio 26 / 24 / 24 / 22 / 22
HDPE Output Capacity 218 kg/h
Extrusion Motor Power 55 / 22 / 22 / 1.5 / 1.5 KW
Total Machine Power 210 KW
Hydraulic Motor Power 31 KW
Air Pressure 0.6 – 1 MPa
Cooling Water Consumption 1000 L/min
Applications
  • Packaging Sector: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, and food containers
  • Industrial Applications: Tool boxes, plastic barrels, storage tanks, automotive air ducts, and industrial hollow parts
  • Household Goods: Plastic chairs, toys, plastic jars, and home storage solutions
Frequently Asked Questions
What is the brand and model of the Plastic Bottle Blow Molding Machine?
The machine is branded MEPER, and the model number is 100FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MEPER 100FD machine have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for the MEPER 100FD?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the Plastic Bottle Blow Molding Machine?
The machine is packed in a standard export package, with an optional wooden pellet wooden case. Delivery time is typically 25-35 work days.
What payment terms are accepted for purchasing the MEPER 100FD?
Payment can be made via L/C (Letter of Credit) or T/T (Telegraphic Transfer).
What is the supply capacity of the MEPER Plastic Bottle Blow Molding Machine?
MEPER can supply up to 100 sets per month.
