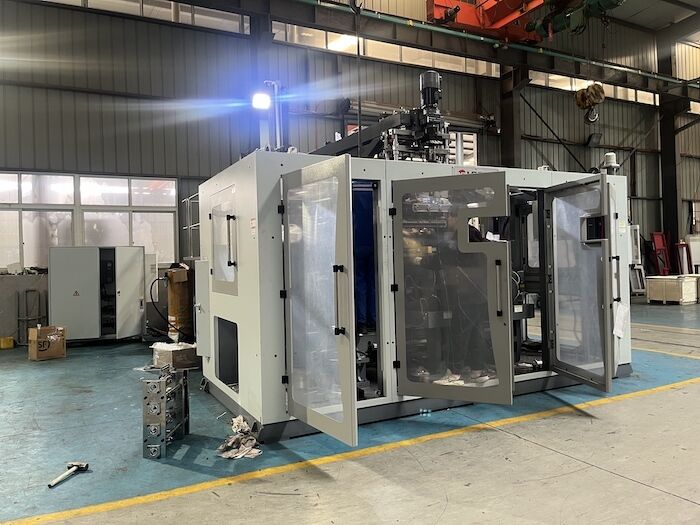

Plastic Barrel Blowing Machine with Double Layer Technology

Plastic Barrel Blowing Machine with Double Layer Technology
Plastic Barrel Blowing Machine with Double Layer Technology

Large Image :  Plastic Barrel Blowing Machine with Double Layer Technology

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Product Volume: Max 10 Liter Auxiliary Screw Diameter: 75 Mm
Max Mold Size: 700 × 420 Mm Cooling Water: 1000 L/min
Material: PE / PP / PVC / PA / PC / PS / EVA Total Power: 210 KW
Plasticizing Capacity: 218 Kg/h Main Screw Diameter: 100 Mm

Plastic Barrel Blowing Machine with Double Layer Technology
Product Overview
The MP100FD Plastic Blow Molding Machine is a highly efficient extrusion blow molding equipment designed to create hollow plastic products ranging in size from 5ml up to 10 liters. This versatile machine is well-suited for producing a variety of items such as plastic bottles, jars, jerry cans, tool boxes, toys, automotive components, household containers, and industrial packaging solutions.
It accommodates a broad spectrum of raw materials including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polyamide (PA), polycarbonate (PC), polystyrene (PS), and ethylene-vinyl acetate (EVA). This wide compatibility makes the MP100FD an excellent choice for manufacturers who require flexibility alongside dependable production performance.
Equipped with a double-station clamping system and a three-head die system, the MP100FD ensures efficient and stable operation. Additionally, the machine features PLC automatic control and an energy-saving hydraulic design, which contribute to faster cycle times and reduced production costs, enhancing overall manufacturing efficiency.
Key Features
  • High Production Efficiency: Double station design with three die heads supports multi-cavity production, high-speed mold opening/closing mechanism minimizes downtime
  • Wide Material Compatibility: Suitable for HDPE, LDPE, PP, PVC, PA, PC, PS, and EVA materials
  • Intelligent Control System: Advanced PLC and computer automatic control system with storage for 40 different mold settings, manual/semi-automatic/fully automatic operation modes
  • Energy Saving Design: Optimized servo and hydraulic setup with stable heating zones for reduced power consumption
  • Reliable Mechanical Structure: Toggle clamping system with linear guide rails provides strong and stable mold locking force
Technical Specifications
Parameter Specification
Model MP100FD
Product Volume Capacity Up to 10 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Number of Heads 3 sets
Machine Dimensions 3.5m × 5.6m × 2.65m
Weight Approximately 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm
Maximum Mold Size 700 × 420 mm
Main Screw Diameter 100 mm
Auxiliary Screw Diameter 75 mm
Plasticizing Capacity 218 kg/hour
Total Power Consumption 210 KW
Air Pressure Range 0.6-1 MPa
Air Consumption Rate 1.2 m³/minute
Cooling Water Flow 1000 liters/minute
Applications
  • Packaging: Detergent bottles, chemical bottles, cosmetic bottles, lubricant bottles
  • Food & Beverage: Juice bottles, water containers, sauce bottles
  • Industrial Products: Jerry cans, tool boxes, plastic drums
  • Household Products: Chairs, storage containers, plastic toys
  • Automotive Parts: Air ducts, reservoir tanks, technical hollow components
Frequently Asked Questions
What is the brand and model of this Plastic Bottle Blow Molding Machine?
The machine is branded MEPER, and the model number is 100FD.
Where is this machine manufactured?
The Plastic Bottle Blow Molding Machine is made in CHINA.
What certifications does this machine have?
This product holds CE and ISO9001:2008 certifications, ensuring quality and safety standards.
What is the minimum order quantity and pricing terms?
The minimum order quantity is 1 set, and the price is negotiable based on order specifics.
How is the machine packaged and what is the typical delivery time?
The machine is packaged in a standard export package, with an optional wooden pellet or wooden case. Delivery time is typically 25-35 work days.
What payment methods are accepted?
Payment terms include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the supply capacity of this Plastic Bottle Blow Molding Machine?
MEPER can supply up to 100 sets per month, ensuring sufficient availability for bulk orders.
