Precision Blow Molding Equipment for PE/PVC/PC Materials

Precision Blow Molding Equipment for PE/PVC/PC Materials
Precision Blow Molding Equipment for PE/PVC/PC Materials

Large Image :  Precision Blow Molding Equipment for PE/PVC/PC Materials

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Product Volume: Max 10 Liter Number Of Heads: 3 Sets
Clamping Force: 200 KN Cooling Water: 1000 L/min
Mold Opening Stroke: 240-640 Mm Machine Size: 3.5 × 5.6 × 2.65 M
Max Mold Size: 700 × 420 Mm Plasticizing Capacity: 218 Kg/h

Precision Blow Molding Equipment for PE/PVC/PC Materials
Product Overview

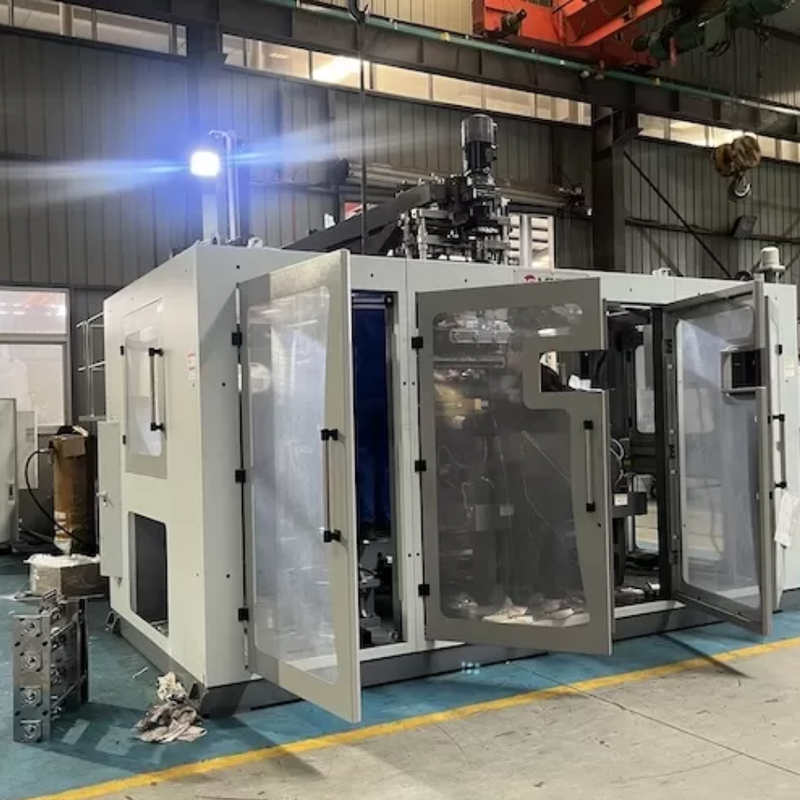

The MP100FD Plastic Blow Molding Machine is a highly efficient extrusion blow molding machine engineered to produce hollow plastic products ranging in size from 5ml up to 10 liters. Its versatile capabilities make it an excellent choice for manufacturing a variety of items including plastic bottles, jars, jerry cans, tool boxes, toys, automotive components, household containers, and industrial packaging solutions.

This machine is compatible with a broad spectrum of raw materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring greater flexibility in production processes while maintaining consistent and reliable output quality.

Equipped with a double-station clamping system and 3-head die system, the MP100FD utilizes advanced PLC automatic control along with an energy-efficient hydraulic design. These features contribute to stable machine operation, shorter cycle times, and reduced production costs.

Key Features
  • High Production Efficiency: Double station design with three die heads supports multi-cavity production and fast mold opening/closing mechanisms
  • Wide Material Compatibility: Supports HDPE, LDPE, PP, PVC, PA, PC, PS, and EVA materials
  • Intelligent Control System: PLC and computer-based automatic operation with storage for 40 mold configurations and multiple operation modes
  • Energy Saving Design: Servo and hydraulic optimized system with stable heating zones for reduced electricity usage
  • Reliable Mechanical Structure: Robust toggle clamping system with precision linear guide rails for strong mold locking force and durability
Technical Specifications
Parameter Specification
Model MP100FD
Maximum Product Volume Up to 10 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Number of Heads 3 sets
Machine Dimensions 3.5m × 5.6m × 2.65m
Weight Approximately 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm
Maximum Mold Size 700 × 420 mm
Main Screw Diameter 100 mm
Auxiliary Screw Diameter 75 mm
Plasticizing Capacity 218 kg/hour
Total Power Output 210 KW
Air Pressure Range 0.6-1 MPa
Air Consumption 1.2 m³/minute
Cooling Water Flow 1000 liters/minute
Applications

The MP100FD blow molding machine is extensively utilized across various industries to manufacture a diverse range of products:

  • Packaging: Detergent, chemical, cosmetic, lubricant bottles; food and beverage containers including juice, water, and sauce bottles
  • Industrial Products: Jerry cans, tool boxes, plastic drums
  • Household Items: Chairs, storage containers, plastic toys
  • Automotive Components: Air ducts, reservoir tanks, and other technical hollow components
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?
The Plastic Bottle Blow Molding Machine is branded MEPER and the model number is 100FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
The machine is manufactured in China.
Does the Plastic Bottle Blow Molding Machine have any certifications?
Yes, the machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for the Plastic Bottle Blow Molding Machine?
The minimum order quantity is 1 set. The price is negotiable based on order details.
What are the payment terms and delivery time for this machine?
Payment terms include L/C and T/T. The delivery time is typically 25-35 work days after order confirmation.
