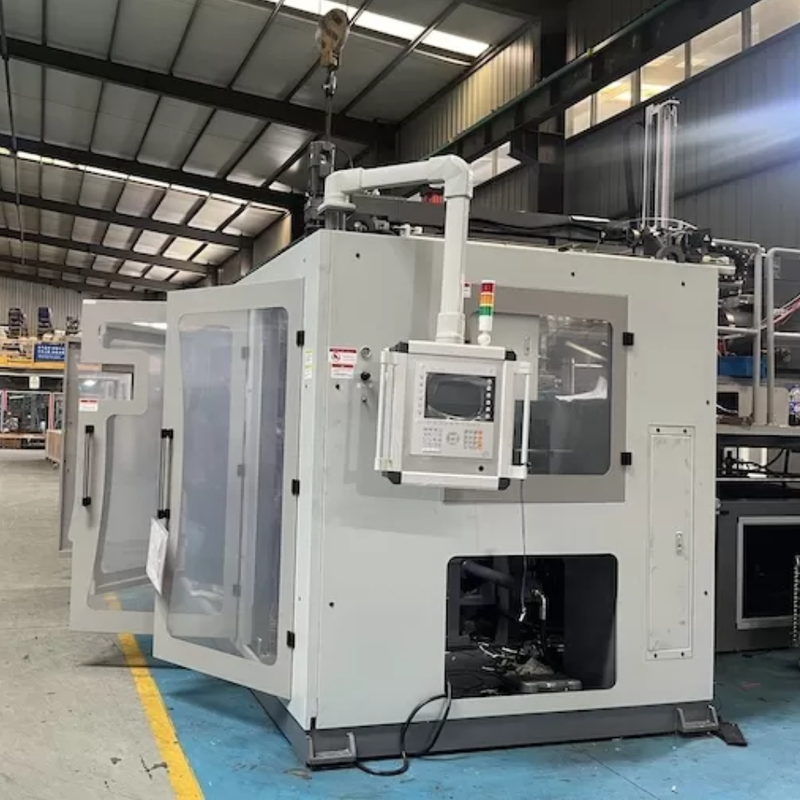

Variable Frequency Blow Molding Machine with Oblique Blowing

Variable Frequency Blow Molding Machine with Oblique Blowing
Variable Frequency Blow Molding Machine with Oblique Blowing

Large Image :  Variable Frequency Blow Molding Machine with Oblique Blowing

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Machine Size: 3.5 × 5.6 × 2.65 M Plasticizing Capacity: 218 Kg/h
Auxiliary Screw Diameter: 75 Mm Max Mold Size: 700 × 420 Mm
Mold Opening Stroke: 240-640 Mm Main Screw Diameter: 100 Mm
Number Of Heads: 3 Sets Air Consumption: 1.2 M³/min

Variable Frequency Blow Molding Machine with Oblique Blowing
Product Overview

The MP100FD Plastic Blow Molding Machine is a highly efficient extrusion blow molding machine specifically engineered to produce hollow plastic products ranging in size from 5ml up to 10 liters. This versatile machine is ideal for manufacturing a variety of items including plastic bottles, jars, jerry cans, tool boxes, toys, automotive components, household containers, and industrial packaging solutions.

Designed to accommodate a broad spectrum of raw materials such as PE, PP, PVC, PA, PC, PS, and EVA, the MP100FD provides manufacturers with the flexibility they need for diverse production requirements. Its compatibility with multiple materials ensures reliable performance across different applications.

Equipped with advanced features like a double-station clamping system, a 3-head die setup, PLC automatic control, and an energy-efficient hydraulic design, the MP100FD guarantees stable operation and rapid cycle times. These innovations contribute to reduced production costs while maintaining high-quality output.

Key Features
  • High Production Efficiency: Double station design enhances output capacity with three die heads supporting multi-cavity production. Fast mold opening and closing mechanism ensures quick cycle times.
  • Wide Material Compatibility: Compatible with HDPE, LDPE, PP, PVC, PA, PC, PS, and EVA materials for various manufacturing requirements.
  • Intelligent Control System: PLC and computer automatic control with manual, semi-automatic, and full-automatic modes. Memory storage for up to 40 molds.
  • Energy Saving Design: Servo and hydraulic optimized system reduces electricity consumption with stable heating zones.
  • Reliable Mechanical Structure: Toggle clamping system and linear guide rails provide strong mold locking force for stable operation.
Technical Specifications
Maximum Product Volume Up to 10 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Number of Heads 3 sets
Machine Dimensions (L×W×H) 3.5 × 5.6 × 2.65 meters
Weight 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm (adjustable)
Maximum Mold Size 700 × 420 mm
Main Screw Diameter 100 mm
Auxiliary Screw Diameter 75 mm
Plasticizing Capacity 218 kg/hour
Total Power Input 210 KW
Air Pressure Range 0.6-1 MPa
Air Consumption 1.2 m³/minute
Cooling Water Flow 1000 liters/minute
Applications
  • Packaging Industry: Detergent bottles, chemical bottles, cosmetic bottles, lubricant bottles
  • Food & Beverage: Juice bottles, water containers, sauce bottles
  • Industrial Products: Jerry cans, tool boxes, plastic drums
  • Household Products: Chairs, storage containers, plastic toys
  • Automotive Parts: Air ducts, reservoir tanks, technical hollow parts
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?
The machine is branded MEPER, and the model number is 100FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
The machine is manufactured in China.
What certifications does the MEPER 100FD machine have?
It is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for the machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the machine?
The machine is packed in a standard export package, with an optional wooden pellet wooden case. Delivery time is typically 25-35 work days.
What payment terms are accepted for purchasing the MEPER 100FD?
Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the monthly supply ability for the MEPER 100FD Plastic Bottle Blow Molding Machine?
The supply ability is 100 sets per month.
