Double Station Blow Molding Machine with Proportional Control

Double Station Blow Molding Machine with Proportional Control
Double Station Blow Molding Machine with Proportional Control

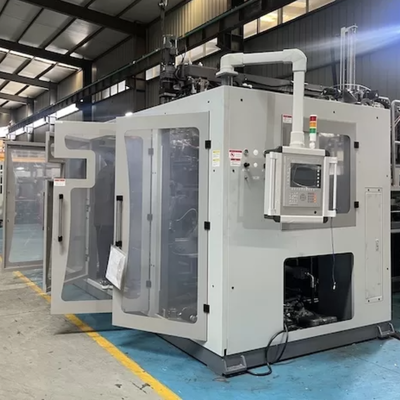

Large Image :  Double Station Blow Molding Machine with Proportional Control

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Cooling Water: 1000 L/min Auxiliary Screw Diameter: 75 Mm
Clamping Force: 200 KN Main Screw Diameter: 100 Mm
Material: PE / PP / PVC / PA / PC / PS / EVA Air Consumption: 1.2 M³/min
Machine Size: 3.5 × 5.6 × 2.65 M Mold Opening Stroke: 240-640 Mm

Double Station Blow Molding Machine with Proportional Control
Product Overview

The MP100FD Plastic Blow Molding Machine is a highly efficient extrusion blow molding system engineered to produce hollow plastic items ranging from 5ml to 10 liters. This versatile machine fabricates various products including plastic bottles, jars, jerry cans, tool boxes, toys, automotive components, household containers, and industrial packaging solutions.

It accommodates a broad spectrum of raw materials including PE, PP, PVC, PA, PC, PS, and EVA, providing manufacturers with exceptional flexibility in material selection and dependable production performance.

Featuring a double-station clamping mechanism, 3-head die system, PLC-based automatic control, and energy-efficient hydraulic design, the MP100FD ensures stable operation and rapid cycle times while reducing production costs and maintaining high-quality output.

Key Features
  • High Production Efficiency: Double station design with three die heads supports multi-cavity production and fast mold opening/closing mechanisms
  • Wide Material Compatibility: Works with HDPE, LDPE, PP, PVC, PA, PC, PS, and EVA materials
  • Intelligent Control System: PLC and computer automatic control with storage for 40 mold configurations and multiple operation modes
  • Energy Saving Design: Servo and hydraulic optimized system reduces electricity consumption
  • Reliable Mechanical Structure: Toggle clamping system and linear guide rails provide strong mold locking force
Technical Specifications
Parameter Specification
Model MP100FD
Maximum Product Volume 10 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Head Configuration 3 sets of heads
Dimensions (H×L×W) 3.5 × 5.6 × 2.65 meters
Weight 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm
Maximum Mold Size 700 × 420 mm
Main Screw Diameter 100 mm
Auxiliary Screw Diameter 75 mm
Plasticizing Capacity 218 kg/hour
Total Power Consumption 210 KW
Air Pressure 0.6-1 MPa
Air Consumption 1.2 m³/minute
Cooling Water Flow 1000 liters/minute
Applications
  • Packaging Industry: Detergent bottles, chemical bottles, cosmetic bottles, lubricant bottles
  • Food and Beverage: Juice bottles, water containers, sauce bottles
  • Industrial Products: Jerry cans, tool boxes, plastic drums
  • Household Products: Plastic chairs, storage containers, plastic toys
  • Automotive Parts: Air ducts, reservoir tanks, technical hollow components
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?
The machine is branded MEPER, and the model number is 100FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MEPER 100FD machine have?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and price for this machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the Plastic Bottle Blow Molding Machine?
The machine is packed in a standard export package, with an optional wooden pellet wooden case. Delivery time is 25-35 work days.
What payment terms and supply ability does MEPER offer for this machine?
Payment terms include L/C and T/T, and MEPER can supply up to 100 sets per month.
