High-Efficiency MP Blow Molding Machine for 5ml-100L Bottles

High-Efficiency MP Blow Molding Machine for 5ml-100L Bottles
High-Efficiency MP Blow Molding Machine for 5ml-100L Bottles

Large Image :  High-Efficiency MP Blow Molding Machine for 5ml-100L Bottles

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Main Screw Diameter: 100 Mm Max Mold Size: 700 × 420 Mm
Cooling Water: 1000 L/min Plasticizing Capacity: 218 Kg/h
Number Of Heads: 3 Sets Product Volume: Max 10 Liter
Total Power: 210 KW Clamping Force: 200 KN

High-Efficiency MP Blow Molding Machine for 5ml-100L Bottles
Product Overview

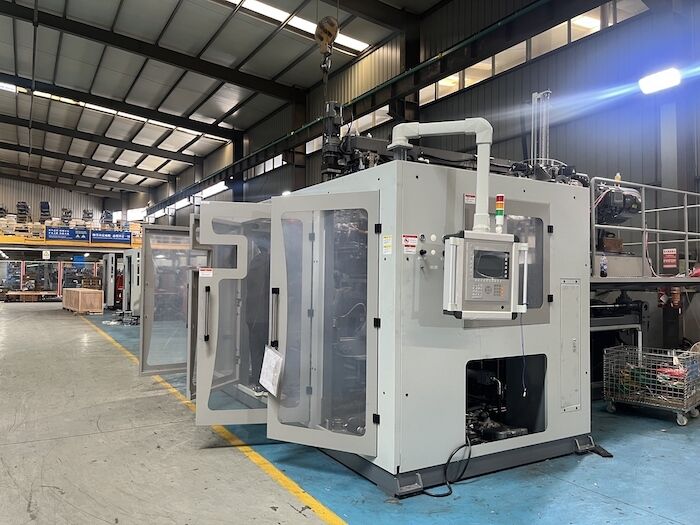

The MP100FD Plastic Blow Molding Machine is an advanced extrusion blow molding equipment designed to manufacture hollow plastic items ranging from 5ml to 10 liters. This versatile machine produces plastic bottles, jars, jerry cans, toolboxes, toys, automotive components, household containers, and industrial packaging solutions.

Compatible with polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polyamide (PA), polycarbonate (PC), polystyrene (PS), and ethylene vinyl acetate (EVA), the MP100FD offers material flexibility while ensuring consistent production results.

Featuring a dual-station clamping mechanism, 3-head die system, and PLC-based automatic control interface, this machine delivers stable operation. The energy-saving hydraulic design contributes to faster cycle times and reduced manufacturing costs.

Key Features
  • High Production Efficiency: Double station design with three die heads for multi-cavity production and fast mold opening/closing system
  • Wide Material Compatibility: Processes HDPE, LDPE, PP, PVC, PA, PC, PS, and EVA materials
  • Intelligent Control System: PLC and computer automatic control with 40 mold memory slots and multiple operating modes
  • Energy Saving Design: Servo and hydraulic optimized system with stable heating zones for reduced electricity consumption
  • Reliable Mechanical Structure: Toggle clamping system with linear guide rails and strong mold locking force
Technical Specifications
Parameter Specification
Model MP100FD
Maximum Product Volume 10 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Number of Heads 3 sets
Machine Dimensions (L×W×H) 3.5m × 5.6m × 2.65m
Weight 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm
Maximum Mold Size 700 × 420 mm
Plasticizing Capacity 218 kg/hour
Total Power Requirement 210 KW
Air Pressure Requirement 0.6-1 MPa
Air Consumption 1.2 m³/minute
Cooling Water Flow Rate 1000 liters/minute
Applications
  • Packaging: Detergent, chemical, cosmetic, and lubricant bottles
  • Food & Beverage: Juice bottles, water containers, sauce bottles
  • Industrial: Jerry cans, tool boxes, plastic drums
  • Household Goods: Chairs, storage containers, plastic toys
  • Automotive: Air ducts, reservoir tanks, technical hollow parts
Frequently Asked Questions
What is the brand and model number of this Plastic Bottle Blow Molding Machine?
The machine is branded as MEPER and the model number is 100FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MEPER 100FD Plastic Bottle Blow Molding Machine have?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and price for the Plastic Bottle Blow Molding Machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the machine?
The machine is packed in a standard export package, with optional wooden pellet or wooden case. Delivery time is typically 25-35 work days.
What payment terms are accepted for purchasing the MEPER 100FD?
Accepted payment terms include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the monthly supply capacity for this Plastic Bottle Blow Molding Machine?
The supply ability is 100 sets per month.
