Blow Molding Machine with 100mm Screw for Low Energy Output

Blow Molding Machine with 100mm Screw for Low Energy Output
Blow Molding Machine with 100mm Screw for Low Energy Output

Large Image :  Blow Molding Machine with 100mm Screw for Low Energy Output

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Machine Size: 3.5 × 5.6 × 2.65 M Material: PE / PP / PVC / PA / PC / PS / EVA
Main Screw Diameter: 100 Mm Cooling Water: 1000 L/min
Product Volume: Max 10 Liter Machine Weight: 15 Ton
Air Pressure: 0.6 - 1 MPa Clamping Force: 200 KN

Blow Molding Machine with 100mm Screw for Low Energy Output
Product Overview

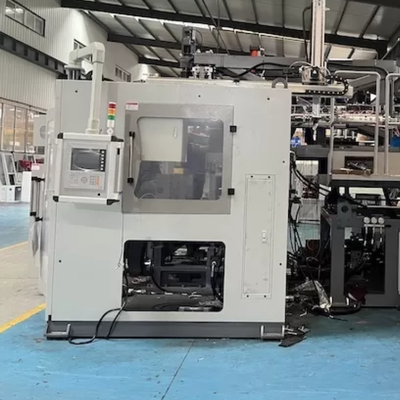

The MP100FD Plastic Blow Molding Machine is a highly efficient extrusion blow molding machine engineered to produce hollow plastic items ranging from 5ml up to 10 liters in capacity. It is perfectly suited for manufacturing various plastic products including bottles, jars, jerry cans, tool boxes, toys, automotive components, household containers, and industrial packaging solutions.

Designed to accommodate a broad spectrum of raw materials, the machine supports PE, PP, PVC, PA, PC, PS, and EVA. This versatility makes the MP100FD an excellent choice for manufacturers requiring flexible processing capabilities alongside consistent and dependable production results.

Equipped with a double-station clamping mechanism, three-head die system, and advanced PLC automatic controls, the MP100FD ensures smooth and stable operation. Its energy-efficient hydraulic design contributes to faster cycle times and reduced manufacturing costs, making it a cost-effective solution for high-volume production.

Key Features
  • High Production Efficiency: Double station design with three die heads supports multi-cavity production and rapid cycle times
  • Wide Material Compatibility: Processes HDPE, LDPE, PP, PVC, PA, PC, PS, and EVA materials
  • Intelligent Control System: PLC and computer automatic control with memory for 40 mold settings and multiple operation modes
  • Energy Saving Design: Servo and hydraulic optimized systems with stable heating zones reduce electricity consumption
  • Reliable Mechanical Structure: Toggle clamping system and linear guide rails provide strong mold locking force and stable operation
Technical Specifications
Parameter Specification
Model MP100FD
Maximum Product Volume Up to 10 liters
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Number of Heads 3 sets
Dimensions (L×W×H) 3.5m × 5.6m × 2.65m
Weight 15 tons
Clamping Force 200 KN
Mold Opening Stroke 240-640 mm
Maximum Mold Size 700 × 420 mm
Main Screw Diameter 100 mm
Auxiliary Screw Diameter 75 mm
Plasticizing Capacity 218 kg/hour
Total Power Consumption 210 KW
Air Pressure 0.6-1 MPa
Air Consumption 1.2 m³/minute
Cooling Water Flow 1000 liters/minute
Applications
  • Packaging: Detergent bottles, chemical containers, cosmetic bottles, lubricant bottles
  • Food & Beverage: Juice bottles, water containers, sauce bottles
  • Industrial Products: Jerry cans, tool boxes, plastic drums
  • Household Products: Chairs, storage containers, plastic toys
  • Automotive Components: Air ducts, reservoir tanks, technical hollow parts
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?

The brand is MEPER, and the model number is 100FD.

Where is the Plastic Bottle Blow Molding Machine manufactured?

The machine is made in CHINA.

What certifications does the MEPER 100FD Plastic Bottle Blow Molding Machine have?

It is certified with CE and ISO9001:2008.

What is the minimum order quantity and pricing terms?

The minimum order quantity is 1 set, and the price is negotiable.

What are the packaging and delivery details for this machine?

The machine is packed in a standard export package, with an optional wooden pellet wooden case. Delivery time is 25-35 work days.

What payment terms are accepted for purchasing the MEPER 100FD machine?

Payment terms include L/C (Letter of Credit) and T/T (Telegraphic Transfer).

What is the monthly supply capacity for the MEPER 100FD Plastic Bottle Blow Molding Machine?

The supply ability is 100 sets per month.
