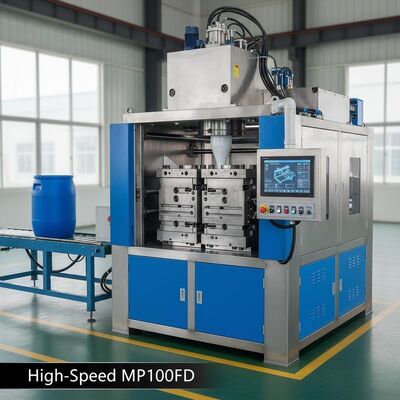

High-Speed MP100FD Extrusion Molding Machine for 100L Products

High-Speed MP100FD Extrusion Molding Machine for 100L Products
High-Speed MP100FD Extrusion Molding Machine for 100L Products High-Speed MP100FD Extrusion Molding Machine for 100L Products

Large Image :  High-Speed MP100FD Extrusion Molding Machine for 100L Products

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 100FD
Document: meper 100.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Max Product Volume: 10L Application: Granules
Station: Double Machine Weight: 8.2T
Extrusion Capacity (HDPE): Up To 218 Kg/h Total Power: 210 KW
Clamping Force: 200 KN Air Pressure: 0.6–1 MPa
Highlight:

High-Speed MP100FD Extrusion Molding Machine

,

100L Extrusion Molding Machine

,

MP100FD Plastic Extrusion Machine

Double Station Extrusion Molding Machine
Max Product Volume: 10L | Suitable for Large Scale Plastic Manufacturing
Product Overview

The MP Series plastic blow molding machine is designed for manufacturing a wide range of hollow plastic products with high efficiency and precision. Suitable for volumes from 5ml to 100L, it delivers stable performance across multiple materials and industries.


Key Features

   Wide Material Compatibility
Supports PE, PP, PVC, PA, PC, PS, EVA and more — enabling flexible production for diverse applications.

    High Output & Energy Efficiency
Advanced extrusion system with variable frequency motor ensures:

  • Strong plasticizing capability
  • High production efficiency
  • Reduced energy consumption

 Multi-Layer & Multi-Head Capability

  • Optional multi-head system (up to 3 heads)
  • Supports double-layer and view strip line production

 Precision Mould Clamping System

  • Toggle-type clamping with linear guide
  • Fast, stable, and high clamping force (200 KN)
  • Double-station design for higher productivity

 Intelligent Control System

  • Fully computerized control (PLC-based)
  • Stores up to 40 mold parameters
  • Automatic fault detection & alarm

 Flexible Operation Modes

  • Manual
  • Semi-Automatic
  • Fully Automatic

Technical Specifications – MP100FD Blow Molding Machine

Category Item Specification
Basic Specifications Applicable Materials PE, PP

Max Product Volume 10 L

Number of Heads 3 Sets

Machine Dimensions (L×W×H) 3.5 × 5.6 × 2.65 m

Machine Weight 15 Tons

 Mould Clamping System

Item Specification
Clamping Force 200 KN
Platen Opening Stroke 240 – 640 mm
Plate Stroke 750 mm
Max Mould Size (W×H) 700 × 420 mm

 Extrusion System

Item Specification
Screw Diameter 100 / 75 / 75 / 25 / 25 mm
L/D Ratio 26 / 24 / 24 / 22 / 22
Plasticizing Capacity (HDPE) 218 / 75 / 75 / 3 / 3 kg/h
Heating Zones 4 / 3 / 3 / 2 / 2
Heating Power 17.4 / 12.6 / 12.6 / 1.4 / 1.4 KW
Fan Power 0.56 / 0.28 / 0.28 KW
Extrusion Motor Power 55 / 22 / 22 / 1.5 / 1.5 KW

 Die Head System

Item Specification
Heating Zones 14 Zones
Heating Power 30 KW

 Energy & Utility Requirements

Item Specification
Total Power 210 KW
Oil Pump Motor Power 31 KW
Air Pressure 0.6 – 1 MPa
Air Consumption 1.2 m³/min
Cooling Water Consumption 1000 L/min
Application Fields
  • Daily Chemical Packaging: Detergent bottles, shampoo containers, cleaning liquid bottles, disinfectant containers
  • Food & Beverage Industry: Edible oil bottles, sauce containers, drinking water bottles, liquid packaging
  • Pharmaceutical & Medical: Medicine bottles, disinfectant containers, medical liquid packaging
  • Lubricant & Chemical: Engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers
  • Industrial Packaging: Industrial containers, tool bottles, automotive fluid tanks, functional hollow parts
  • Agrochemical & Agricultural: Pesticide bottles, fertilizer liquid containers, irrigation chemical packaging
  • Cosmetic & Personal Care: Lotion bottles, cosmetic containers, personal care packaging
  • Custom Hollow Products: Small drums, jerry cans, specialty containers with custom mold designs
