Double Station Extrusion Molding Machine with 10L Max Product Volume and PLC Touch Screen Control for Large Scale Plastic Manufacturing

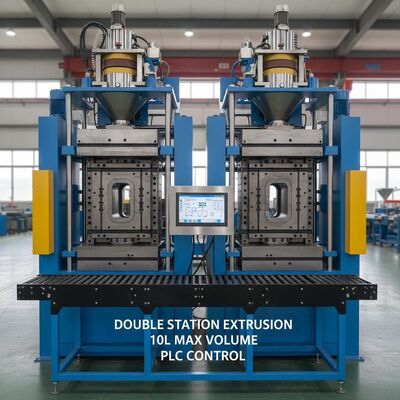

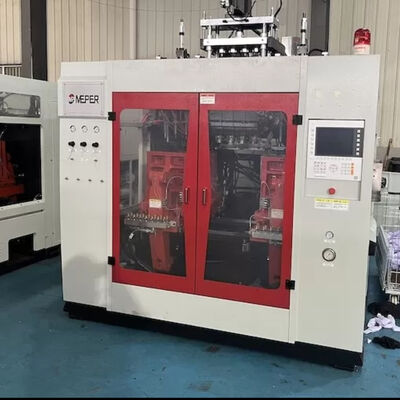

Large Image : Double Station Extrusion Molding Machine with 10L Max Product Volume and PLC Touch Screen Control for Large Scale Plastic Manufacturing

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	80FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Max Product Volume:	10L	Application:	Granules
Applicable Material:	HDPE + EVOH+AD	Clamping Force:	120KN
Die Head Type:	Flat Die, Profile Die, Multi-layer Die	Station:	Double
Control System:	PLC With Touch Screen	Machine Weight:	8.2T
Highlight:	double station extrusion molding machine , 10L extrusion molding machine , large scale plastic extrusion machine

Double Station Extrusion Molding Machine

Max Product Volume: 10L | Suitable for Large Scale Plastic Manufacturing

Product Overview

The Meper80D (MP80D) extrusion blow molding machine is engineered as a highly efficient industrial solution for producing plastic containers with capacities up to 10 liters. This versatile machine supports various materials including PE, PP, PVC, and PA, making it ideal for manufacturing packaging materials, chemical containers, everyday bottles, and industrial hollow products.

Featuring an 80mm high-performance screw with plasticizing capacity up to 90 kg/h for HDPE, the machine ensures consistent melt quality and reliable output. Designed to operate with 1 to 4 heads, it provides flexible production options and enables multi-cavity configurations to enhance productivity.

Key Features

High Production Efficiency: 80mm screw with 90 kg/h plasticizing capacity for mass production of 10-liter containers
Flexible Multi-Head Configuration: Supports 1-4 heads for adjustable production capacity and multi-cavity operation
Strong Clamping System: 150 kN clamping force with reinforced platen structure minimizes flash and ensures consistent quality
Wide Material Compatibility: Works with PE, PP, PVC, and PA for diverse product manufacturing
Precision Temperature Control: Multi-zone heating system (4 screw zones, 3 head zones) for uniform heating and better surface finish
Energy Efficient Operation: Optimized 80 kW total power consumption with efficient heating and motor systems
Durable Heavy-Duty Structure: 8.2-ton robust construction for long service life and stable continuous operation
Large Mold Compatibility: Supports mold sizes up to 520 × 460 mm with platen opening strokes to 620 mm
Easy Operation & Maintenance: User-friendly control system with accessible layout for quick mold changeovers
Complete Auxiliary Systems: Optimized hydraulic, compressed air (0.6-0.8 MPa), and cooling water (40 L/min) systems
Consistent Product Quality: Stable extrusion, precise temperature management, and reliable clamping for uniform wall thickness

Technical Specifications

Basic Parameters
Applicable Materials	PE, PP, PVC, PA, and others
Maximum Product Volume	10 liters
Number of Heads	Options: 1, 2, 3, or 4 heads
Machine Dimensions (L × W × H)	4 × 2.3 × 2.5 meters
Machine Weight	8.2 tons
Mould Clamping System
Mould Clamping Force	150 kN
Platen Opening Stroke	220 mm to 620 mm
Plate Stroke	540 mm
Maximum Mould Size (W × H)	520 × 460 mm
Extrusion System
Screw Diameter	80 mm
Screw Slenderness Ratio (L/D)	24
Plasticizing Capacity (HDPE)	90 kg/hour
Number of Screw Heating Zones	4 zones
Screw Heating Power	15.85 kW
Screw Fan Power	0.28 kW
Extrusion Motor Power	30 kW
Head Specifications
Number of Head Heating Zones	3 zones
Head Heating Power	10 kW
Energy Consumption
Total Machine Power	80 kW
Oil Motor Power	18.7 kW
Air Pressure	0.6 - 0.8 MPa
Compressed Air Consumption	1.5 cubic meters per minute
Cooling Water Flow Rate	40 liters per minute

Application Fields

Daily Chemical Packaging: Detergent bottles, shampoo containers, cleaning liquid bottles, disinfectant containers
Food & Beverage Industry: Edible oil bottles, sauce containers, drinking water bottles, liquid packaging
Pharmaceutical & Medical: Medicine bottles, disinfectant containers, medical liquid packaging
Lubricant & Chemical: Engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers
Industrial Packaging: Industrial containers, tool bottles, automotive fluid tanks, functional hollow parts
Agrochemical & Agricultural: Pesticide bottles, fertilizer liquid containers, irrigation chemical packaging
Cosmetic & Personal Care: Lotion bottles, cosmetic containers, personal care packaging
Custom Hollow Products: Small drums, jerry cans, specialty containers with custom mold designs
