Product Description:

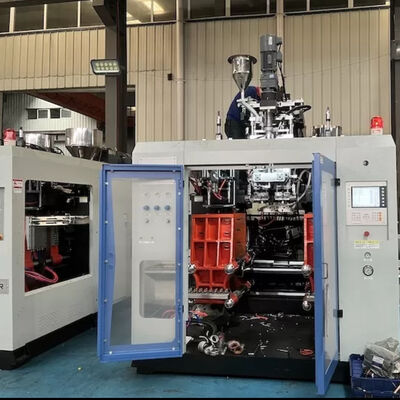

The Meper80D (MP80D) extrusion blow molding machine stands out as a highly efficient industrial device engineered to manufacture plastic containers with capacities of up to 10 liters. Its versatility is demonstrated by compatibility with various materials such as PE, PP, PVC, and PA. This makes it ideal for producing a range of products, including packaging materials, chemical containers, everyday bottles, and industrial hollow structures.
Featuring an 80mm high-performance screw, the Meper80D offers a plasticizing capability of up to 90 kg per hour when processing HDPE. This ensures stable melt quality and consistent production output, critical for maintaining product standards.
Additionally, the machine is designed to support between one and four heads, providing flexible production options. This multi-head system facilitates enhanced productivity by enabling multi-cavity operations, catering to different manufacturing demands.
Features:
Machine Features Overview
High Production Efficiency
This machine is equipped with a premium 80mm high-performance screw and boasts a plasticizing capacity of up to 90 kg/h. It guarantees a stable melt flow along with a high production output, making it perfectly suited for the mass manufacture of 10-liter containers.
Flexible Multi-Head Configuration
Supporting configurations from 1 to 4 heads, this machine allows manufacturers to easily adjust production capacity. Multiple cavities can be operated simultaneously, maximizing overall productivity and efficiency.
Strong and Stable Clamping System
The clamping system exerts a force of 150 kN, complemented by a reinforced platen structure. This combination ensures excellent mold stability, minimizing flash formation and maintaining consistent product quality throughout production runs.
Wide Material Compatibility
Capable of processing a variety of materials including PE, PP, PVC, and PA, the machine is versatile enough to produce a broad range of items such as bottles, containers, chemical packaging, and various industrial hollow products.
Precision Temperature Control
Featuring a multi-zone heating system—comprising 4 zones for the screw and 3 zones for the head—it ensures uniform heating. This leads to improved plasticization of the melt and results in a superior surface finish on the final products.
Energy Efficient Operation
With an optimized total power consumption of 80 kW, the machine incorporates efficient heating and motor systems. This design helps to significantly reduce energy costs while still maintaining excellent performance.
Durable and Heavy-Duty Structure
Weighing 8.2 tons and built with a robust mechanical design, the machine offers a long service life. Its sturdy construction reduces vibration and ensures stable operation even under continuous industrial use.
Large Mold Compatibility
The machine supports mold sizes up to 520 × 460 mm and platen opening strokes up to 620 mm. This broad compatibility accommodates a wide variety of product shapes and sizes.
Easy Operation and Maintenance
Designed with a user-friendly control system and an accessible machine layout, it simplifies daily operations, routine maintenance, and enables quick mold changeovers to minimize downtime.
Complete Auxiliary System Integration
Stable machine operation is further enhanced by an optimized hydraulic system, a reliable compressed air supply ranging from 0.6 to 0.8 MPa, and an efficient cooling water circulation system capable of 40 liters per minute.
Consistent Product Quality
The combination of stable extrusion, precise temperature regulation, and reliable clamping guarantees uniform wall thickness and consistently high-quality finished products.
Ideal for Industrial Applications
This machine is perfectly suited for producing a wide range of industrial packaging items, including chemical containers, detergent bottles, lubricant bottles, and other products with volumes up to 10 liters.
Technical Parameters:
System Parameters Overview
Basic Specifications
This section outlines the fundamental parameters of the system, including applicable materials, size specifications, and weight. The machine is designed to handle various materials such as PE, PP, PVC, and PA. It supports a maximum product volume of up to 10 liters, and offers flexibility with one to four heads depending on operational requirements.
|
Item
|
Unit
|
Basic Parameter
|
|
Applicable materials
|
-
|
PE, PP, PVC, PA…
|
|
Max product volume
|
L
|
10
|
|
Number of heads
|
SET
|
1, 2, 3, 4
|
|
Machine dimensions (L×W×H)
|
M
|
4 × 2.3 × 2.5
|
|
Machine weight
|
TON
|
8.2
|
Mould Clamping System
The mould clamping system ensures precise control during operation, providing a clamping force of 150KN. The platen opening stroke is adjustable between 220 and 620 millimeters, with an overall plate stroke of 540 millimeters. Maximum mould sizes are 520 millimeters in width and 460 millimeters in height.
|
Item
|
Unit
|
Basic Parameter
|
|
Mould clamping force
|
KN
|
150
|
|
Platen opening strokes
|
MM
|
220-620
|
|
Plate stroke
|
MM
|
540
|
|
Max mould sizes (W×H)
|
MM
|
520 × 460
|
Extrusion System
The extrusion system features an 80 mm diameter screw with a slenderness ratio of 24, designed to optimize plasticizing efficiency. It is capable of processing 90 kilograms of HDPE material per hour. The screw has four heating zones powered by 15.85 kW, complemented by a screw fan with 0.28 kW power. The extrusion motor is rated at 30 kW, enabling robust performance.
|
Item
|
Unit
|
Basic Parameter
|
|
Screw diameter
|
MM
|
80
|
|
Screw slenderness ratio (L/D)
|
-
|
24
|
|
Plasticizing ability (HDPE)
|
KG/H
|
90
|
|
Screw heating stages/zones
|
Zone
|
4
|
|
Screw heating power
|
KW
|
15.85
|
|
Screw fan power
|
KW
|
0.28
|
|
Extrusion motor power
|
KW
|
30
|
Head Heating System
The head heating system consists of three heating zones that collectively require 10 kW of power. This configuration ensures consistent temperature control for optimal production quality.
|
Item
|
Unit
|
Basic Parameter
|
|
Head heating stages/zones
|
Zone
|
3
|
|
Head heating power
|
KW
|
10
|
Energy Consumption
The machine's total power consumption reaches up to 80 kW. The oil motor consumes 18.7 kW, while the system operates under an air pressure ranging from 0.6 to 0.8 MPA. Additionally, the compressed air volume required is 1.5 cubic meters per minute, with a cooling water flow rate set at 40 liters per minute.
|
Item
|
Unit
|
Basic Parameter
|
|
Total machine power
|
KW
|
80
|
|
Oil motor power
|
KW
|
18.7
|
|
Air pressure
|
MPA
|
0.6 - 0.8
|
|
Compressed air volume
|
M³/min
|
1.5
|
|
Cooling water volume
|
L/min
|
40
|
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine is extensively utilized in various industries to manufacture hollow plastic containers and industrial packaging with capacities of up to 10 liters.
Daily Chemical Packaging Industry
This machine is ideal for producing a range of household chemical packaging, including detergent bottles, shampoo bottles, cleaning liquid containers, and disinfectant bottles, catering to the daily chemical sector’s needs.
Food & Beverage Industry
It is well-suited for manufacturing food-grade containers, such as edible oil bottles, sauce bottles, and drinking water containers. These products require safe and hygienic materials to ensure product quality and consumer safety.
Pharmaceutical & Medical Packaging
The machine is employed in the pharmaceutical and medical fields for producing medicine bottles, disinfectant containers, and other medical liquid packaging that demand high precision and consistent quality standards.
Lubricant & Chemical Industry
In the lubricant and chemical sector, the Meper80D / MP80D is perfect for manufacturing engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical packaging items that require durability and strength.
Industrial Packaging Sector
This machine is applicable to the production of industrial containers, tool bottles, automotive fluid tanks, as well as functional hollow parts intended for various industrial applications.
Agrochemical & Agricultural Field
It is widely used to produce pesticide bottles, fertilizer liquid containers, irrigation chemical containers, and other agricultural solution packaging, supporting the agrochemical and agricultural industries.
Cosmetic & Personal Care Packaging
Suitable for lotion bottles, cosmetic containers, and personal care packaging products, the machine ensures a smooth surface finish and precise shaping to meet aesthetic and functional demands.
Custom Hollow Plastic Products
The Meper80D / MP80D supports customized production of various hollow plastic items like small drums, jerry cans, and specialty containers, accommodating different mold designs to meet diverse client requirements.
