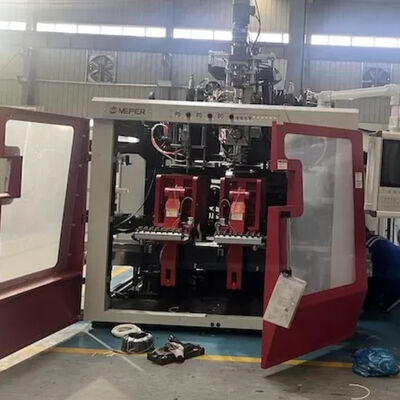

80mm High-Performance Screw Extrusion Blow Molding Machine with 150KN Clamping Force and Multi-Head Configuration for Plastic Bottle Manufacturing

Large Image : 80mm High-Performance Screw Extrusion Blow Molding Machine with 150KN Clamping Force and Multi-Head Configuration for Plastic Bottle Manufacturing

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	80FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Clamping Force:	120KN	Die Head Type:	Flat Die, Profile Die, Multi-layer Die
Warranty:	1year	Machine Weight:	8.2T
Application:	Granules	Max Output Capacity:	50 Kg/h - 1000 Kg/h
Control System:	PLC With Touch Screen	Mould Clamping Force:	90KN
Highlight:	high capacity plastic extrusion machine , 50-1000 kg/h extrusion molding machine , industrial plastic extrusion equipment

MP80 HDPE Jerry Can & Bottle Manufacturing Machine

The Meper80D (MP80D) extrusion blow molding machine is a highly efficient industrial equipment designed to manufacture plastic containers with capacities of up to 10 liters. Its versatile compatibility with various materials such as PE, PP, PVC, and PA makes it ideal for producing packaging products, chemical containers, everyday-use bottles, and industrial hollow items.

Key Features

High Production Efficiency: Equipped with an 80mm high-performance screw delivering up to 90 kg/h plasticizing capacity for mass production of 10-liter containers
Flexible Multi-Head Configuration: Supports 1 to 4 heads for adjustable production capacity and multi-cavity operations
Strong Clamping System: 150 kN clamping force with reinforced platen structure reduces flash and maintains consistent quality
Wide Material Compatibility: Processes PE, PP, PVC, and PA for diverse product applications
Precision Temperature Control: Multi-zone heating system ensures uniform heat distribution and superior surface finish
Energy Efficient Operation: Optimized 80 kW power consumption reduces energy costs while maintaining performance
Durable Construction: 8.2-ton robust design ensures long lifespan and stable operation under continuous use
Large Mold Compatibility: Supports molds up to 520 × 460 mm with platen opening strokes up to 620 mm
Easy Operation & Maintenance: User-friendly control system and efficient layout simplify daily operations
Complete System Integration: Optimized hydraulic, compressed air (0.6-0.8 MPa), and cooling water (40 L/min) systems

Technical Specifications

Parameter	Specification
Applicable Materials	PE, PP, PVC, PA
Maximum Product Volume	10 liters
Number of Heads	1, 2, 3, or 4 heads
Machine Dimensions (L×W×H)	4.0 × 2.3 × 2.5 meters
Machine Weight	8.2 tons
Clamping Force	150 kN
Platen Opening Stroke	220-620 mm
Maximum Mold Size (W×H)	520 × 460 mm
Screw Diameter	80 mm
Screw L/D Ratio	24:1
Plasticizing Capacity (HDPE)	90 kg/h
Total Machine Power	80 kW
Air Pressure	0.6-0.8 MPa
Cooling Water Flow	40 L/min

Application Industries

Daily Chemical Packaging - Detergents, shampoos, cleaning liquids, disinfectants
Food & Beverage - Edible oils, sauces, drinking water containers
Pharmaceutical & Medical - Medicine bottles, disinfectant containers
Lubricant & Chemical - Engine oils, lubricants, pesticides, chemical products
Industrial Packaging - Tool bottles, automotive fluid tanks, industrial containers
Agrochemical - Pesticides, fertilizer liquids, irrigation chemicals
Cosmetic & Personal Care - Lotion bottles, cosmetic containers
Custom Hollow Plastic Products - Jerry cans, small drums, specialty containers
