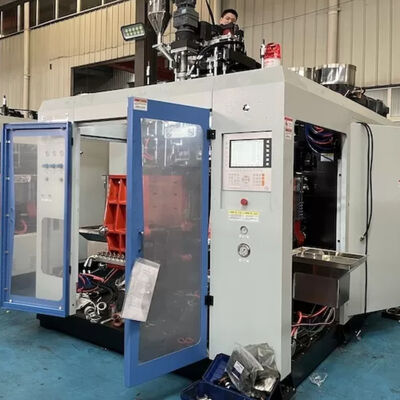

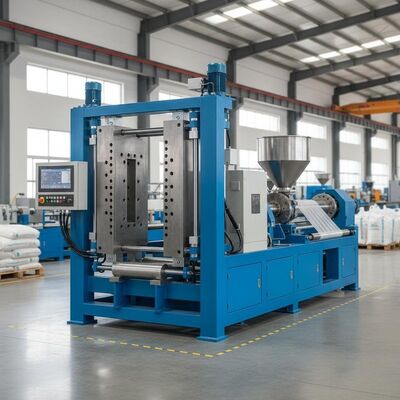

90KN Mould Clamping Force Plastic Extrusion Machine with 220-620MM Platen Opening Strokes and 50-1000 Kg/h Max Output Capacity

90KN Mould Clamping Force Plastic Extrusion Machine with 220-620MM Platen Opening Strokes and 50-1000 Kg/h Max Output Capacity
90KN Mould Clamping Force Plastic Extrusion Machine with 220-620MM Platen Opening Strokes and 50-1000 Kg/h Max Output Capacity 90KN Mould Clamping Force Plastic Extrusion Machine with 220-620MM Platen Opening Strokes and 50-1000 Kg/h Max Output Capacity

Large Image :  90KN Mould Clamping Force Plastic Extrusion Machine with 220-620MM Platen Opening Strokes and 50-1000 Kg/h Max Output Capacity

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Station: Double Clamping Force: 120KN
Applicable Material: HDPE + EVOH+AD Touch Screen: SIEMENS
Warranty: 1year Mould Clamping Force: 90KN
Machine Weight: 8.2T Max Output Capacity: 50 Kg/h - 1000 Kg/h
Highlight:

90KN plastic extrusion machine

,

mould clamping force extrusion machine

,

plastic profile extrusion molding machine

90KN Mould Clamping Force Plastic Extrusion Machine
Featuring platen opening strokes of 220-620mm, this machine is ideal for plastic profile extrusion applications and manufacturing plastic containers with capacities up to 10 liters.
Product Overview
The Meper80D (MP80D) extrusion blow molding machine represents a high-efficiency industrial solution tailored for manufacturing plastic containers with capacities reaching up to 10 liters. This versatile machine supports a broad spectrum of materials, including PE, PP, PVC, and PA, making it ideal for producing items such as packaging materials, chemical containers, everyday-use bottles, and various industrial hollow products.
Featuring an 80mm high-performance screw, the MP80D offers a plasticizing capacity of up to 90 kg per hour when processing HDPE. This ensures a stable melt quality and consistent production output. Furthermore, the machine is designed to accommodate from 1 to 4 heads, providing flexibility in production capacity and enabling multi-cavity operation to enhance overall productivity.
Key Features
  • High Production Efficiency: 80mm high-performance screw capable of plasticizing up to 90 kg per hour, guaranteeing stable melt flow and high output rate
  • Flexible Multi-Head Configuration: Supports 1 to 4 heads for adjustable production capacity and multi-cavity operation
  • Strong and Stable Clamping System: 150 kN clamping force with reinforced platen structure ensures excellent mold stability and reduces flash formation
  • Wide Material Compatibility: Works with PE, PP, PVC, and PA for diverse container and packaging production
  • Precision Temperature Control: Multi-zone heating system with four zones for screw and three zones for head ensures uniform heating
  • Energy Efficient Operation: Optimized 80 kW total power consumption reduces energy costs without compromising performance
  • Durable Heavy-Duty Structure: 8.2-ton robust mechanical design guarantees long service life and stable operation
  • Large Mold Compatibility: Supports mold sizes up to 520×460mm with platen opening strokes up to 620mm
  • Easy Operation and Maintenance: User-friendly control system with accessible layout simplifies daily operations
  • Complete Auxiliary System Integration: Optimized hydraulic system, compressed air supply, and efficient cooling water circulation
  • Consistent Product Quality: Stable extrusion and precise temperature management ensure uniform wall thickness
Technical Specifications
Basic Specifications
System Item Unit Parameter
Basic specifications Applicable materials PE, PP, PVC, PA, and others
Maximum product volume L 10
Number of heads Set 1, 2, 3, 4
Machine dimensions (L×W×H) m 4 × 2.3 × 2.5
Machine weight ton 8.2
Mould Clamping System
Item Unit Parameter
Mould clamping force kN 150
Platen opening strokes mm 220 - 620
Plate stroke mm 540
Maximum mould size (W×H) mm 520 × 460
Extrusion System
Item Unit Parameter
Screw diameter mm 80
Screw slenderness ratio (L/D) 24
Plasticizing ability (HDPE) kg/h 90
Screw heating stages/zones Zone 4
Screw heating power kW 15.85
Screw fan power kW 0.28
Extrusion motor power kW 30
Head Specifications
Item Unit Parameter
Head heating stages/zones Zone 3
Head heating power kW 10
Energy Consumption
Item Unit Parameter
Total machine power kW 80
Oil motor power kW 18.7
Air pressure MPa 0.6 - 0.8
Compressed air volume m³/min 1.5
Cooling water volume L/min 40
Application Fields
The Meper80D / MP80D extrusion blow molding machine is extensively utilized in various industries to manufacture hollow plastic containers and industrial packaging items with capacities up to 10 liters.
  • Daily Chemical Packaging Industry: Detergent bottles, shampoo bottles, cleaning liquid containers, disinfectant bottles
  • Food & Beverage Industry: Food-grade containers including edible oil bottles, sauce bottles, drinking water containers
  • Pharmaceutical & Medical Packaging: Medicine bottles, disinfectant containers, medical liquid packages requiring high precision
  • Lubricant & Chemical Industry: Containers for engine oil, lubricants, antifreeze, pesticides, and chemical products
  • Industrial Packaging Sector: Industrial containers, tool bottles, automotive fluid tanks, functional hollow parts
  • Agrochemical & Agricultural Field: Pesticide bottles, fertilizer liquid containers, irrigation chemical containers
  • Cosmetic & Personal Care Packaging: Lotion bottles, cosmetic containers, personal care packaging with smooth surface finishes
  • Custom Hollow Plastic Products: Custom manufacturing of small drums, jerry cans, and specialty containers
