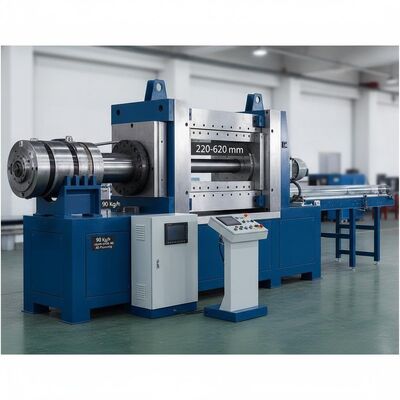

Extrusion Molding Machine with 220 to 620 Millimeters Platen Opening Strokes for HDPE EVOH and AD Material Processing and 90 Kg/h Plasticizing Capacity

Extrusion Molding Machine with 220 to 620 Millimeters Platen Opening Strokes for HDPE EVOH and AD Material Processing and 90 Kg/h Plasticizing Capacity
Extrusion Molding Machine with 220 to 620 Millimeters Platen Opening Strokes for HDPE EVOH and AD Material Processing and 90 Kg/h Plasticizing Capacity Extrusion Molding Machine with 220 to 620 Millimeters Platen Opening Strokes for HDPE EVOH and AD Material Processing and 90 Kg/h Plasticizing Capacity

Large Image :  Extrusion Molding Machine with 220 to 620 Millimeters Platen Opening Strokes for HDPE EVOH and AD Material Processing and 90 Kg/h Plasticizing Capacity

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Control System: PLC With Touch Screen Warranty: 1year
Applicable Materials: PE PP PVC PA Max Product Volume: 10L
Application: Granules Max Output Capacity: 50 Kg/h - 1000 Kg/h
Mould Clamping Force: 90KN Applicable Material: HDPE + EVOH+AD
Highlight:

HDPE extrusion molding machine

,

EVOH material processing machine

,

AD material extrusion machine

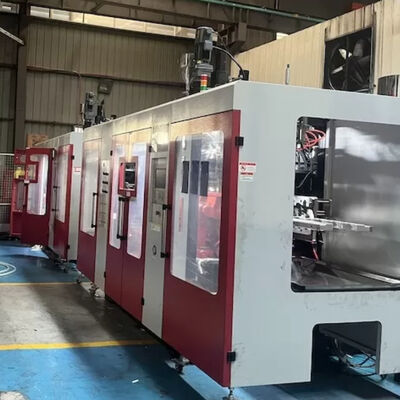

Meper80D (MP80D) Extrusion Blow Molding Machine
The Meper80D (MP80D) extrusion blow molding machine is a highly efficient industrial device designed specifically for manufacturing plastic containers with volumes of up to 10 liters. Its versatility allows it to work with a broad spectrum of materials including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyamide (PA).
Featuring an 80mm high-performance screw with plasticizing capacity up to 90 kilograms per hour for HDPE processing, the machine ensures stable melt quality and consistent output. Configurations ranging from one to four heads provide production flexibility and enable multi-cavity operations to enhance productivity.
Key Features
  • High Production Efficiency: 80mm screw with 90 kg/h plasticizing capacity ensures stable melt flow and high output for mass production of 10-liter containers
  • Flexible Multi-Head Configuration: Supports 1 to 4 head configurations for adjustable production capacity and multi-cavity operations
  • Strong Clamping System: 150 kN clamping force with reinforced platen structure reduces flash and ensures consistent product quality
  • Wide Material Compatibility: Processes PE, PP, PVC, and PA materials for diverse product ranges including bottles, containers, and industrial hollow products
  • Precision Temperature Control: Multi-zone heating system with 4 screw zones and 3 head zones ensures uniform heating and improved surface finish
  • Energy Efficient Operation: 80 kW total optimized power consumption with efficient heating and motor systems reduces energy costs
  • Durable Construction: 8.2-ton heavy-duty structure provides long service life and stable operation during continuous industrial use
  • Large Mold Compatibility: Supports molds up to 520 × 460 mm with platen opening strokes from 220 to 620 mm
  • Easy Operation: User-friendly control system and accessible layout simplify daily operations and maintenance
  • Complete System Integration: Optimized hydraulic system, 0.6-0.8 MPa compressed air, and 40 L/min cooling water circulation
Technical Specifications
Basic Specifications
Parameter Unit Specification
Applicable Materials PE, PP, PVC, PA, etc.
Max Product Volume L 10
Number of Heads SET 1, 2, 3, 4
Machine Dimensions (L×W×H) m 4 × 2.3 × 2.5
Machine Weight Ton 8.2
Mold Clamping System
Parameter Unit Specification
Mold Clamping Force kN 150
Platen Opening Strokes mm 220 - 620
Plate Stroke mm 540
Max Mold Sizes (W×H) mm 520 × 460
Extrusion System
Parameter Unit Specification
Screw Diameter mm 80
Screw Slenderness Ratio (L/D) 24
Plasticizing Ability (HDPE) kg/h 90
Screw Heating Zones Zone 4
Screw Heating Power kW 15.85
Screw Fan Power kW 0.28
Extrusion Motor Power kW 30
Head Heating Zones Zone 3
Head Heating Power kW 10
Energy Consumption
Parameter Unit Specification
Total Machine Power kW 80
Oil Motor Power kW 18.7
Air Pressure MPa 0.6 - 0.8
Compression Air Volume m³/min 1.5
Cooling Water Volume L/min 40
Application Fields
  • Daily Chemical Packaging: Detergent bottles, shampoo containers, cleaning liquid bottles, and household chemical containers
  • Food & Beverage Industry: Food-grade containers for edible oils, sauces, drinking water, and liquid packaging
  • Pharmaceutical & Medical: Medicine bottles, disinfectant containers, and medical liquid packaging
  • Lubricant & Chemical: Engine oil containers, lubricant bottles, antifreeze, and pesticide packaging
  • Industrial Packaging: Industrial containers, tool bottles, automotive fluid tanks, and functional hollow parts
  • Agrochemical & Agricultural: Pesticide bottles, fertilizer containers, and agricultural solution packaging
  • Cosmetic & Personal Care: Lotion bottles and cosmetic containers with smooth surface finish
  • Custom Hollow Products: Small drums, jerry cans, and specialized containers based on custom mold specifications
