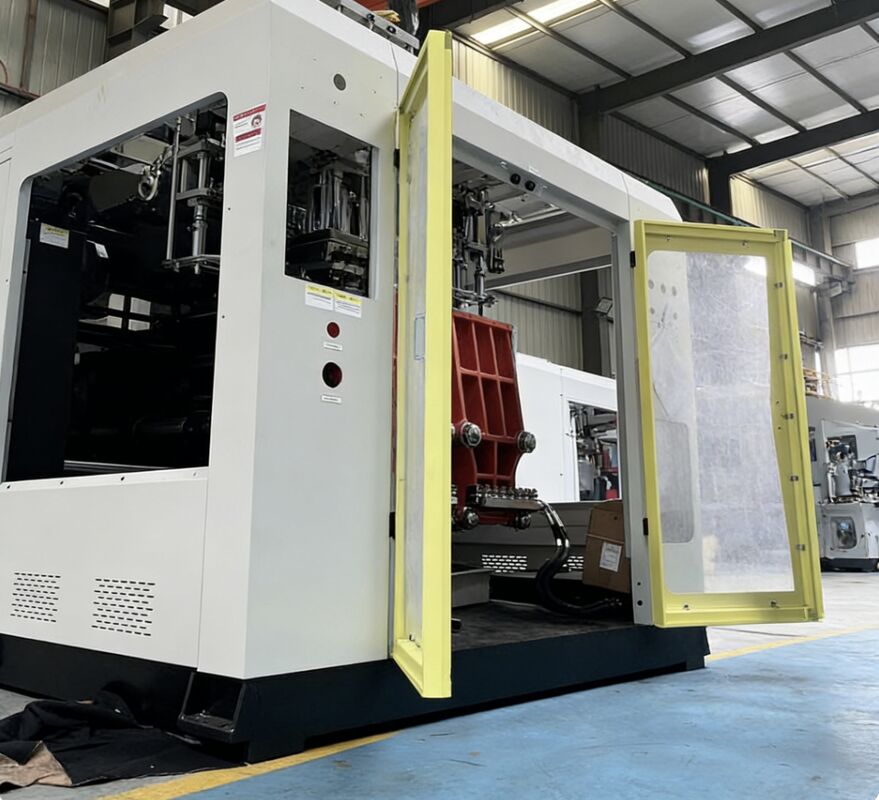

Product Description:
The Meper80D (MP80D) extrusion blow molding machine is engineered as a highly efficient industrial solution
tailored for the manufacturing of plastic containers with volumes up to 10 liters. Its versatility allows it
to work with a broad spectrum of materials such as PE, PP, PVC, and PA, making it an ideal choice for producing
packaging items, chemical storage containers, everyday bottles, and various industrial hollow products.
This machine features an 80mm high-performance screw, providing a plasticizing capacity of up to 90 kg/h when
processing HDPE. Such specifications guarantee a stable melt quality and a reliable, consistent output throughout
operations. Additionally, the system offers flexibility with support for anywhere from 1 to 4 heads, enabling
versatile production capacities and the option for multi-cavity production to maximize productivity.
Features:
High Production Efficiency
The machine is outfitted with an 80mm high-performance screw and boasts a plasticizing capacity of up to 90 kg per hour. This enables a stable melt flow and high output rates, making it exceptionally well-suited for the mass production of 10-liter containers.
Flexible Multi-Head Configuration
Featuring support for one to four heads, manufacturers can easily adjust the production capacity to meet various demands. Running multiple cavities simultaneously maximizes productivity and enhances operational flexibility.
Strong and Stable Clamping System
Equipped with a clamping force of 150 kN and a reinforced platen structure, this machine ensures excellent mold stability. This reduces flash defects and guarantees consistent product quality throughout production runs.
Wide Material Compatibility
The machine supports a range of materials including PE, PP, PVC, and PA. This versatility allows for the production of diverse items such as bottles, containers, chemical packaging, and various industrial hollow products all on a single unit.
Precision Temperature Control
Utilizing a multi-zone heating system with four zones for the screw and three zones for the head, the machine delivers uniform heating. This results in improved melt plasticization and enhances the surface finish quality of the final products.
Energy Efficient Operation
With an optimized total power consumption rated at 80 kW, the machine incorporates efficient heating and motor systems. This combination effectively reduces energy costs without compromising high performance.
Durable and Heavy-Duty Structure
Weighing 8.2 tons and built with a robust mechanical design, the machine offers long service life. Its sturdy construction reduces vibrations and ensures stable operation even during continuous industrial use.
Large Mold Compatibility
The machine accommodates molds up to 520 × 460 mm in size and allows platen opening strokes as large as 620 mm. This capability supports production of a wide variety of product shapes and sizes.
Easy Operation and Maintenance
Designed with a user-friendly control system and an accessible layout, the machine simplifies daily operations and maintenance tasks. It also facilitates quick mold changeovers, minimizing downtime.
Complete Auxiliary System Integration
Stable operation is further ensured through an optimized hydraulic system, a compressed air system operating between 0.6 and 0.8 MPa, and an efficient cooling water circulation system delivering 40 liters per minute.
Consistent Product Quality
Thanks to stable extrusion processes, precise temperature control, and reliable clamping mechanisms, the machine consistently produces finished products with uniform wall thickness and superior quality.
Ideal for Industrial Applications
This machine is perfectly suited for manufacturing industrial packaging products such as chemical containers, detergent bottles, lubricant bottles, and similar items up to 10 liters in capacity.
Technical Parameters:
Basic Specifications
General Information
|
System
|
Item
|
Unit
|
Basic Parameter
|
|
Basic Specifications
|
Applicable Materials
|
|
PE, PP, PVC, PA, etc.
|
|
|
Maximum Product Volume
|
L
|
10
|
|
|
Number of Heads
|
SET
|
1, 2, 3, 4
|
|
|
Machine Dimensions (L x W x H)
|
m
|
4 x 2.3 x 2.5
|
|
|
Machine Weight
|
Ton
|
8.2
|
Mould Clamping System
Clamping Parameters
|
System
|
Item
|
Unit
|
Basic Parameter
|
|
Mould Clamping System
|
Mould Clamping Force
|
kN
|
150
|
|
|
Platen Opening Stroke
|
mm
|
220 - 620
|
|
|
Plate Stroke
|
mm
|
540
|
|
|
Maximum Mould Size (W x H)
|
mm
|
520 x 460
|
Extrusion System
Extruder Specifications
|
System
|
Item
|
Unit
|
Basic Parameter
|
|
Extrusion System
|
Screw Diameter
|
mm
|
80
|
|
|
Screw Slenderness Ratio (L/D)
|
|
24
|
|
|
Plasticizing Capacity (HDPE)
|
kg/h
|
90
|
|
|
Screw Heating Stages / Zones
|
Zone
|
4
|
|
|
Screw Heating Power
|
kW
|
15.85
|
|
|
Screw Fan Power
|
kW
|
0.28
|
|
|
Extrusion Motor Power
|
kW
|
30
|
|
Head
|
Head Heating Stages / Zones
|
Zone
|
3
|
|
|
Head Heating Power
|
kW
|
10
|
Energy Consumption
Power and Utilities
|
System
|
Item
|
Unit
|
Basic Parameter
|
|
Energy Consumption
|
Total Machine Power
|
kW
|
80
|
|
|
Oil Motor Power
|
kW
|
18.7
|
|
|
Air Pressure
|
MPa
|
0.6 - 0.8
|
|
|
Compressed Air Volume
|
m³/min
|
1.5
|
|
|
Cooling Water Volume
|
L/min
|
40
|
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine is extensively utilized in various industries
for the production of hollow plastic containers and industrial packaging with capacities of up to 10 liters.
Its versatility makes it an excellent choice for manufacturing a wide range of products.
Daily Chemical Packaging Industry
This machine is ideal for creating packaging for daily chemical products such as detergent bottles,
shampoo bottles, cleaning liquid containers, disinfectant bottles, and other household chemical packaging needs.
Food & Beverage Industry
It is suitable for producing food-grade containers including edible oil bottles, sauce bottles, drinking water
containers, and other packaging solutions that require materials that ensure safety and hygiene.
Pharmaceutical & Medical Packaging
In the pharmaceutical and medical sectors, the Meper80D / MP80D is used to manufacture medicine bottles, disinfectant
containers, and packaging for medical liquids that demand high precision and consistent quality.
Lubricant & Chemical Industry
This machine is perfect for producing engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers,
and other chemical packaging products that require strong and durable materials.
Industrial Packaging Sector
It is also applicable in the industrial packaging field for creating industrial containers, tool bottles, automotive
fluid tanks, and functional hollow components used in various industrial applications.
Agrochemical & Agricultural Field
The Meper80D / MP80D finds wide usage in agriculture for manufacturing pesticide bottles, fertilizer liquid containers,
irrigation chemical containers, and packaging for various agricultural solutions.
Cosmetic & Personal Care Packaging
The machine is suitable for producing smooth and precisely shaped lotion bottles, cosmetic containers, and other
personal care packaging products that require a fine surface finish.
Custom Hollow Plastic Products
Additionally, it supports customized production of diverse hollow plastic items such as small drums, jerry cans,
and specialty containers tailored according to different mold designs.
