Product Description:

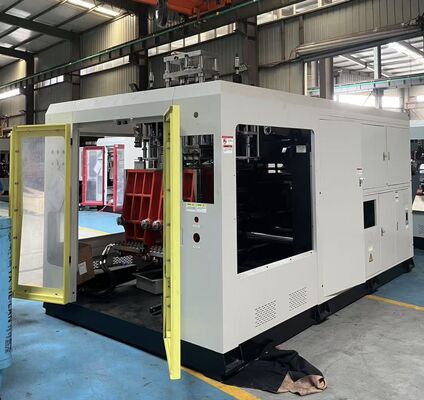

The Meper80D (MP80D) extrusion blow molding machine represents a highly efficient industrial solution tailored for manufacturing plastic containers with volumes of up to 10 liters. Its versatility is evident in its compatibility with a broad spectrum of materials, including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyamide (PA). This adaptability makes the MP80D ideal for producing packaging items, chemical storage containers, everyday-use bottles, and various industrial hollow products.
Featuring an 80mm high-performance screw, the machine delivers a plasticizing capacity of up to 90 kilograms per hour when processing high-density polyethylene (HDPE). This capacity ensures a stable melt quality throughout the operation, contributing to consistent and reliable output. Additionally, the MP80D system is designed with flexibility in mind, supporting configurations ranging from one to four heads. This multi-head capability allows for variable production scales and the use of multi-cavity molds, significantly enhancing productivity.
Features:
Machine Features Overview
High Production Efficiency
This machine is equipped with an 80mm high-performance screw, capable of plasticizing up to 90 kg per hour.
Such capacity ensures a stable melt flow as well as a high output rate, making it an excellent choice for the
mass production of 10-liter containers.
Flexible Multi-Head Configuration
Offering support for 1 to 4 heads, the machine allows manufacturers to easily adjust production capacity.
It is capable of running multiple cavities simultaneously, maximizing overall productivity.
Strong and Stable Clamping System
With a clamping force of 150 kN and a reinforced platen structure, the machine delivers exceptional mold stability.
This reduces the occurrence of flash and ensures consistent, high-quality products.
Wide Material Compatibility
The machine is compatible with a variety of materials including PE, PP, PVC, and PA.
This flexibility enables the production of different types of bottles, containers, chemical packaging, and industrial hollow products using a single machine.
Precision Temperature Control
Featuring a multi-zone heating system containing 4 zones for the screw and 3 zones for the head, it ensures uniform heating.
This promotes better melt plasticization and results in improved surface finishing of products.
Energy Efficient Operation
With an optimized total power consumption of just 80 kW, combined with efficient heating and motor systems,
the machine helps reduce energy costs without compromising performance.
Durable and Heavy-Duty Structure
Weighing 8.2 tons and built with a robust mechanical design, the machine guarantees a long service life.
It minimizes vibration and operates steadily under continuous industrial usage.
Large Mold Compatibility
The machine supports mold sizes up to 520 by 460 millimeters, with platen opening strokes reaching 620 millimeters.
This makes it suitable for producing a diverse range of product shapes and sizes.
Easy Operation and Maintenance
A user-friendly control system coupled with an accessible machine layout simplifies daily operations,
maintenance tasks, and quick mold changeovers.
Complete Auxiliary System Integration
Stability in operation is maintained by an optimized hydraulic system, a compressed air system operating at 0.6 to 0.8 MPa,
and an efficient cooling water circulation system with a flow rate of 40 liters per minute.
Consistent Product Quality
Thanks to stable extrusion, precise temperature management, and reliable clamping,
the machine consistently produces products with uniform wall thickness and superior finish quality.
Ideal for Industrial Applications
This equipment is perfectly suited for manufacturing a wide variety of industrial packaging products,
including chemical containers, detergent bottles, lubricant bottles, and more, all up to 10 liters in capacity.
Technical Parameters:
System Basic Parameters
Basic Specifications
General Information
|
Applicable Materials
|
PE, PP, PVC, PA, and others
|
|
Maximum Product Volume
|
10 Liters
|
|
Number of Heads
|
1, 2, 3, 4
|
|
Machine Dimensions (L×W×H)
|
4 × 2.3 × 2.5 meters
|
|
Machine Weight
|
8.2 Tons
|
Mould Clamping System
Parameters For Mould Clamping
|
Mould Clamping Force
|
150 kN
|
|
Platen Opening Stroke
|
220 - 620 mm
|
|
Plate Stroke
|
540 mm
|
|
Maximum Mould Size (W × H)
|
520 × 460 mm
|
Extrusion System
Extruder Specifications
|
Screw Diameter
|
80 mm
|
|
Screw Slenderness Ratio (L/D)
|
24
|
|
Plasticizing Ability (HDPE)
|
90 kg/h
|
|
Number of Screw Heating Zones
|
4
|
|
Screw Heating Power
|
15.85 kW
|
|
Screw Fan Power
|
0.28 kW
|
|
Extrusion Motor Power
|
30 kW
|
Head System Specifications
|
Number of Head Heating Zones
|
3
|
|
Head Heating Power
|
10 kW
|
Energy Consumption
Power and Consumption Parameters
|
Total Machine Power
|
80 kW
|
|
Oil Motor Power
|
18.7 kW
|
|
Air Pressure
|
0.6 - 0.8 MPa
|
|
Compressed Air Volume
|
1.5 m³/min
|
|
Cooling Water Flow Rate
|
40 L/min
|
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine serves a broad range of industries by enabling the production of hollow plastic containers and industrial packaging items with capacities up to 10 liters.
Daily Chemical Packaging Industry
This machine is ideally suited for manufacturing various household chemical packaging such as detergent bottles, shampoo bottles, cleaning liquid containers, disinfectant bottles, and similar items.
Food & Beverage Industry
It is excellent for producing food-grade containers, including edible oil bottles, sauce bottles, drinking water containers, and other packaging that demands safe and hygienic materials.
Pharmaceutical & Medical Packaging
The Meper80D / MP80D is utilized in the pharmaceutical sector to produce medicine bottles, disinfectant containers, and medical liquid packaging that require high precision and consistent quality.
Lubricant & Chemical Industry
It is perfectly suited for creating engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical packaging products that need to be strong and durable.
Industrial Packaging Sector
The machine is also applicable in manufacturing industrial containers, tool bottles, automotive fluid tanks, and various functional hollow parts meant for industrial purposes.
Agrochemical & Agricultural Field
It finds wide application in producing pesticide bottles, fertilizer liquid containers, irrigation chemical containers, and packaging for agricultural solutions.
Cosmetic & Personal Care Packaging
This equipment supports the production of lotion bottles, cosmetic containers, and other personal care packaging products that require a smooth surface finish and precise shaping.
Custom Hollow Plastic Products
Additionally, it allows for customized manufacturing of various hollow plastic items such as small drums, jerry cans, and specialty containers, adapting to different mold designs as needed.
