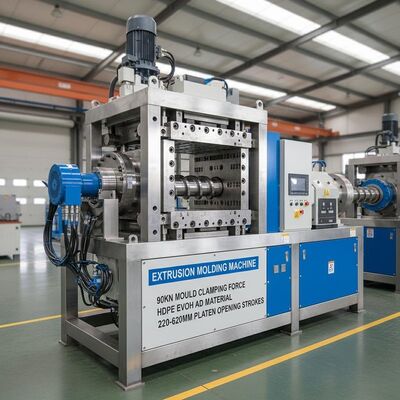

Extrusion Molding Machine with 90KN Mould Clamping Force for HDPE EVOH AD Material and 220-620MM Platen Opening Strokes

Extrusion Molding Machine with 90KN Mould Clamping Force for HDPE EVOH AD Material and 220-620MM Platen Opening Strokes
Extrusion Molding Machine with 90KN Mould Clamping Force for HDPE EVOH AD Material and 220-620MM Platen Opening Strokes Extrusion Molding Machine with 90KN Mould Clamping Force for HDPE EVOH AD Material and 220-620MM Platen Opening Strokes

Large Image :  Extrusion Molding Machine with 90KN Mould Clamping Force for HDPE EVOH AD Material and 220-620MM Platen Opening Strokes

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Max Product Volume: 10L Mould Clamping Force: 90KN
Applicable Materials: PE PP PVC PA Clamping Force: 120KN
Machine Weight: 8.2T Control System: PLC With Touch Screen
Touch Screen: SIEMENS Applicable Material: HDPE + EVOH+AD
Highlight:

HDPE extrusion molding machine

,

EVOH extrusion molding machine

,

90KN clamping force extrusion machine

Platen Opening Strokes 220-620mm Extrusion Molding Machine
90kN Mould Clamping Force | Supports HDPE, EVOH, AD Material Manufacturing
Product Overview

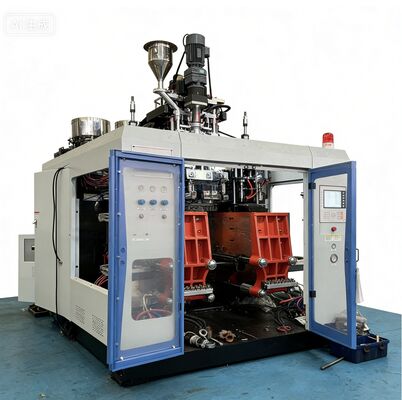

The Meper80D (MP80D) extrusion blow molding machine is a highly efficient industrial solution engineered for manufacturing plastic containers with capacities up to 10 liters. This versatile machine is compatible with a broad spectrum of materials including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyamide (PA), making it ideal for producing packaging materials, chemical containers, everyday-use bottles, and various industrial hollow items.
Featuring an 80mm high-performance screw, the Meper80D offers robust plasticizing capability reaching up to 90 kilograms per hour when processing high-density polyethylene (HDPE). This ensures consistently stable melt quality, critical for maintaining precision and quality in final products. The machine supports configurations with one to four heads, providing flexible production options for multi-cavity operation and enhanced productivity.
Key Features & Advantages
  • High Production Efficiency: 80mm high-performance screw capable of plasticizing up to 90 kg per hour for stable melt flow and high output
  • Flexible Multi-Head Configuration: Supports 1 to 4 head configurations for adjustable production capacity and multi-cavity operation
  • Strong Clamping System: 150 kN clamping force with reinforced platen design for exceptional mold stability and reduced flash
  • Wide Material Compatibility: Compatible with PE, PP, PVC, and PA materials for diverse product applications
  • Precision Temperature Control: Multi-zone heating system (4 zones for screw, 3 zones for head) for uniform heating and superior surface finish
  • Energy Efficient Operation: Optimized total power consumption of 80 kW with efficient heating and motor systems
  • Durable Heavy-Duty Structure: 8.2-ton robust mechanical design for long service life and stable operation
  • Large Mold Compatibility: Supports mold sizes up to 520 × 460 mm and platen opening strokes of 220-620 mm
  • Easy Operation & Maintenance: User-friendly control system with accessible layout for quick mold changeovers
  • Complete Auxiliary Integration: Optimized hydraulic system, compressed air (0.6-0.8 MPa), and efficient cooling water circulation (40 L/min)
Technical Specifications
Basic Parameters
Parameter Unit Value
Applicable Materials PE, PP, PVC, PA, etc.
Maximum Product Volume L 10
Number of Heads Set 1, 2, 3, 4
Machine Dimensions (L×W×H) m 4 × 2.3 × 2.5
Machine Weight Ton 8.2
Mould Clamping System
Parameter Unit Value
Mould Clamping Force kN 150
Platen Opening Strokes mm 220 - 620
Plate Stroke mm 540
Maximum Mould Sizes (W×H) mm 520 × 460
Extrusion System
Parameter Unit Value
Screw Diameter mm 80
Screw Slenderness Ratio (L/D) 24
Plasticizing Ability (HDPE) kg/h 90
Screw Heating Stages/Zones Zone 4
Screw Heating Power kW 15.85
Screw Fan Power kW 0.28
Extrusion Motor Power kW 30
Head Specifications
Parameter Unit Value
Head Heating Stages/Zones Zone 3
Head Heating Power kW 10
Energy Consumption
Parameter Unit Value
Total Machine Power kW 80
Oil Motor Power kW 18.7
Air Pressure MPa 0.6 - 0.8
Compression Air Volume m³/min 1.5
Cooling Water Volume L/min 40
Application Fields
The Meper80D / MP80D extrusion blow molding machine is extensively utilized across multiple sectors to produce hollow plastic containers and industrial packaging with capacities up to 10 liters. Its versatility and reliability make it ideal for manufacturers creating durable and precise plastic products.
  • Daily Chemical Packaging: Detergent bottles, shampoo containers, cleaning liquid bottles, disinfectant containers
  • Food & Beverage Industry: Edible oil bottles, sauce containers, drinking water bottles, liquid packaging
  • Pharmaceutical & Medical: Medicine bottles, disinfectant containers, medical liquid packaging
  • Lubricant & Chemical: Engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers
  • Industrial Packaging: Industrial containers, tool bottles, automotive fluid tanks, functional hollow components
  • Agrochemical & Agricultural: Pesticide bottles, fertilizer liquid containers, irrigation chemical packaging
  • Cosmetic & Personal Care: Lotion bottles, cosmetic containers, personal care packaging products
  • Custom Hollow Products: Small drums, jerry cans, specialty containers, custom mold designs
