Extrusion Molding Machine with 220-620MM Platen Opening Strokes for PE PP PVC PA Materials Delivering 50 Kg/h - 1000 Kg/h Output

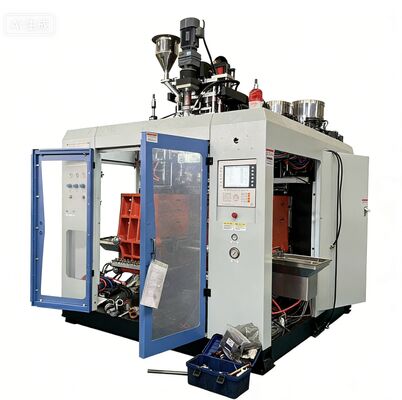

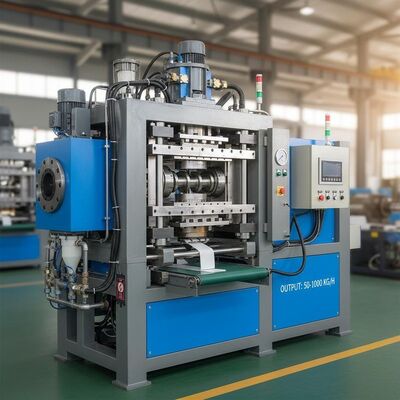

Large Image : Extrusion Molding Machine with 220-620MM Platen Opening Strokes for PE PP PVC PA Materials Delivering 50 Kg/h - 1000 Kg/h Output

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	80FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Station:	Double	Platen Opening Strokes:	220-620MM
Application:	Granules	Mould Clamping Force:	90KN
Touch Screen:	SIEMENS	Die Head Type:	Flat Die, Profile Die, Multi-layer Die
Control System:	PLC With Touch Screen	Max Output Capacity:	50 Kg/h - 1000 Kg/h
Highlight:	PE PP PVC molding extruder equipment , 220-620MM platen opening extruder , consistent output extrusion molding machine

Product Overview

The Meper80D (MP80D) extrusion blow molding machine is a high-efficiency industrial solution designed for manufacturing plastic containers with capacities up to 10 liters. With versatile compatibility for PE, PP, PVC, and PA materials, it's ideal for producing packaging materials, chemical containers, bottles, and various industrial hollow products.

Key Features

High Production Efficiency: 80mm high-performance screw with plasticizing capacity up to 90 kg/hour for HDPE
Flexible Configuration: Supports 1 to 4 head configurations for simultaneous multi-cavity production
Robust Clamping System: 150 kN clamping force with reinforced platen structure minimizes flash
Wide Material Compatibility: Processes PE, PP, PVC, and PA materials
Precision Temperature Control: Multi-zone heating system (4 zones screw, 3 zones head) for uniform plasticization
Energy Efficient: Optimized 80 kW power consumption with efficient heating and motor systems
Heavy-Duty Construction: 8.2-ton robust structure ensures stable operation and longevity
Large Mold Compatibility: Accommodates molds up to 520×460 mm with platen opening strokes of 220-620 mm
User-Friendly Operation: Accessible layout and control system simplifies maintenance and mold changes
Complete Auxiliary Systems: Optimized hydraulic, compressed air (0.6-0.8 MPa), and cooling water (40 L/min) systems

Technical Specifications

Parameter	Specification
Compatible Materials	PE, PP, PVC, PA
Maximum Product Volume	10 Liters
Head Configuration Options	1, 2, 3, or 4 Heads
Machine Dimensions (L×W×H)	4.0 × 2.3 × 2.5 meters
Machine Weight	8.2 Tons
Clamping Force	150 kN
Platen Opening Stroke	220-620 mm
Plate Stroke	540 mm
Maximum Mold Size	520 × 460 mm
Screw Diameter	80 mm
L/D Ratio	24:1
Plasticizing Capacity (HDPE)	90 kg/hour
Total Machine Power	80 kW
Oil Motor Power	18.7 kW
Air Pressure Requirement	0.6-0.8 MPa
Cooling Water Consumption	40 L/min

Application Industries

Daily Chemical Packaging - Detergent bottles, shampoo containers, cleaning liquid bottles

Food & Beverage - Edible oil bottles, sauce containers, drinking water bottles

Pharmaceutical & Medical - Medicine bottles, disinfectant containers, medical liquid packaging

Lubricant & Chemical - Engine oil bottles, lubricant containers, pesticide containers

Industrial Packaging - Industrial containers, tool bottles, automotive fluid tanks

Agricultural - Pesticide bottles, fertilizer containers, irrigation chemical packaging

Cosmetic & Personal Care - Lotion bottles, cosmetic containers, personal care products

Custom Hollow Products - Small drums, jerry cans, specialty containers
