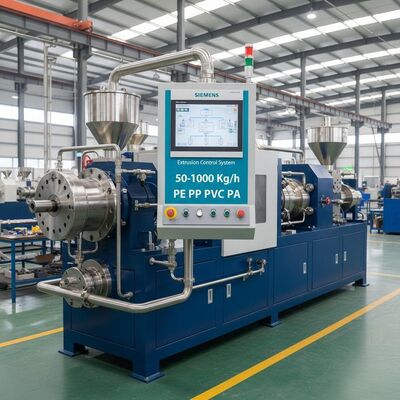

50 Kg/h to 1000 Kg/h Extrusion Molding Machine with Siemens Touch Screen for PE PP PVC PA Materials

50 Kg/h to 1000 Kg/h Extrusion Molding Machine with Siemens Touch Screen for PE PP PVC PA Materials
50 Kg/h to 1000 Kg/h Extrusion Molding Machine with Siemens Touch Screen for PE PP PVC PA Materials 50 Kg/h to 1000 Kg/h Extrusion Molding Machine with Siemens Touch Screen for PE PP PVC PA Materials

Large Image :  50 Kg/h to 1000 Kg/h Extrusion Molding Machine with Siemens Touch Screen for PE PP PVC PA Materials

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Platen Opening Strokes: 220-620MM Warranty: 1year
Touch Screen: SIEMENS Die Head Type: Flat Die, Profile Die, Multi-layer Die
Clamping Force: 120KN Mould Clamping Force: 90KN
Applicable Materials: PE PP PVC PA Station: Double
Highlight:

PE PP PVC extrusion molding machine

,

Siemens touch screen extrusion machine

,

high capacity extrusion molding machine

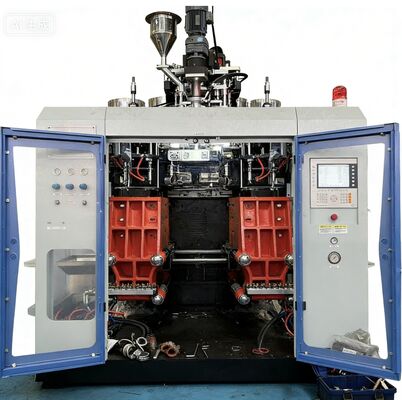

MP80D Extrusion Blow Molding Machine
The Meper80D (MP80D) extrusion blow molding machine delivers high-efficiency industrial performance for manufacturing plastic containers with capacities up to 10 liters. This versatile system processes polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyamide (PA), making it ideal for packaging items, chemical containers, bottles, and industrial hollow products.
Featuring an 80mm high-performance screw with plasticizing capacity up to 90 kg/h for HDPE, the MP80D ensures stable melt quality and uniform output. Configurable with 1 to 4 heads for multi-cavity operations, it significantly enhances productivity and operational efficiency.
Key Features & Benefits
  • High Production Efficiency: 80mm screw delivers up to 90 kg/h plasticizing capacity with stable melt flow for mass production of 10-liter containers
  • Flexible Multi-Head Configuration: Supports 1-4 heads for adjustable production capacity and multi-cavity operations
  • Robust Clamping System: 150 kN clamping force with reinforced platen design ensures mold stability and reduces flash defects
  • Wide Material Compatibility: Processes PE, PP, PVC, and PA for diverse containers and industrial hollow products
  • Precision Temperature Control: Multi-zone heating system (4 zones on screw, 3 zones on head) for uniform heating and superior surface finish
  • Energy Efficient Operation: Optimized 80 kW total power consumption reduces energy costs while maintaining performance
  • Heavy-Duty Construction: 8.2-ton robust structure minimizes vibration and ensures long service life
  • Large Mold Compatibility: Accommodates molds up to 520×460 mm with platen opening strokes to 620 mm
  • User-Friendly Operation: Accessible layout simplifies maintenance and quick mold changes
  • Complete System Integration: Optimized hydraulic, compressed air (0.6-0.8 MPa), and cooling water (40 L/min) systems
Technical Specifications
Basic Parameters
Parameter Unit Value
Applicable Materials PE, PP, PVC, PA
Maximum Product Volume L 10
Number of Heads Set 1, 2, 3, 4
Machine Dimensions (L×W×H) m 4×2.3×2.5
Machine Weight Ton 8.2
Mould Clamping System
Parameter Unit Value
Mould Clamping Force kN 150
Platen Opening Stroke mm 220-620
Plate Stroke mm 540
Maximum Mould Size (W×H) mm 520×460
Extrusion System
Parameter Unit Value
Screw Diameter mm 80
Screw Slenderness Ratio (L/D) 24
Plasticizing Capacity (HDPE) kg/h 90
Screw Heating Zones Zone 4
Screw Heating Power kW 15.85
Screw Fan Power kW 0.28
Extrusion Motor Power kW 30
Head System
Parameter Unit Value
Head Heating Zones Zone 3
Head Heating Power kW 10
Energy Consumption
Parameter Unit Value
Total Machine Power kW 80
Oil Motor Power kW 18.7
Air Pressure MPa 0.6-0.8
Compressed Air Volume m³/min 1.5
Cooling Water Volume L/min 40
Application Fields
  • Daily Chemical Packaging: Detergent bottles, shampoo containers, cleaning liquid vessels, disinfectant bottles
  • Food & Beverage Industry: Edible oil bottles, sauce containers, drinking water bottles, food-grade liquid packaging
  • Pharmaceutical & Medical Packaging: Medicine bottles, disinfectant containers, medical liquid packaging
  • Lubricant & Chemical Industry: Engine oil bottles, lubricant containers, antifreeze bottles, pesticide bottles
  • Industrial Packaging Sector: Industrial containers, tool bottles, automotive fluid tanks, functional hollow components
  • Agrochemical & Agricultural Field: Pesticide bottles, fertilizer liquid containers, irrigation chemical vessels
  • Cosmetic & Personal Care: Lotion bottles, cosmetic containers with smooth surface finish
  • Custom Hollow Plastic Products: Small drums, jerry cans, specialty containers with adaptable mold designs

Tag:

80mm Screw Diameter Extrusion Molding Machine,

80mm Extrusion Molding Machine,

10L Extrusion Molding Machine
