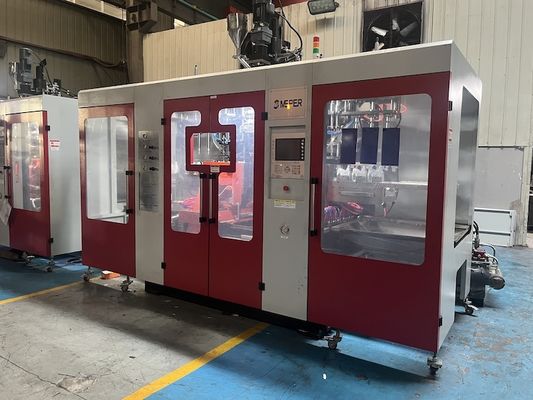

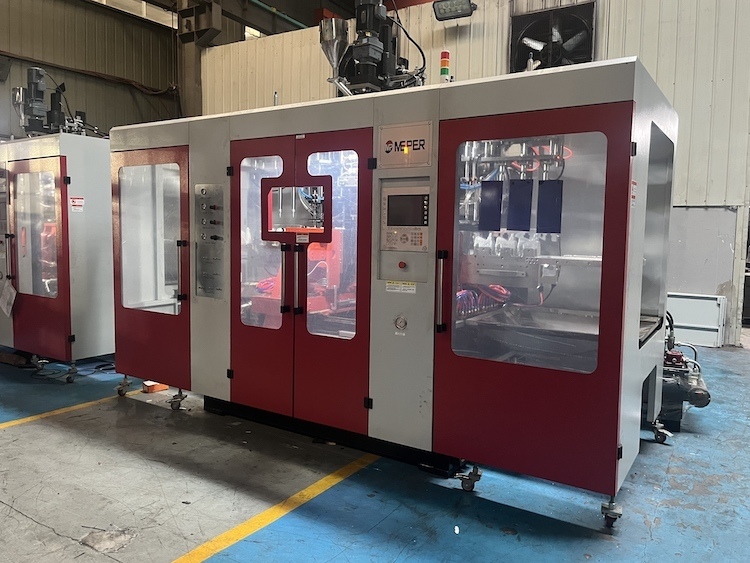

MEPER 80FD Automatic Blow Moulding Machine

MEPER 80FD Automatic Blow Moulding Machine
MEPER 80FD Automatic Blow Moulding Machine

Large Image :  MEPER 80FD Automatic Blow Moulding Machine

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Applicable Material: HDPE + EVOH+AD Plate Stroke: 540m M
Keyword: Hdpe Bottle Blowing Machine Clamping Force: 120KN
Type: Plastic Processing Machinery Layer: FOUR
Motor: Siemens Container Capacity: 500ML
Highlight:

automatic blow moulding machine

,

extrusion molding machine with warranty

,

MEPER 80FD molding equipment

MEPER 80FD Automatic Blow Moulding Machine
Product Description

An Extrusion Blow Molding Machine is a specialized piece of equipment designed for shaping plastic materials. It starts by melting plastic resin, commonly using types such as HDPE, LDPE, polypropylene (PP), or PVC.

Once the plastic is melted, the machine extrudes it into a hollow tube known as a parison. This parison serves as the foundation for the molding process.

The next step involves closing a mold around the parison. With the mold securely in place, air is blown into the parison, causing it to expand and take the exact shape of the mold cavity.

After the plastic has cooled and solidified within the mold, the machine then ejects the finished hollow product, ready for further processing or use.

Key Features
  • Accommodates hollow products of various sizes, including large, medium, and small items
  • Supports processing of numerous plastic types for diverse material requirements
  • Capable of handling thick-wall containers for sturdy, durable packaging solutions
  • Production in single-layer or multi-layer formats (up to six or more layers)
  • High durability design ensures stable, continuous operation with minimal downtime
  • Available in both single-station and double-station configurations
Technical Parameters
80FDE-4S(100)
SPECIFICATION MATERIAL PE
MAX CONTAINER CAPACITY L 500ML
NUMBER OF DIE set 4
MACHINE DIMENSION(LxWxH) M 3.82x4x2.5
TOTAL WEIGHT ton 8.6
CLAMPING UNIT
CLAMPING FORCE kN 120
PLATEN OPENING mm 240-600
TOGGLE STROKE mm 540
MAX MOULD SIZE (WxH) mm 480x500
EXTRUDER UNIT
SCREW DIAMETER mm 75
SCREW L/D RATIO L/D 24
PLASTICIZING CAPACI(HDPE) Kg/h 85
SCREW HEATING ZONE zone 3
SCREW HEATING POWER kW 15.3
FAN POWER kW 0.14
EXTRUDER MOTOR POWER kW 22
DIE HEAD
DIE HEAD HEATING ZONE zone 15
POWER OF DIE HEAD HEATING kW 16.5
MAX DIAMETER OF MOUTH MOLD mm 35
ENERGY-CONSUMPTION
TOTAL POWER OF MACHINE kW 72
POWER OF OIL PUMP MOTO kW 15
AIR PRESSURE Mpa 0.6-0.8
CONSUMPTION COMPRESSION AIR m3/min 1.5
CONSUMPTION COOLING WATER m3/min 0.4
Applications

Extrusion blow molding is widely used to create various plastic containers and objects, including:

  • HDPE bottles for detergents, shampoos, and yogurts
  • Containers for motor oils and lubricants
  • Bottles for chemicals and pesticides
  • Large-capacity containers (5-30 liter jerry cans)
  • Water tanks and fuel tanks
  • Toys and hollow objects like plastic balls, floats, and cones
Frequently Asked Questions
What is the brand and model number of this extrusion molding machine?
The extrusion molding machine is from the brand MEPER, and the model number is 80FD.
Does the MEPER 80FD extrusion molding machine have any certifications?
Yes, the machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for the MEPER 80FD?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for this product?
The machine comes with standard packaging, and the delivery time is typically 25-35 working days.
What payment terms does MEPER accept for the 80FD extrusion molding machine?
Payment terms include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
