Product Description:

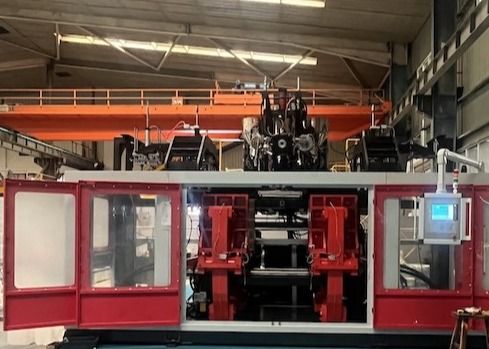

MP Plastic Blow Molding Machine is designed for processing various plastic hollow products made of high-molecular materials. This machine is capable of producing hollow items ranging from 5 milliliters to 100 liters, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. It is equipped to handle a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA, ensuring optimal processing for each material type.
The versatility of the MP Plastic Blow Molding Machine makes it suitable for a wide range of applications, offering efficient production of diverse hollow plastic products. Whether you need to manufacture containers, toys, furniture components, or automotive parts, this machine delivers excellent results with precision and consistency.
Key Features of Modern EBM Machines:
-
Servo-Driven Systems – For precise parison control and energy efficiency.
-
Multi-Layer Capability – For producing barrier bottles (e.g., EVOH for oxygen protection).
-
PLC & HMI Controls – Automated adjustments for consistency.
-
Quick Mold Change Systems – Reduces downtime between production runs.
-
Energy Recovery Systems – Lowers power consumption.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
✔ Packaging: Bottles, jars, cans, jerrycans.
✔ Automotive: Fuel tanks, air ducts, fluid reservoirs.
✔ Industrial: Drums, IBC totes, chemical containers.
✔ Consumer Goods: Toys, household items.
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name is MEPER.
Q: What is the model number of the Extrusion Molding Machine?
A: The model number is MP110FD.
Q: Where is the Extrusion Molding Machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: It is certified with CE/ISO9001:2008.
Q: What are the Payment Terms for purchasing the Extrusion Molding Machine?
A: The payment terms accepted are L/C and T/T.
