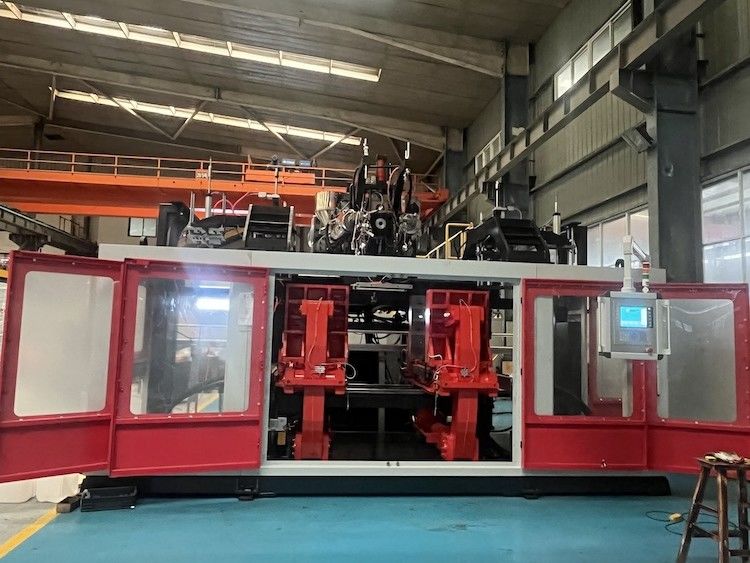

Product Description:
An MP Plastic Blow Molding Machine refers to a type of blow molding equipment used in the plastic manufacturing industry to produce hollow plastic parts, such as bottles, containers, and other packaging products. The "MP" designation could stand for Multi-Purpose, Multi-Parison, or be part of a specific model series from a manufacturer.
Features:
a) The extruding device utilizes a variable frequency motor to accommodate the changing rotation requirements of the screw during the blowing process. It can make use of a screw with a high slenderness ratio to process various materials efficiently, boasting strong plasticizing ability, high production capacity, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer for quick, stable, and uniform heating.
b) The combined extrusion system between two extrusion machines allows for the installation of different heads to produce blown products with a visible strip line or double layers.
c) The mould clamping device adopts a toggle-type mechanism and linear guider. With a double station design, the mould platen moves quickly and steadily for enhanced efficiency.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion molding machines are widely used in manufacturing to produce continuous profiles with a fixed cross-section. Here are some key applications across various industries:
- Plastic Industry
- Construction & Building Materials
Advantages of Extrusion Molding
FAQ:
Q: What is the brand name of this Extrusion Molding Machine?
A: The brand name of this Extrusion Molding Machine is MEPER.
Q: What is the model number of this machine?
A: The model number of this machine is MP110FD.
Q: Where is this Extrusion Molding Machine manufactured?
A: This machine is manufactured in China.
Q: What certifications does this machine have?
A: This machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for this Extrusion Molding Machine?
A: The minimum order quantity for this machine is 1 set.
