Product Description:

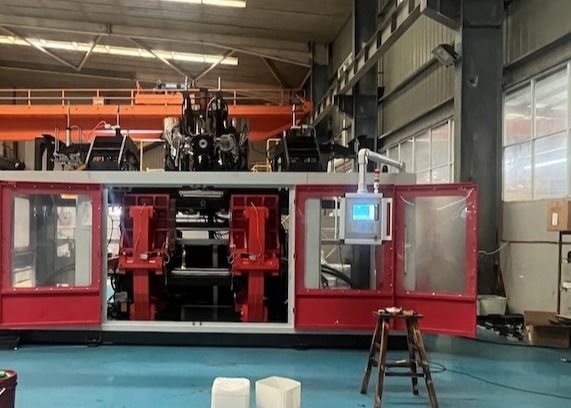

The MP Plastic Blow Molding Machine is designed for processing various plastic hollow products made from high molecular materials. This machine is capable of producing hollow items ranging in size from 5 milliliters to 100 liters. The wide array of products that can be manufactured includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
One of the key features of this machine is its ability to work with a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA. Whether you need to blow-mold different plastic materials, this machine can deliver outstanding results. It is known for providing a perfect manufacturing process with consistent quality output.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion molding machines play a pivotal role in manufacturing processes by producing continuous profiles with a consistent cross-section. These machines find various applications in several industries:
1. Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name of the Extrusion Molding Machine is MEPER.
Q: What is the minimum order quantity for the Extrusion Molding Machine?
A: The minimum order quantity for the Extrusion Molding Machine is 1 set.
