Product Description:

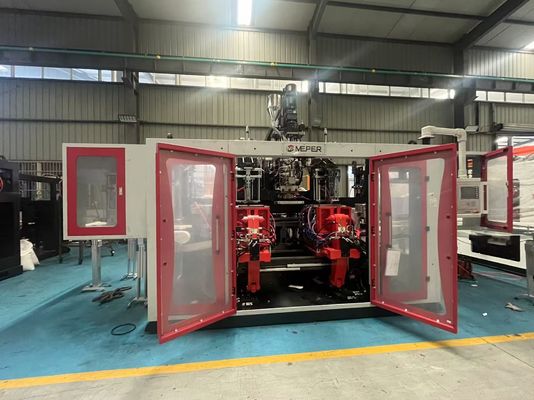

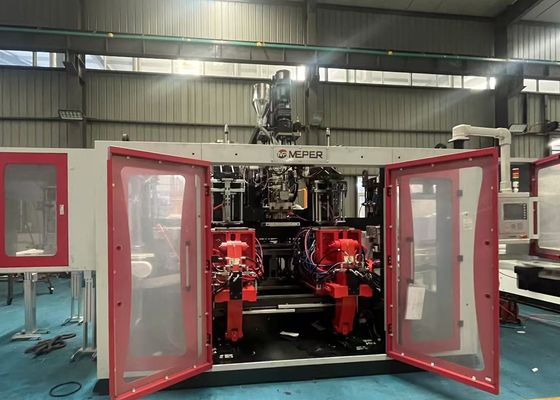

The MP plastic blow molding machine is designed to process various types of plastic hollow products made of high molecular materials. It is capable of manufacturing hollow products ranging from 5 milliliters to 100 liters in volume. These products encompass a wide array of items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive components. The machine is versatile in its ability to work with multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring optimal manufacturing processes.
Features:
a) The extruding device is equipped with a variable frequency motor to meet the rotation change requirements of the screw during the blowing process. A screw with a high slenderness ratio is capable of processing various materials efficiently, with excellent plasticizing ability, high production output, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring rapid, stable, and uniform heating.
b) By incorporating different heads into a combined extrusion system between two extrusion machines, it is possible to produce blown products with a visible strip line or double layers.
c) The mould clamping device utilizes a toggle type and linear guider design. With a double station configuration, the mould platen moves at a faster and more stable speed.
d) An improved design of the hydraulic oil loop results in power saving, rapid operation, and stability.
e) The installation and maintenance of hydraulic elements are convenient, with a removable and mobile oil tank provided for added ease.
f) The entire machine is computer-controlled, with a double proportional control hydraulic system. It includes features such as fault automatic alarm, reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.
g) Three operation modes - "Manual," "Semi Auto," and "Full Auto" are available for selection.
h) The safety door incorporates electric and mechanical safety devices to prevent mould closing when the safety door is open, ensuring safe and reliable operation.
i) This machine offers two blowing functions: straight cutting and oblique cutting.
j) Oblique blowing function
Technical Parameters:
parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:
MEPER 80FD Plastic Extrusion Molding Machine is a versatile and efficient equipment designed for various product application occasions and scenarios. With its advanced technology and reliable performance, this automatic extrusion blow molding machine is suitable for a wide range of industries and production needs.
Manufactured in China, the MEPER 80FD model boasts a CE/ISO9001:2008 certification, ensuring high quality and compliance with international standards. The minimum order quantity is 1 set, and the price is negotiable, making it accessible for both small-scale and large-scale operations.
Thanks to its standard packaging and delivery time of 25-35 work days, customers can expect timely and secure shipment of the machine. Payment terms include L/C and T/T, providing flexibility for financial transactions. With a supply ability of 100 sets per month, the MEPER 80FD can meet the demands of various production scales.
The machine features a plate stroke of 600mm and a machine dimension of 3.5X5.6X2.65M, offering ample space for manufacturing processes. The platen opening strokes range from 240-630MM, providing versatility in mold sizes and configurations. Weighing 13 tons, the machine is sturdy and durable, ensuring long-term performance.
With a mould clamping force of 150KN, the MEPER 80FD Plastic Extrusion Molding Machine is capable of producing a wide range of plastic products with precision and efficiency. Whether used in the packaging industry, automotive sector, or other manufacturing fields, this machine delivers consistent results and high productivity.
Support and Services:
The Product Technical Support and Services for the Extrusion Molding Machine include:
- Installation guidance and setup assistance to ensure proper functionality.
- Troubleshooting support to address any operational issues that may arise.
- Regular maintenance services to keep the machine running smoothly.
- Training programs for operators to maximize productivity and efficiency.
- Access to a knowledgeable technical team for any inquiries or concerns.
