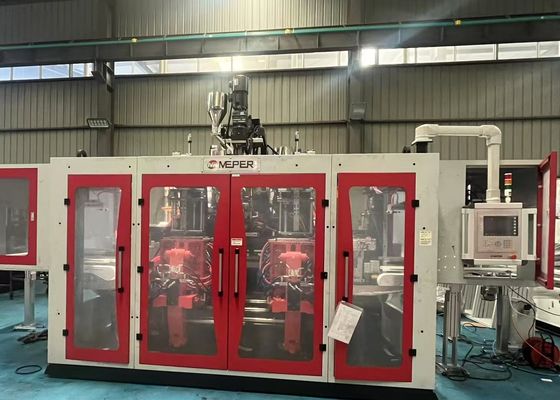

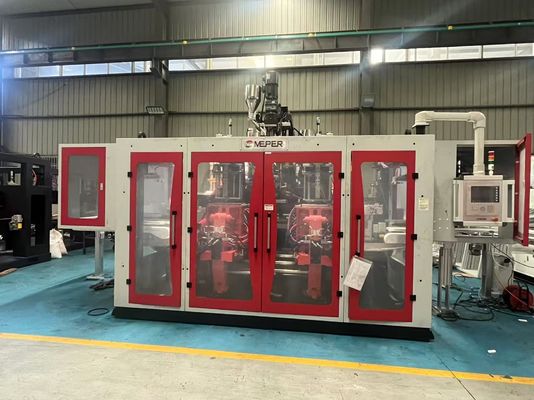

Product Description:
The MP plastic blow molding machine is designed for processing a wide range of plastic hollow products with high molecular weight. It is capable of producing hollow products ranging from 5 milliliters to 100 liters, covering items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
This machine is versatile in that it can handle various materials, including PE, PP, PVC, PA, PC, PS, and EVA, while ensuring a flawless manufacturing process.
Features:
a) The extruding device utilizes a variable frequency motor to meet the needs of screw rotation adjustment during the blowing process. It supports the use of high slenderness ratio screws for processing various materials with excellent plasticizing capability, high productivity, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer for quick, stable, and uniform heating.
b) By incorporating different heads into a combined extrusion system between two extrusion machines, products can be blown with a striped line view or double layers.
c) The mould clamping device employs a toggle type and linear guide. It is double station, allowing the mould platen to move more swiftly and steadily.
d) Enhanced design of the hydraulic oil loop ensures power efficiency, rapid operation, and stability.
e) Hydraulic element installation and maintenance are easy. The machine is equipped with a removable and mobile oil tank.
f) The entire machine is computer-controlled with a hydraulic system that features double proportional control. It includes fault automatic alarm, ensuring reliable operation, high automation, and storage of data for up to 40 sets of moulds.
g) Three operational modes - "Manual," "Semi Auto," and "Full Auto" - can be selected.
h) The safety door incorporates electric and mechanical safety devices to prevent mould closing when the safety door is open, ensuring safe and reliable operation.
i) This machine offers two blowing functions: straight cutting and oblique cutting.
j) oblique blowing function
Technical Parameters:
parameters
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP |
| Max product volume | L | 10 |
| Number of heads | SET | 3 |
Machine dimension (LxWxH) | M | 3.5X5.6X2.65 |
| Machine weight | TON | 13 |
| |
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 240-630 |
| Plate stroke | MM | 600 |
| Max mould sizes(WxH) | MM | 580x450 |
| |
Extrusion system
| Screw diameter | MM | 90 |
| Screw slenderness ratio | L/D | 26 |
| Plasticizing ability (HDPE) | KG/H | 140 |
| Screw heating stage/zone | Zone | 4 |
| Screw heating power | KW | 20 |
| Screw fan power | KW | 0.56 |
| Extrusion motor power | KW | 45 |
| | |
Head | Head heating stage/zone | Zone | 15 |
| Head heating power | KW | 16.8 |
| |
Energy consumption | Total machine power | KW | 117 |
| Oil motor power | KW | 29 |
| Air pressure | MPA | 0.6-1 |
| Compression air volume | M3/min | 1.2 |
| Cooling water volume | L/min | 1000 |
Applications:
MEPER Extrusion Molding Machine Model 80FD is a versatile and efficient machine suitable for various product application occasions and scenarios. Designed and manufactured in China, this machine boasts CE/ISO9001:2008 certifications, ensuring high quality and performance standards.
The MEPER 80FD is ideal for producing a wide range of products using materials such as PE and PP. Its capabilities make it suitable for applications in industries requiring auto deflashing blow molding machines and fully automatic blow moulding machines.
With a minimum order quantity of 1 set and negotiable pricing, the MEPER 80FD offers flexibility for different production needs. The machine's standard packaging and delivery time of 25-35 work days further enhance its convenience and accessibility.
Payment terms for the MEPER 80FD include L/C and T/T, making transactions smooth and secure. Additionally, with a supply ability of 100 sets per month, customers can rely on consistent availability of this high-quality extrusion molding machine.
The machine's dimensions of 3.5 x 5.6 x 2.65 meters, mould clamping force of 150KN, 3 sets of heads, and plate stroke of 600mm provide the necessary specifications for efficient and precise production processes.
Whether for small-scale operations or large-scale manufacturing, the MEPER 80FD Extrusion Molding Machine offers reliability, performance, and versatility in various production scenarios. Choose MEPER for your extrusion molding needs and experience the quality of a trusted brand.
Support and Services:
Product Technical Support and Services for Extrusion Molding Machine:
- Troubleshooting assistance for machine operation and performance issues
- Maintenance guidance and recommendations
- Training programs for operators and maintenance personnel
- Spare parts availability and procurement
- Software updates and technical documentation
