Product Description:
MP Plastic Blow Molding Machine is designed for processing a wide range of plastic hollow products with high molecular weight. This machine is capable of manufacturing hollow items ranging from 5 milliliters to 100 liters. The produced items encompass a variety of products like bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive components. The machine can effectively handle various materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring optimal manufacturing processes.
Features:
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-"Manual", "Semi Auto", "Full Auto", are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
j) Oblique blowing function
Technical Parameters:
parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:

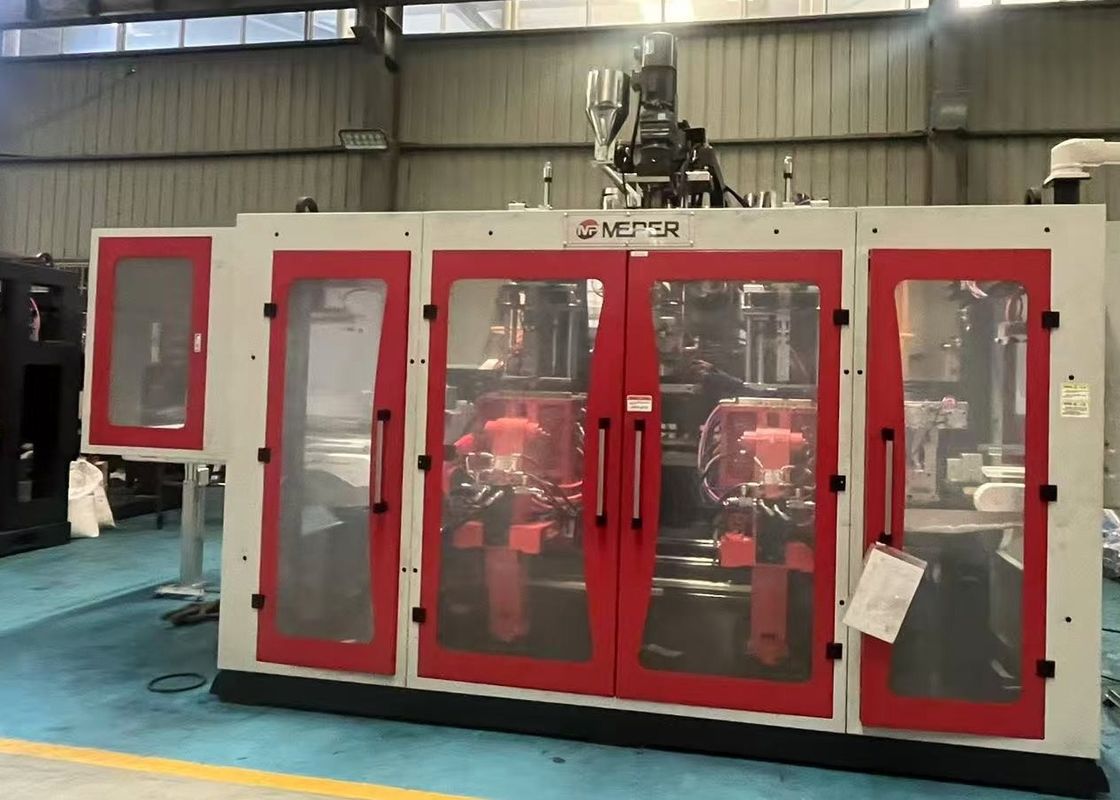

When it comes to the MEPER 80FD Plastic Extrusion Molding Machine, there are numerous product application occasions and scenarios where this innovative machine can be utilized effectively. Whether in industrial settings or manufacturing facilities, the MEPER 80FD offers a range of features and capabilities that make it a versatile and reliable choice for various production needs.
With its origin in China, the MEPER 80FD Plastic Extrusion Molding Machine is designed to meet the highest quality standards, holding certifications such as CE/ISO9001:2008. This ensures that the machine meets all necessary safety and performance requirements, making it suitable for a wide range of applications.
The machine's minimum order quantity of 1 set, negotiable price, and standard packaging details make it accessible for different businesses looking to incorporate a Plastic Extrusion Machine into their operations. The delivery time of 25-35 work days, along with payment terms including L/C and T/T, further add to the convenience and flexibility of acquiring the machine.
With a supply ability of 100 sets per month, the MEPER 80FD Plastic Extrusion Molding Machine is readily available for high-volume production demands. Its impressive specifications, such as a max product volume of 10L, 3SET number of heads, 600mm plate stroke, 150KN mould clamping force, and machine dimensions of 3.5X5.6X2.65M, make it suitable for a variety of scenarios.
One of the ideal application scenarios for the MEPER 80FD Plastic Extrusion Molding Machine is in the production of various plastic products, including containers, bottles, and other items requiring precision molding. Additionally, the machine can be used in auto deflashing blow molding processes, showcasing its versatility and efficiency in different manufacturing settings.
Support and Services:
Product Technical Support and Services:
Our Extrusion Molding Machine product comes with comprehensive technical support and services to ensure smooth operation and maintenance. Our team of experts is available to assist with any technical issues, troubleshooting, and optimization of the machine's performance.
Services include:
- Installation support
- Training for operators and maintenance staff
- Regular maintenance and servicing
- Technical consultations
- Replacement parts and upgrades
We are dedicated to providing top-notch support to maximize the efficiency and lifespan of your Extrusion Molding Machine.
