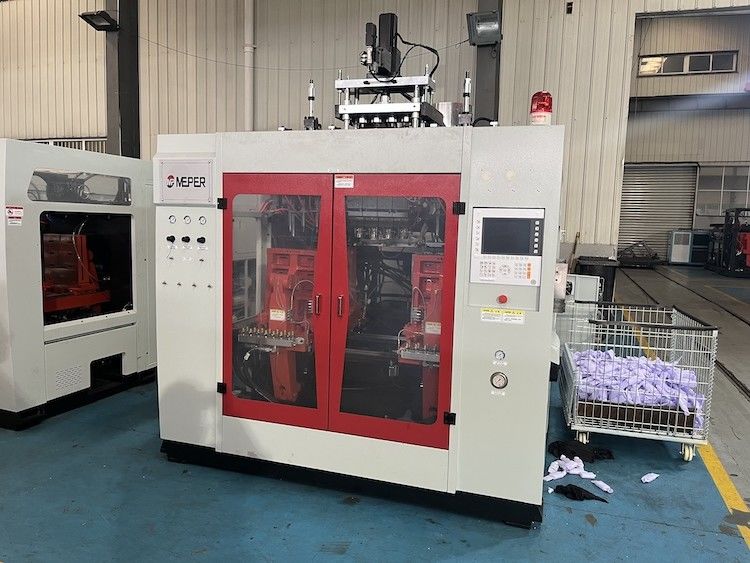

Customizable Plasticizing Ability 90 HDPE Molding Extruder Equipment with 150KN Mould Clamping Force
Product Description:
MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is ideal for manufacturing hollow items ranging from 5 milliliters to 100 liters. Target products encompass a wide range, including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive components. This machine is capable of molding different materials such as PE, PP, PVC, PA, PC, PS, and EVA, while ensuring flawless production processes.
Features:
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes - “Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
1.2 Major technical parameters
System Item Unit Basic Parameter
Basic specifications
- Applicable materials: PE, PP, PVC, PA…
- Max product volume: 10L
- Number of heads: 1,2,3,4
- Machine dimension (LxWxH): 4x2.3x2.5
- Machine weight: 8.2 TON
Mould clamping system
- Mould clamping force: 150 KN
- Platen opening strokes: 220-620 MM
- Plate stroke: 540 MM
- Max mould sizes(WxH): 520x460 MM
Extrusion system
- Screw diameter: 80 MM
- Screw slenderness ratio (L/D): 24
- Plasticizing ability (HDPE): 90 KG/H
- Screw heating stage/zone: 4
- Screw heating power: 15.85 KW
- Screw fan power: 0.28 KW
- Extrusion motor power: 30 KW
Head
- Head heating stage/zone: 3
- Head heating power: 10 KW
Energy consumption
- Total machine power: 80 KW
- Oil motor power: 18.7 KW
- Air pressure: 0.6-0.8 MPA
- Compression air volume: 1.5 M3/min
- Cooling water volume: 40 L/min
Applications:
MEPER MP80D Plastic Extrusion Machine is a versatile and reliable piece of equipment that is suitable for a wide range of applications. With its origins in China, this machine is CE/ISO9001:2008 certified, ensuring high quality and compliance with international standards.
The MP80D model is designed for various product application occasions and scenarios where extrusion molding is required. It is particularly well-suited for the production of items made from materials such as PE, PP, PVC, and PA. Whether you need to manufacture containers, pipes, profiles, or other plastic products, this machine offers the precision and efficiency needed for the job.
Thanks to its screw diameter of 80mm and screw slenderness ratio of 24, the MEPER MP80D can handle a wide range of production needs with ease. The plate stroke of 540mm provides flexibility for different molding requirements, making it ideal for both large and small-scale operations.
Whether you are looking to produce automatic extrusion blow molding machine or auto deflashing blow molding machine, the MEPER MP80D is capable of meeting your demands. With a minimum order quantity of just 1 set and negotiable pricing, this machine offers affordability and accessibility for businesses of all sizes.
When you choose the MEPER MP80D, you can expect timely delivery within 25-35 work days, standard packaging for safe transportation, and flexible payment terms including L/C and T/T. With a supply ability of 100 sets per month and a machine weight of 8.2 tons, this extrusion molding machine is built to support your production needs effectively and efficiently.
