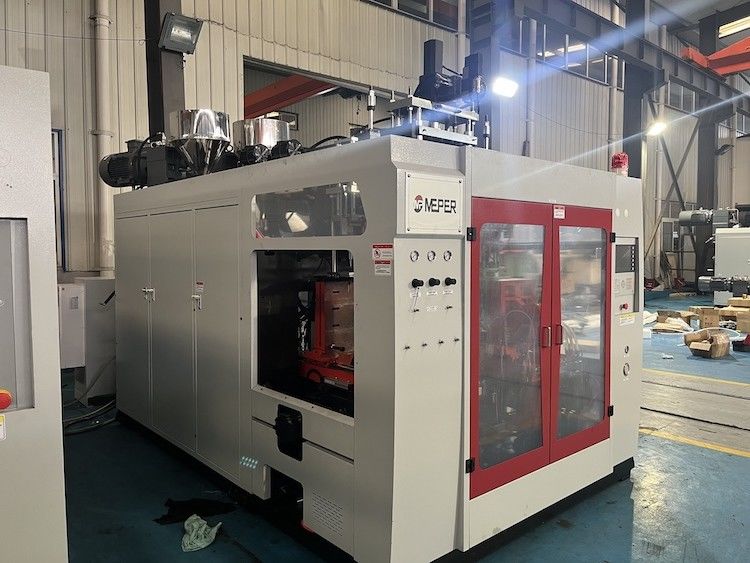

HDPE PE PP PVC PA Automatic Extrusion Blow Molding Machine 90 Plasticizing Ability

Product Description:

The MP plastic blow molding machine is designed for processing a wide range of plastic hollow products with high molecular weight. It is capable of producing hollow products ranging from 5 milliliters to 100 liters. These products encompass items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. The machine is versatile in that it can handle various materials like PE, PP, PVC, PA, PC, PS, and EVA, while ensuring a flawless production process.

With its specialization in manufacturing plastic hollow products, the MP plastic blow molding machine offers immense flexibility in production capability. It caters to a diverse array of hollow products falling within a broad volume range, making it suitable for numerous applications across industries. Whether it's bottles for beverages, pots for plants, or barrels for storage purposes, this machine delivers top-notch results across different product categories.

Features:

a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably, and equably.

b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.

c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.

d) Improved design of hydraulic oil loop. Power saving, rapid and stable.

e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.

f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation, and data memory of 40 sets of moulds.

g) Three operation modes - “Manual”, “Semi Auto”, “Full Auto”, are allowed to select.

h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.

i) This machine has two blowing functions of straight cutting and oblique cutting.

Technical Parameters:

Basic Specifications:

• Applicable materials: PE, PP, PVC, PA...
• Max product volume: 10 L
• Number of heads: 1, 2, 3, 4
• Machine dimension (LxWxH): 4x2.3x2.5 meters
• Machine weight: 8.2 tons

Mould Clamping System:

• Mould clamping force: 150 KN
• Platen opening strokes: 220-620 mm
• Plate stroke: 540 mm
• Max mould sizes (WxH): 520x460 mm

Extrusion System:

• Screw diameter: 80 mm
• Screw slenderness ratio: 24 L/D
• Plasticizing ability (HDPE): 90 KG/H
• Screw heating stage/zone: 4 zones
• Screw heating power: 15.85 KW
• Screw fan power: 0.28 KW
• Extrusion motor power: 30 KW

Head:

• Head heating stage/zone: 3 zones
• Head heating power: 10 KW

Energy Consumption:

• Total machine power: 80 KW
• Oil motor power: 18.7 KW
• Air pressure: 0.6-0.8 MPA
• Compression air volume: 1.5 M3/min
• Cooling water volume: 40 L/min

Applications:

When considering the application occasions and scenarios for the MEPER MP80D Plastic Extrusion Molding Machine, its versatility and efficiency make it suitable for a wide range of industries and production needs.

With its origin in China and CE/ISO9001:2008 certifications, this extrusion molding machine offers reliability and quality assurance for various manufacturing processes. The minimum order quantity of 1 set and negotiable pricing make it accessible for both small-scale and large-scale production facilities.

The MEPER MP80D is designed to handle materials such as PE, PP, PVC, and PA, making it a versatile solution for different plastic extrusion needs. Its plasticizing ability of 90 for HDPE ensures efficient and consistent performance during operation.

Equipped with 1 to 4 heads and a screw diameter of 80mm with a slenderness ratio of 24, this machine offers flexibility in production capabilities and output options. The supply ability of 100 sets per month ensures timely delivery to meet production demands.

The standard packaging and delivery time of 25-35 work days provide convenience and reliability in receiving the machine. Accepted payment terms include L/C and T/T, offering flexibility to customers in completing transactions.

In conclusion, the MEPER MP80D Plastic Extrusion Molding Machine is suitable for a variety of application scenarios across industries that require efficient and high-quality extrusion molding processes. Its features and specifications make it a valuable asset for manufacturers looking to enhance their production capabilities.
