| Container Capacity: | 2L-10L | Applicable Material: | HDPE PP |
|---|---|---|---|
| Auto Defleshing System: | Yes | Parison System: | Yes |
| Products: | Plastic Medical Container | Mode: | MP80D |
| Highlight: | Medical Container HDPE Blow Moulding Machine,2L HDPE Bottle Blowing Machine,MP80D HDPE Blow Moulding Machine |
||

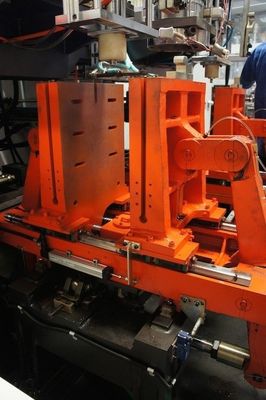

HDPE Blow Moulding Machine With CE Standard for medical container
Introduction:
MP80D is specifically designed for making bottles from 10ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP80D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80D is updated to be one of the most reliable and popular model in the world.
Meet CE standard for European market.
European machine qualiy with China machine price
Preparation before commissioning
2.2.1 Cooling water pipeline: Connect all inlet pipelines. Connect mould cooling pipeline with cooler pipelines tightly. Pipelines for idle should be sealed for fear of leakage.
2.1.2 Air pipeline installation: Connect compressed air pipeline with inlets of air source handling parts tightly.
2.1.3 Open oil inlet of air filter and pour hydraulic oil. Watch oil height and keep it to 70-90%. Selection of hydraulic oil: Do select oil for this machine as required. No mechanical oil can be used as hydraulic media.
Recommended products for our plastic extrusion hollow blowing molding machines:
Machine specification:
| MP80D | ||
| Material | PE,PP,(PVC,PA)OPTION | |
| Max container capacity | L | 10 |
| Number of die | set | 1,2,3,4,6,8 |
| machine Dimension(L×W×H) | M | 3.82×2.54×2.5 |
| Total weight | ton | 4.5 |
| Clamping force | kn | 120 |
| Platen opening stroks | mm | 220-620 |
| Stroke of mould board | mm | 400 |
| Platen size | mm | 420×520 |
| Max mould size(W×H) | mm | 480×500 |
| Mould thinkness | mm | 225-300 |
| Screw diameter | mm | 80 |
| Screw L/D ratio | L/D | 24 |
| Plasticising capacity | kg/h | 85 |
| Number of heating zone | zone | 4 |
| Extruder heating power | kw | 18.5 |
| Power of screw-bar machine | kw | 0.22 |
| Extruder driving power | kw | 30 |
| Number of heating zone | zone | 2 |
| Power of die heating | kw | 13.5 |
| Max die-pin diameter | mm | 180 |
| General power of machine | kw | 73.7 |
| Power of the electric motor of oil pump | kw | 9.5 |
| Air pressure | Mpa | 0.6-0.8 |
| Average energy consumption | kw | 35 |
| Using quantity of compression air | m3/min | 1.5-2.5 |
| Using quantity of cooling water | m3/min | 3.0-5.0 |
