Product Details:
Payment & Shipping Terms:
|
| Container Capacity: | 10L | Applicable Material: | HDPE LDPE |
|---|---|---|---|
| Auto Defleshing System: | Yes | Parison System: | Yes |
| Products: | Plastic Water Tank | Mode: | MP80D |
| High Light: | 10L Water Tank HDPE Moulding Machine,Hydraulic Driven HDPE Blow Moulding Machine,Plastic HDPE Molding Machine |
||

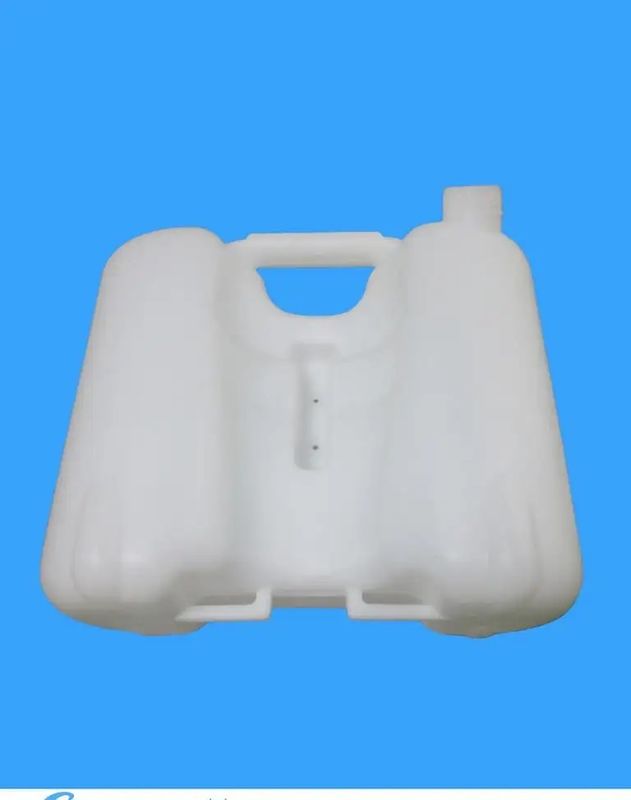

HDPE Blow Moulding Machine With CE Standard for 10 L water tank
Introduction:

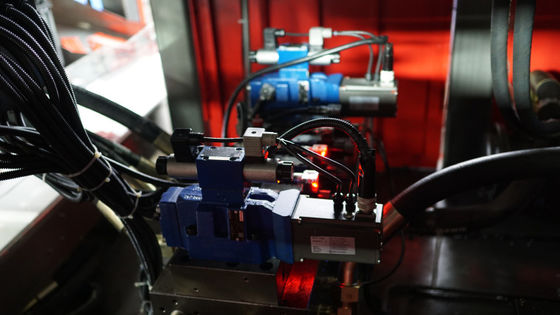

MP80D is specifically designed for making bottles from 10ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP80D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80D is updated to be one of the most reliable and popular model in the world.
Meet CE standard for European market.
European machine qualiy with China machine price
1. System structure: It is made up of air compressor( to be equipped by user), air source handling parts, electromagnetic valve, pressure regulating valve, throttle valve, air pipe, pressure gauge, conncetor and cylinder.
2. System principle: Air, delivered from air compressor, passes stop valve, arrives air source handling parts, and reaches pressure gauge, solenoid valve plate and head blowing regulating valve assigned by four-way connector.
All the process are controlled by electromagnetic valves.
Machine specification:
| MP80D | ||
| Material | PE,PP,(PVC,PA)OPTION | |
| Max container capacity | L | 10 |
| Number of die | set | 1,2,3,4,6,8 |
| machine Dimension(L×W×H) | M | 3.82×2.54×2.5 |
| Total weight | ton | 4.5 |
| Clamping force | kn | 120 |
| Platen opening stroks | mm | 220-620 |
| Stroke of mould board | mm | 400 |
| Platen size | mm | 420×520 |
| Max mould size(W×H) | mm | 480×500 |
| Mould thinkness | mm | 225-300 |
| Screw diameter | mm | 80 |
| Screw L/D ratio | L/D | 24 |
| Plasticising capacity | kg/h | 85 |
| Number of heating zone | zone | 4 |
| Extruder heating power | kw | 18.5 |
| Power of screw-bar machine | kw | 0.22 |
| Extruder driving power | kw | 30 |
| Number of heating zone | zone | 2 |
| Power of die heating | kw | 13.5 |
| Max die-pin diameter | mm | 180 |
| General power of machine | kw | 73.7 |
| Power of the electric motor of oil pump | kw | 9.5 |
| Air pressure | Mpa | 0.6-0.8 |
| Average energy consumption | kw | 35 |
| Using quantity of compression air | m3/min | 1.5-2.5 |
| Using quantity of cooling water | m3/min | 3.0-5.0 |
