| Certification: | ISO | Product: | Chemical Bottle |
|---|---|---|---|
| Feature: | Three Layer | Brand: | MEPER |
| USE: | Blow Machine | Capacity: | 5 Gallon Or 20L |
| High Light: | plastic bottle blow molding machine,blow molding equipment |
||

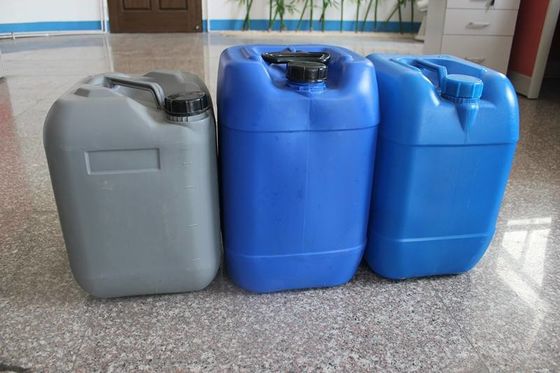

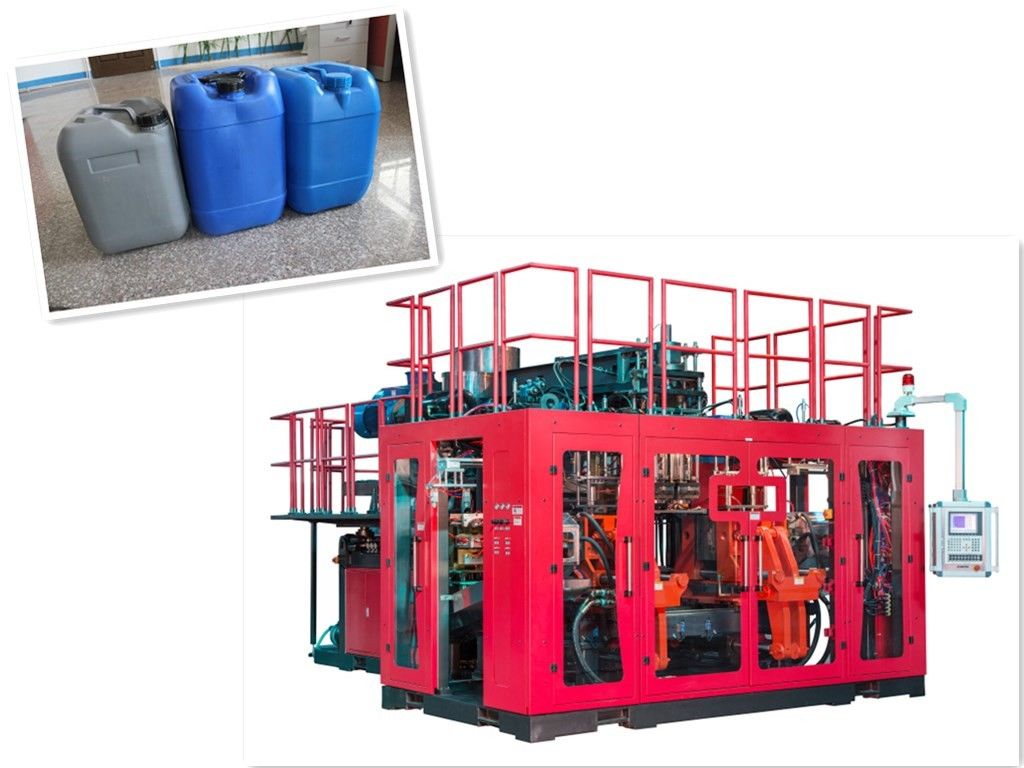

3 Layer 5 gallon or 20L Fully Automatic Blow Moulding Machine MP100FD for water tank
3 layer
Out layer virgin material
Middle layer recycle material
Inner layer virgin material
European machine quality and China machine price.
| Parameters | MP100FD |
| Material | PE PP PVC PA… |
| Max container capacity | 5 gallon, 20L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 5.2x6.5x3.1m |
| Total weight | 15ton |
| Clamping force | 200kN |
| Platen openning stokes | 240-640mm |
| Toggle stokes | 720mm |
| Max mould size(WxH) | 670x430mm |
| Screw diameter | 100mm |
| Screw L/D ratio | 26 L/D |
| (HDPE) Plasticizing capacity | 218kg/h |
| Screw heating zone | 4 zone |
| Screw heating power | 17kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 55kw |
| Die head heating zone | 10 zone |
| Power of die heating | 12.8kw |
| Total power of machine | 136kw |
| Power of oil pump motor | 31kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 95kw |
| Consumption compression air | 3.2m³/min |
| Consumption cooling water | 110L/min |
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
