Ningbo Qiming Machinery Manufacturing Co., Ltd.
Home ProductsHDPE Blow Molding Machine

Lubricants 80mm Dia Hdpe Bottle Blowing Machine Plc

China Ningbo Qiming Machinery Manufacturing Co., Ltd. certification
China Ningbo Qiming Machinery Manufacturing Co., Ltd. certification
The biggest advantage of Meper machine is very stable without any worries. Some of our machines have been in use for 10 years and are still in normal use. The meper machine is great.

—— JOSE (BRAZIL)

I like Meper machines because of their service. They always solve problems for us in time, so I highly recommend Meper machine.

—— KUMAR(INDIA)

Meper machine is very good. Although our country is very hot, the machines work very steadily.

—— MOHAMMED( SAUDI ARABIA)

Meper machine is very good. Хорошо

—— IWANOWSKI(RUSSIA)

Meper ,good machine, good service.

—— JOHN( SOUTH AFRICA)

I'm Online Chat Now

Lubricants 80mm Dia Hdpe Bottle Blowing Machine Plc

Lubricants 80mm Dia Hdpe Bottle Blowing Machine Plc
Lubricants 80mm Dia Hdpe Bottle Blowing Machine Plc

Large Image :  Lubricants 80mm Dia Hdpe Bottle Blowing Machine Plc

Product Details:
Place of Origin: CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP80FS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation
Packaging Details: Standard export package wooden pallet(standard) wooden case(optional)
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Container Capacity: Customize Size Applicable Material: HDPE LDPE PP
Product: Lubricants Bottle Automatic: Yes
PLC: Techmation
High Light:

80mm dia hdpe bottle blowing machine

,

lubricants hdpe bottle blowing machine plc

,

80mm dia hdpe blow molding machine

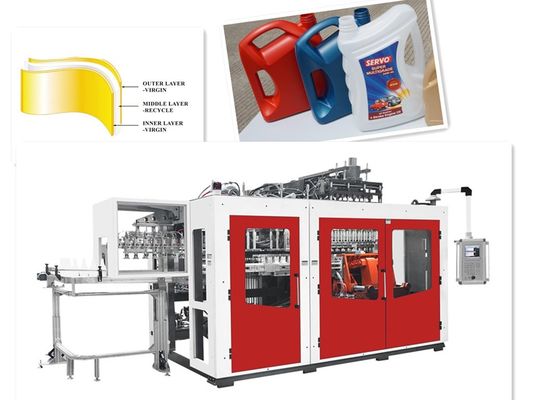

three layer Automatic HDPE Blow Molding Machine for lubricants bottle with recycle material​



       Features :

  • Suitable for making plastic products for 3 layer or 4 layer or 3 gallon or 4 gallon detergent container

  • Die Head is torpedo design with special flow channel for swift and complete mergence of plastic material inside and to provide better plasticized feature.
  •
  • Single view strip head
  •
  • Parison thickness micro control system is optional for product best weight and quality control
  •
  • Die Mouth Extrusion Adjustment by 4-point adjustment,parison to be straight and view strip width and position stable.
  •
  • High-melting Screw design by 38CrMoali material,Bimentallic aolly material as optional for recycle material.
  •
  • electric-heated Hot Cutter for cutting the parison with micro adjustment ,more accurate in blowing and reduce the scrap material percentage.
  •
  • copper bush using for all the toggle parts,less friction heat comes and longer life
  •
  • Air filter for water and oil,protect the pheumatic cylinder
  •
  • B&R PLC ,easy operating with 8 language optional:ENGLISH,SPANISH,CHINESE,FRANCE,RUSSIAN,TURKISH,PORTUGUESE
  •
  • Europe machine quality,China machine price.



Parameters MP80FS
Material PE PP PVC PA…
Max container capacity 10L
Number of die 1,2,3,4,6
Machine Dimension(LxWxH) 3.7x4.7x2.9m
Total weight 10.5ton
Clamping force 200kN
Platen openning stokes 240-560mm
Toggle stokes 800mm
Max mould size(WxH) 750x420mm
Screw diameter 80mm
Screw L/D ratio 24 L/D
(HDPE) Plasticizing capacity 108kg/h
Screw heating zone 4 zone
Screw heating power 15.6kw
Screw fan power 0.14kw
Extrusion motor power 30kw
Die head heating zone 12 zone
Power of die heating 17kw
Total power of machine 89kw
Power of oil pump motor 31kw
Air pressure 0.6-0.8 Mpa
Average energy consumption 60kw
Consumption compression air 1.5m³/min
Consumption cooling water 60L/min



STANDARD CONFIGURATION(EXPORT)
control sytem
computer(PLC&touchable screen) TECHMATION TAIWAN
rely LG KOREA
Linear transducer Novetechinic GERMANY
stroke switch SCHNERIDER GERMANY
extrusion parts
screw and barrel JINXING CHINA
gear box JIANGWEI CHINA
inverter DELTA TAIWAN
pneumatic system
press adjustment valve AIRTAC TAIWAN
cylinder AIRTAC TAIWAN
throttle valve AIRTAC TAIWAN
pneumatic valve REXROTH GERMANY
hydraulic system
oil pump VICKERS U.S.A
hydraulic valve VICKERS U.S.A
proportional valve HNC TAIWAN
seal ring NOK JAPAN
Lubrication

Automatic














Contact Details
Ningbo Qiming Machinery Manufacturing Co., Ltd.

Contact Person: Levi.Li

Tel: 86-13396686968

Send your inquiry directly to us (0 / 3000)
