|Container Capacity:||5L||Applicable Material:||HDPE LDPE PP|
|Auto Defleshing System:||Yes||Parison System:||Yes|
plastic bottle blow molding machine,
fully automatic blow moulding machine

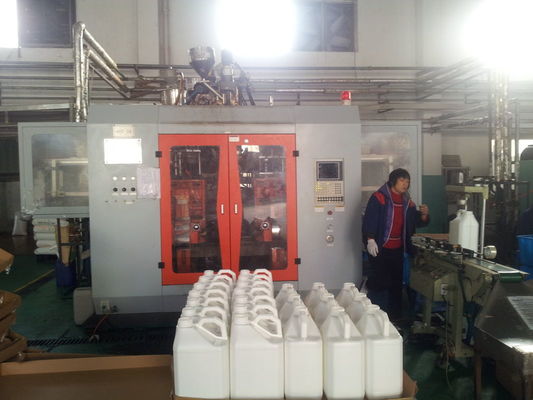

5L Lubricant Container HDPE Blow Moulding Machine MP80D with CE standard
MP80D is specifically designed for making bottles from 10ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP80D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80D is updated to be one of the most reliable and popular model in the world.
Meet CE standard for European market.
European machine qualiy with China machine price/
1. Most important for a good EBM machine is the action system and the extrusion system.
we'r using powerful hydraulic system design with imported valve and pump for stable action
Adopt China famous brand Gearbox along with Delta extrusion motor ,make sure machine runs continiously,long life.
2. Heavy and stong structure,make sure machine works more faster and stable.
3. Special protection for the machine and people
Sensor in the operating door: if anybody enter the machine,the electricity conneced with the machine will automatic cut down.
Temperature interlock system:When the material inside the barrel is not reaching the setting temperature,the extrusion motor can never start.that will help the screw and head of the machine.
4. Special care for different countries.
we offer some special design for different countries,in order to matching best performance.
5. Easy die head dis-assemble and assemble
6. Defleshing function included
|Max container capacity||L||10|
|Number of die||set||1,2,3,4,6,8|
|Platen opening stroks||mm||220-620|
|Stroke of mould board||mm||400|
|Max mould size(W×H)||mm||480×500|
|Screw L/D ratio||L/D||24|
|Number of heating zone||zone||4|
|Extruder heating power||kw||18.5|
|Power of screw-bar machine||kw||0.22|
|Extruder driving power||kw||30|
|Number of heating zone||zone||2|
|Power of die heating||kw||13.5|
|Max die-pin diameter||mm||180|
|General power of machine||kw||73.7|
|Power of the electric motor of oil pump||kw||9.5|
|Average energy consumption||kw||35|
|Using quantity of compression air||m3/min||1.5-2.5|
|Using quantity of cooling water||m3/min||3.0-5.0|
5L Lubricants container HDPE blow molding machine with defleshing system
Hydraulic system design extusion blow molding machine MP80 is suitable for Producing Medium Size Bottles up to 10L of Various Materials, and Equipped with Single Die Head, Double Die Heads, Three Die Heads, Four Die Heads,Six Die heads.
Adopt four leaders point support structure, it can accept heavy moulds. With parison control system ,it is especially to make bottles below 10 liter .
