|Container Capacity:||50ML-4L||Applicable Material:||HDPE LDPE PP PETG PVC PC PA EVOH EPET|
|Station:||Double Or Single||Die Head:||1,2,3,4,6|
automatic blow moulding machine,
plastic blow moulding machine

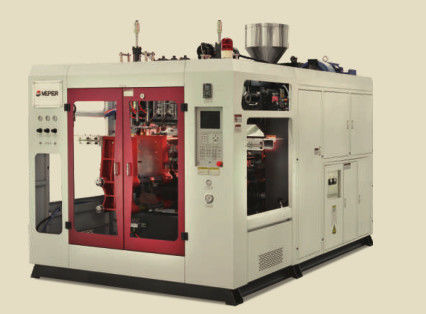

50ML-4L High Speed Plastic Bottle Blow Molding Machine MP70D for industrial drums
MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system. MP70D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70D is updated to be one of the most reliable and popular model in the world.
EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.
CLAMPING SYSTEM: HIGHLY DEVELOPED TIE BARLESS DESIGN
MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP70D is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
|MP70D Double station blow molder with horizontal linear mould shuttle|
|Linear mould stroke||A||450|
|Dry Cycle||7 sec.|
|Centre Distance||2x2 fold||160|
|Screw L/D Ratio||L/D||24||24||24|
|Extruder Inverter Power||kW||18.5||22||30|
|Extruder Moter Power||kW||18.5||22||30|
|Srew Heating Power||kW||12.7||14.4||15.85|
|Oil pump Motor Power||kW||9.5||9.5||9.5|
|Total Power of Machine||kW||49.14||54.34||63.79|
|Air Requirement approx||m3/min||1.2||1.2||1.2|
|Air Working Pressure||Mpa||0.6-0.8||0.6-0.8||0.6-0.8|
|Consumption Cooling Water||L/min||40||40||40|
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
