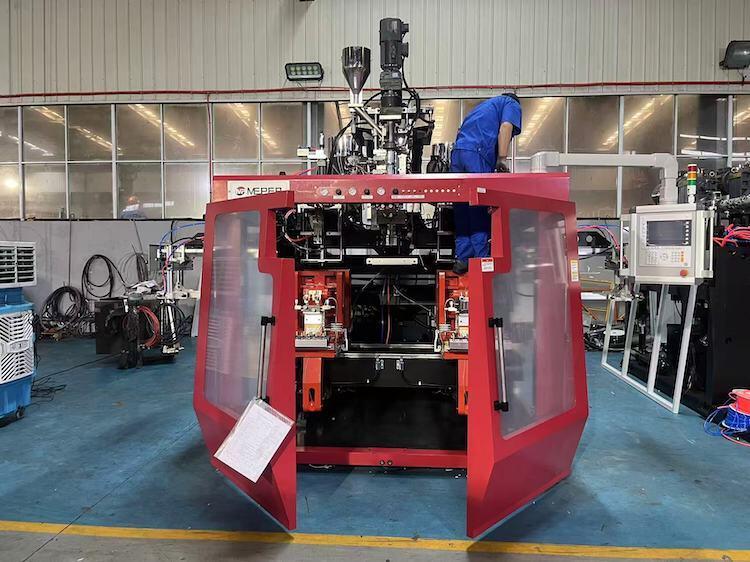

MP100FD Automatic Extrusion Blow Molding Machine

The MP100FD Extrusion Blow Molding Machine is a fully automatic plastic hollow blow molding system engineered for high-efficiency production of bottles, containers, barrels, jerry cans, toys, automotive ducts, and industrial packaging products ranging from 5L to 100L. Built with a robust 80mm screw extruder, multi-die-head configurability, and a PLC-based precision control system, this machine delivers consistent wall thickness, excellent surface finish, and reliable cycle times across HDPE, PP, PE, and other thermoplastics.

• Multi-Die-Head Configuration: Supports single, double, and four die-head setups for flexible production output
• PLC Touch Screen Control: Integrated Schneider PLC with color HMI touch screen for intuitive parameter setting
• High-Efficiency Extruder: 80mm nitrided screw with 25:1 L/D ratio ensures thorough plasticizing
• Energy-Saving Hydraulic System: Servo-driven hydraulic pump reduces energy consumption by up to 30%
• Closed-Loop Cooling System: Integrated water chiller circuit maintains optimal temperatures
• Automatic Deflashing: Pneumatic cutter system trims flash automatically post-molding
• Safety Interlocks: Full-enclosure safety doors with electromagnetic interlocks meet CE safety standards

• Packaging: HDPE/PP bottles, jerry cans, drums, and chemical containers from 5L to 100L
• Automotive: Air ducts, washer fluid reservoirs, coolant expansion tanks, and blow-molded ducting components
• Consumer Goods: Storage bins, water tanks, cooler boxes, floating docks, and outdoor furniture components
• Toys & Sports: Large blow-molded toys, kayaks, playground equipment, and sports training aids
• Industrial: Pallet tanks, IBC containers, traffic barriers, and material handling bins

The MP100FD operates on a continuous extrusion blow molding principle. Plastic raw material is fed through the hopper into the 80mm barrier screw, where it is plasticized and homogenized under controlled barrel temperatures. The molten parison is extruded through the accumulator die head into the open mold. Upon closing, compressed air inflates the parison against the cooled mold cavity walls. After cooling and solidification, the mold opens, and the finished product is ejected with automatic flash trimming. All process parameters including temperature zones, extrusion speed, blowing pressure, cooling time, and clamp force are precisely controlled through the PLC system with recipe storage capability for repeatable production quality.

• Flexible Production: Interchangeable die heads adapt to varying output requirements
• Consistent Quality: Closed-loop parison control ensures uniform product wall distribution
• Lower Operating Cost: Servo hydraulic system reduces energy consumption by 25-30%
• Fast Mold Change: Quick mold clamping system enables changeover in under 30 minutes
• Global Compliance: CE certified with full safety guarding for export markets
• After-Sales Support: 12-month warranty with remote technical support and spare parts availability

Each MP100FD machine is securely packed in a fumigation-free export-grade wooden case with reinforced steel framing, moisture-barrier film, and anti-rust VCI protection for all machined surfaces. Standard delivery time is 30-45 working days after order confirmation and deposit receipt. Installation and operator training are available on-site or via remote video guidance.

With over 15 years of experience in blow molding equipment manufacturing, our factory delivers precision-engineered machines backed by ISO 9001:2015 quality certification. Every MP100FD undergoes a comprehensive pre-delivery inspection including 48-hour continuous dry-run testing and sample product qualification. Our engineering team provides complete mold matching support and process optimization to ensure you achieve target production output from day one. Contact our sales team today with your product drawings or samples, and we will recommend the optimal configuration for your specific application.
